7-7 Measure Menus
Press the Measure function hard key (main menu key) to display the Measure menu. The
Active Display soft key appears only when the Display Type is Dual or Overlay.
Measure Menu Group (Field View)
Measure Menu – Single

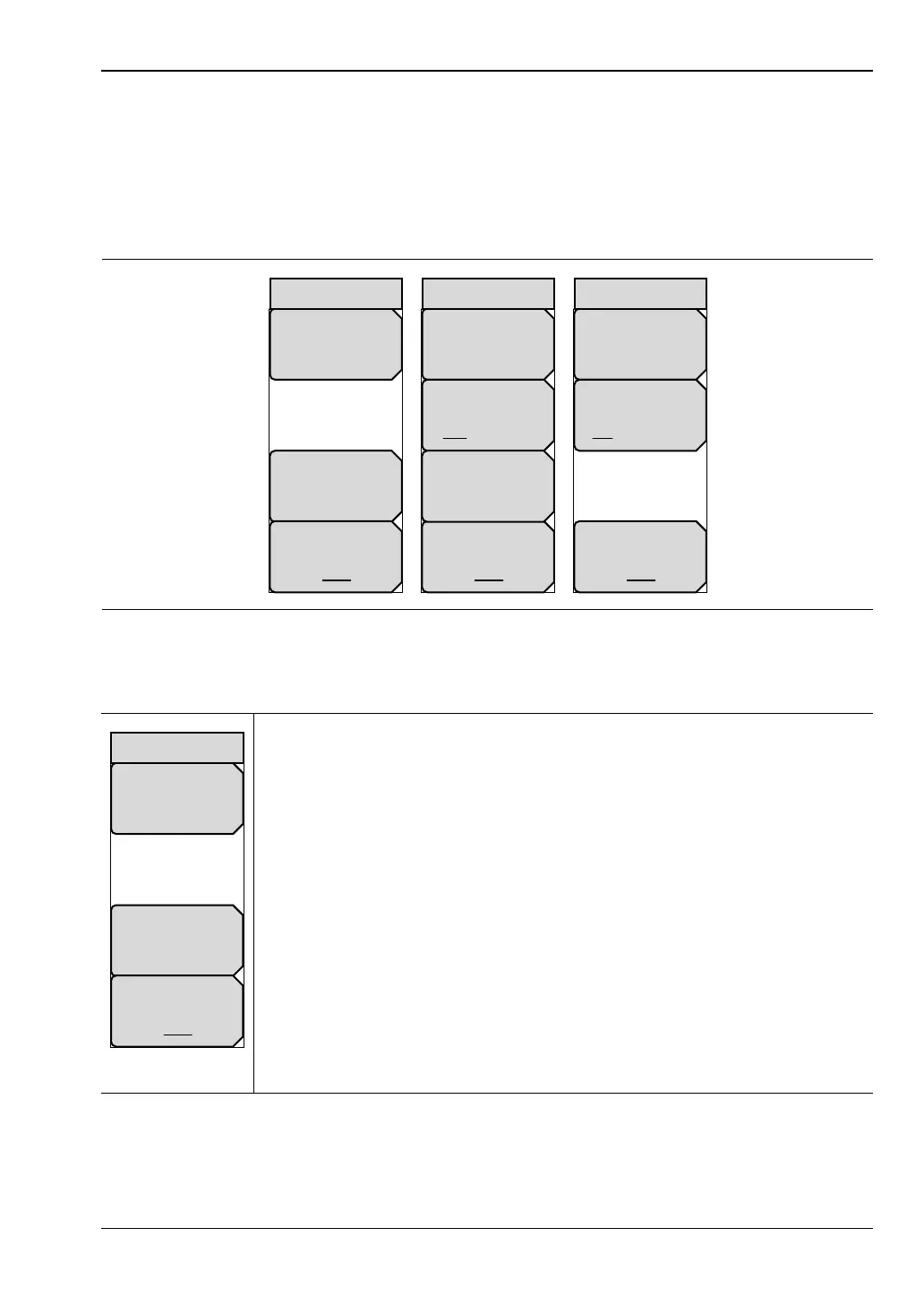

Figure 7-15. Field View Measure Menu Group
Display Type: Press this soft key to open the Display Type list box and
choose a display type. The choices are:
Single, Dual, Overlay.
Measurement Type: Press this soft key to open the Graph Type Selector list
box and choose a graph type. Refer to the list in Section 5-4 “Graph Type
Selector List Box” on page 5-4. The soft key in this illustration is displaying
1-Port Smith, which is one of the measurement types in the list box.
IFBW: Press this soft key to open a list box and set the Intermediate
Frequency bandwidth. The default is 10 kHz for the MS20xxC series
instruments and 1 kHz for the MS20xxB and S412E series instruments.
Select 10 Hz for the maximum dynamic range; select 100 kHz for the
maximum speed.
Figure 7-16. Field View Measure Menu – Single
Display Type
Single
Measure
Measurement Type
DTF Return Loss
IFBW
10kHz 1kHz 10Hz
IFBW
10kHz 1kHz 10Hz
IFBW
10kHz 1kHz 10Hz
Active Display
TR1 TR2
Display Type
Dual
Measure
Measurement Type
DTF VSWR
Active Display
Top Bottom
Display Type
Overlay
Measure
Display Type
Single
Measure
Measurement Type
DTF Return Loss
IFBW
10kHz 1kHz 10Hz
