12-2 Procedure For Using Balanced Ports Balanced Ports, Option 77
12-2 PN: 10580-00289 Rev. K Vector Network Analyzer MG
Markers, limits, and all other features that can be used with the standard S-parameters also
can be used with the balanced or differential S-parameters.
With Option 77, the S-parameter submenu uses the selection list box instead of the standard
soft keys for choosing the desired S-parameter, even for non-differential S-parameters.

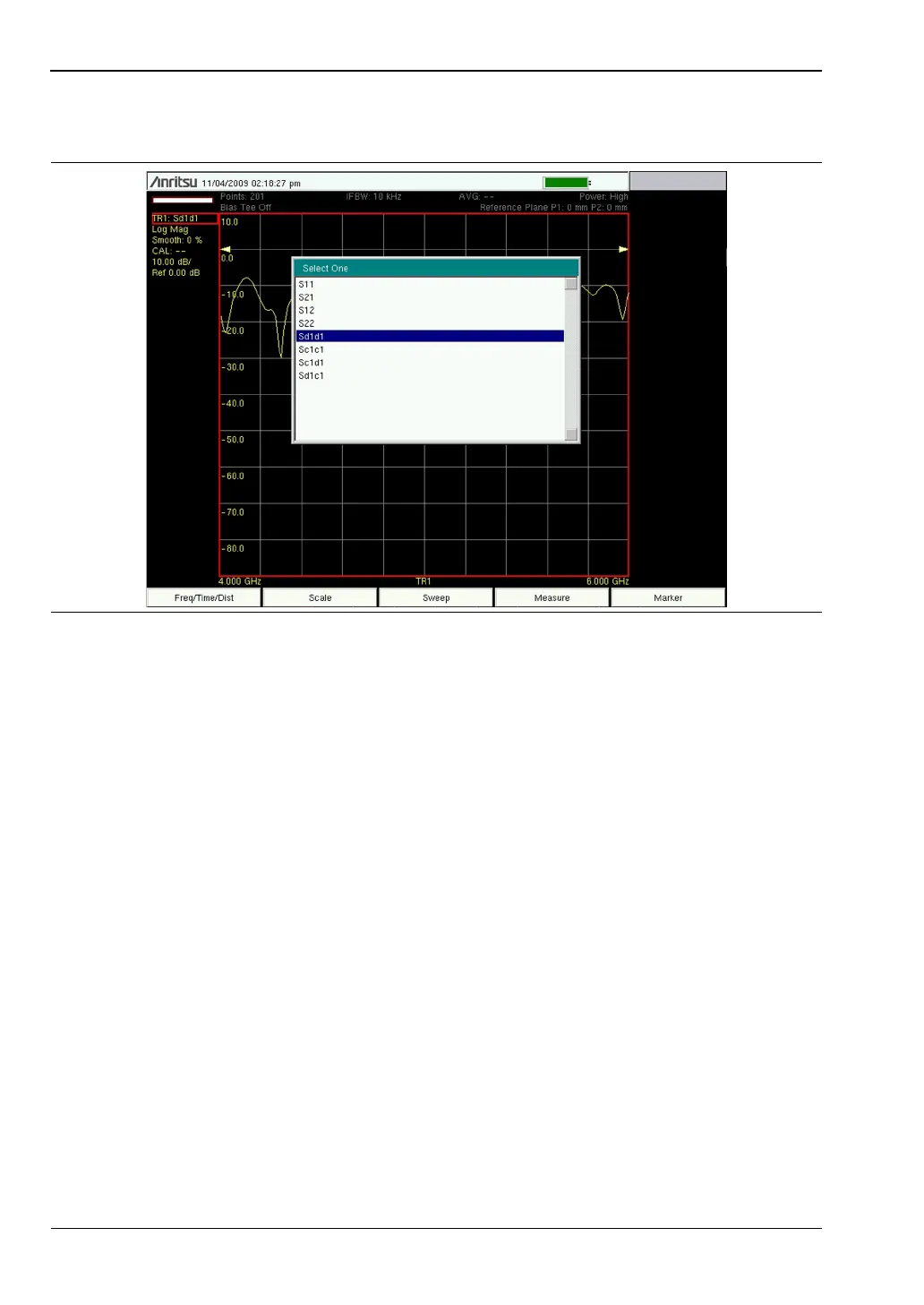

Figure 12-1. Differential S-Parameter Selection List Box (no soft key menu)
To Next Page
