Field Measurements 5-8 Cable Loss
Vector Network Analyzer MG PN: 10580-00289 Rev. K 5-13
10. Connect the test port extension cable to the Transmission Line to begin the Cable Loss
measurement. The example below shows a cable loss measurement in the WiFi band.
Average cable loss is calculated and displayed at the top of the graticule.
11. Use the File menu to save the measurement. Refer to the file management instructions
in the user guide for your instrument.

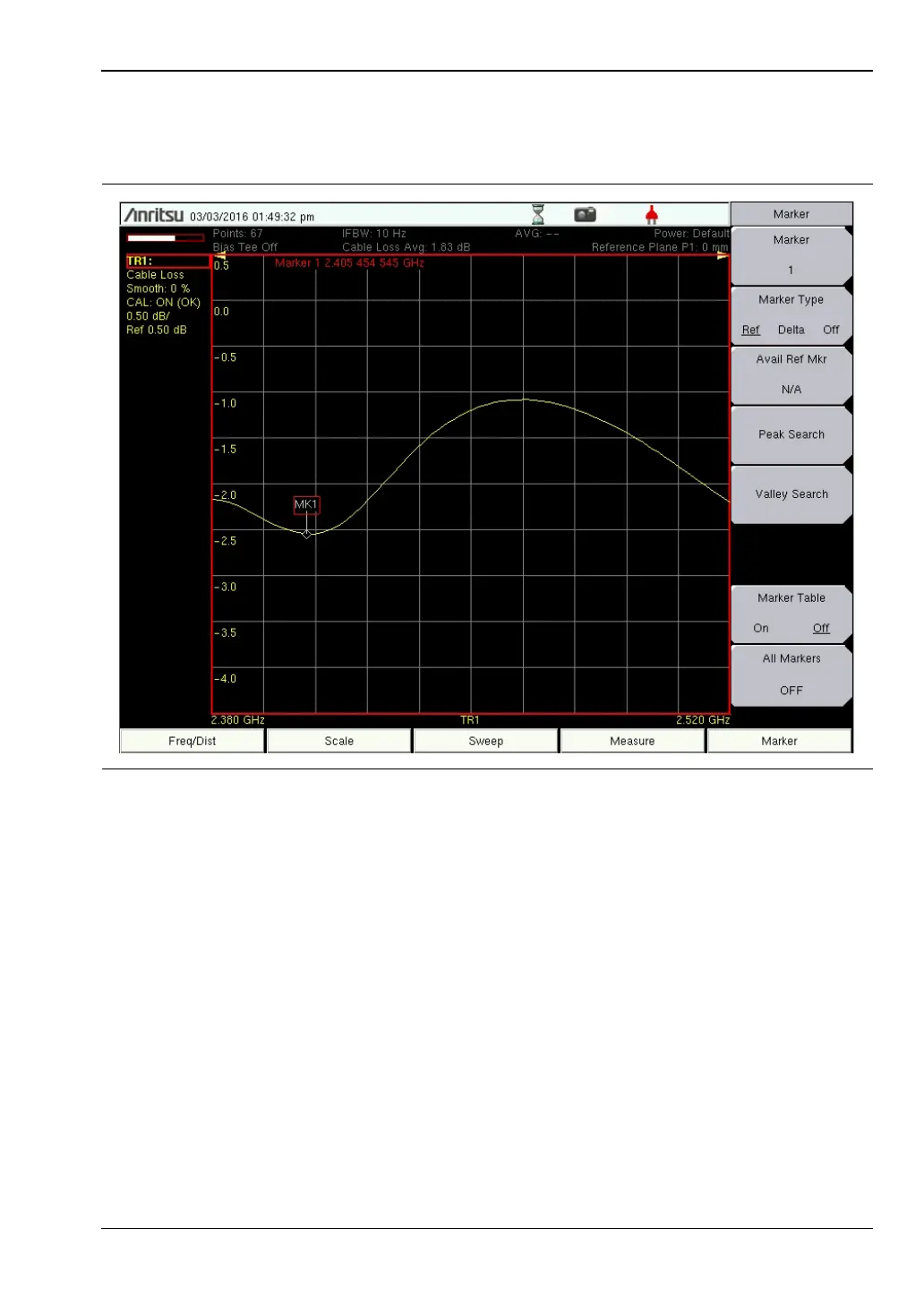

Figure 5-7. Display Type Single – Cable Loss
