Field Measurements 5-12 Log Mag Display Types
Vector Network Analyzer MG PN: 10580-00289 Rev. K 5-27
The example in this figure may not match the display on your instrument.

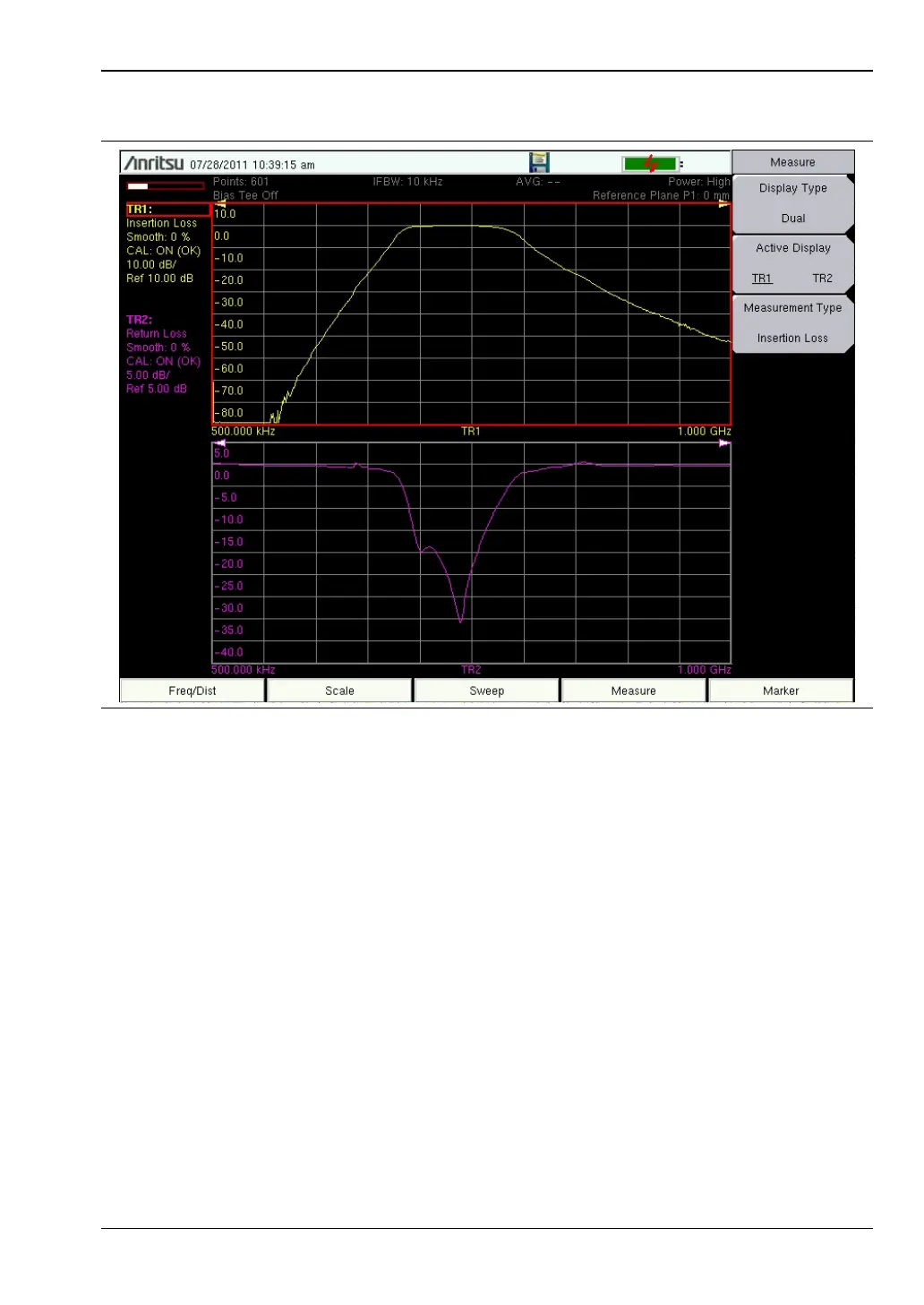

Figure 5-14. Filter Tuning, Log Mag – Display Type Dual – Insertion Loss and Return Loss
