5.2.5.2. MT8821C
[Procedure using GUI]

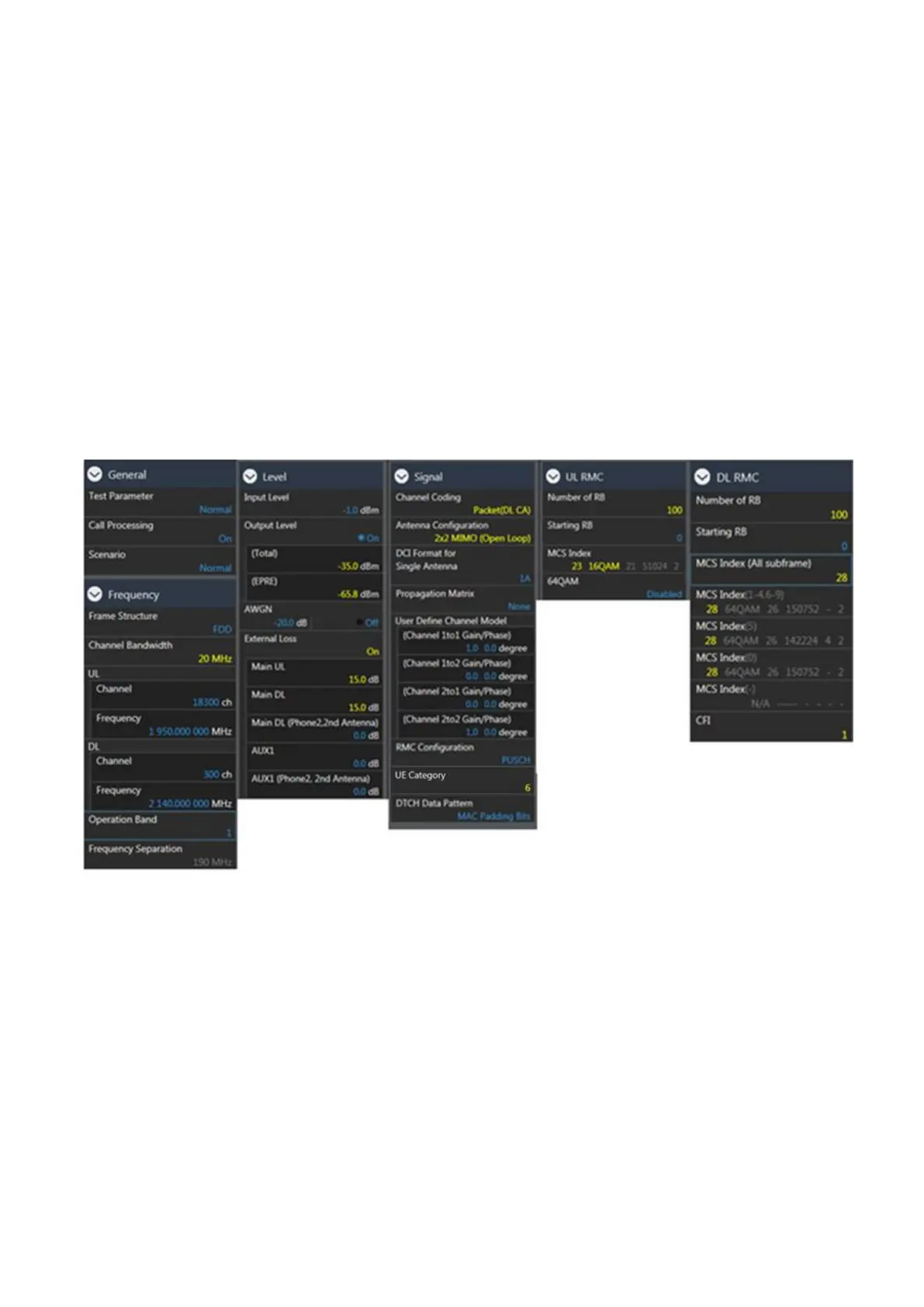

Set each parameter at Common Parameter (PCC/SCC-1), Call Processing Parameter, and Fundamental
Measurement Parameter.
Common Parameter – PCC
1. Execute Preset to set the default parameters.
2. Set Common Parameter - Call Processing to On.
3. Set Common Parameter – Frequency - Channel Bandwidth to 20 MHz.
4. Set Common Parameter - Frequency - UL Channel and DL Channel to 18300 and 300, respectively.
5. Set Common Parameter - Signal - Channel Coding to Packet (DL CA).
6. Set Common Parameter - Signal - Antenna Configuration to 2x2MIMO (Open Loop).
7. Set Common Parameter - Level - Output Level(EPRE) to –70.0 dBm/15 kHz.
8. Set Common Parameter - UL RMC - Number of RB to 100.
9. Set Common Parameter - UL RMC - MCS Index to 23.
10. Set Common Parameter - DL RMC - Number of RB to 100, and Common Parameter - DL RMC - Starting
RB to 0.
11. Set All of Common Parameter - DL RMC - MCS Index1/2/3 to 28.
