2.4.1.1.3. Connection using Aux Connector
This example shows the connection diagram for 4DL/1UL CA using Aux connectors. The DL signal for PCC is output
at Aux1, that for SCC-1 is output at Aux2, that for SCC-2 is output at Aux3, and that for SCC3 is output at Aux4.

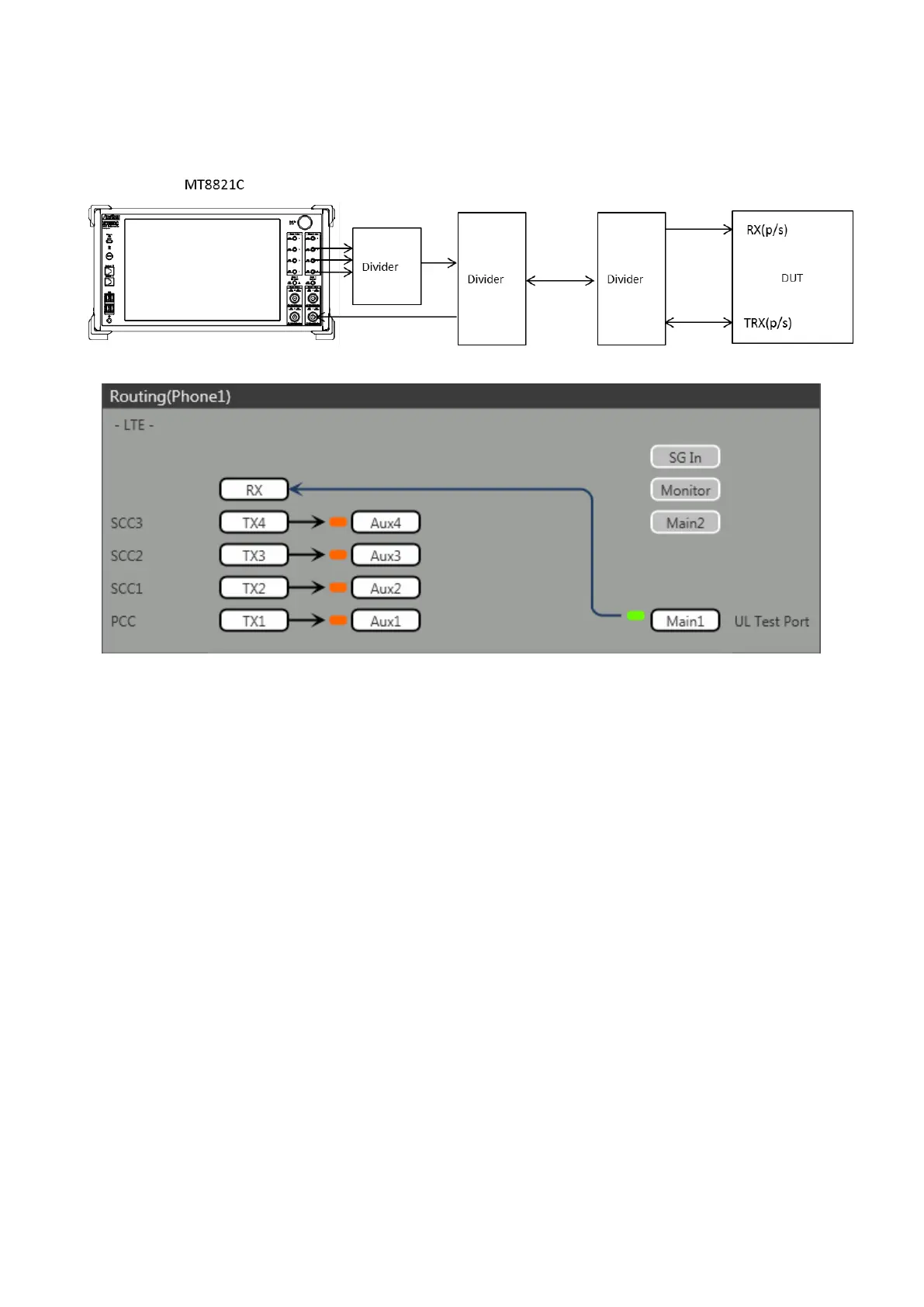

<Connection Diagram>
<Internal Routing Diagram>
Figure 2.4.1–3 Connection Diagram and Internal Routing Diagram for 4DL CA and 1UL CA, Tx and Rx Test
(MT8821C, using Aux connectors)
[Routing setting procedure]
1. Execute TXOUT 1, AUX to set the output connector System Config – Routing(Phone1) – Tx1 to Aux1.
2. Execute TXOUT 2, AUX to set the output connector System Config – Routing(Phone1) – Tx2 to Aux2.
3. Execute TXOUT 3, AUX to set the output connector System Config – Routing(Phone1) – Tx3 to Aux3.
4. Execute TXOUT 4, AUX to set the output connector System Config – Routing(Phone1) – Tx4 to Aux4.
