11.3.2 Other controller calibration
Use “Other controller” calibration to calibrate unknown or unsupported
controlled tools. The controller torque values must be entered manually. A new

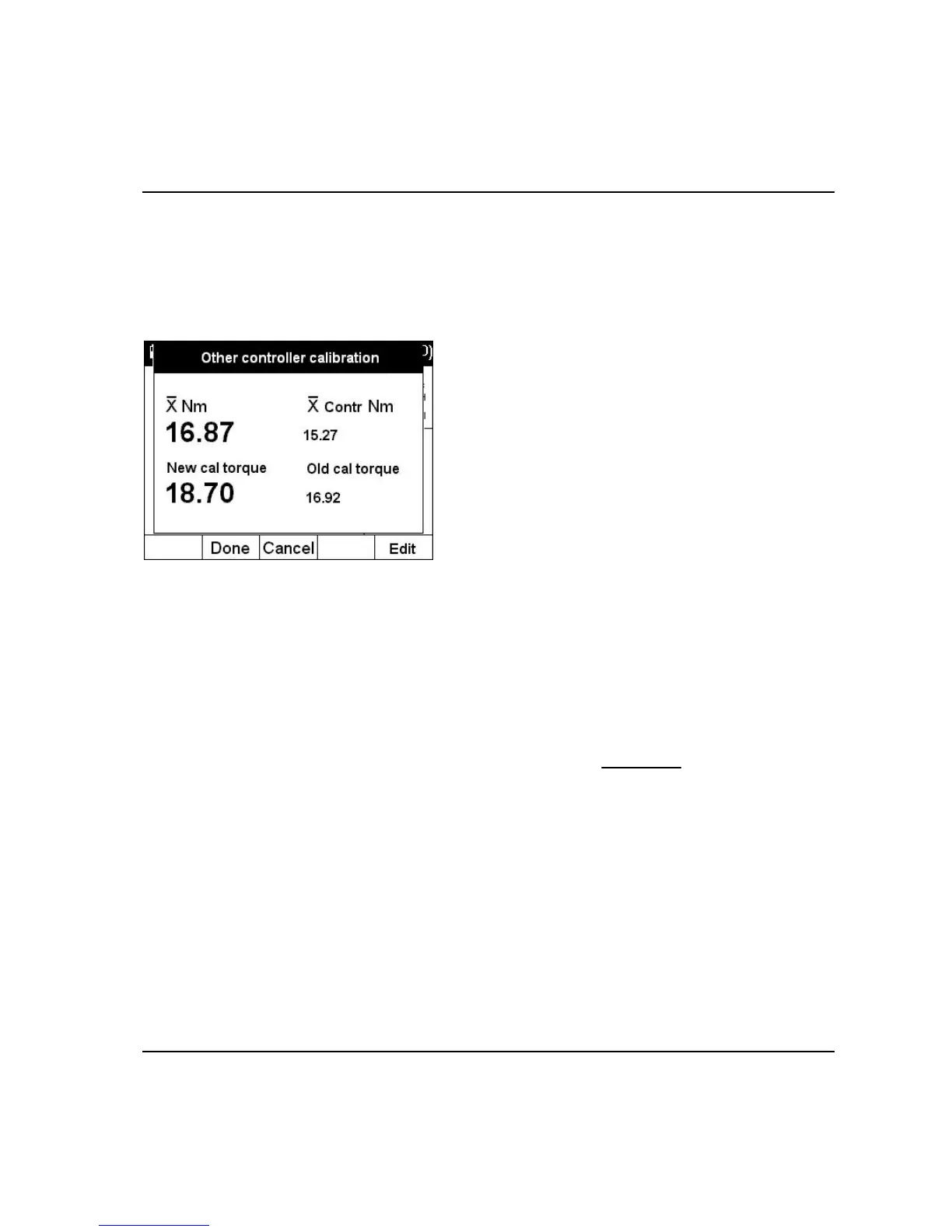

calibration torque is calculated for the controller. See the figure below.
Display text Comments
X-bar Mean torque value.
X-bar Contr. Mean controller torque. The controller torque
values are entered manually.
New cal. torque New calculated calibration torque for
controller.
Xbar
ueOldcaltorqueNewcaltorq ⋅=
Softkey Comments
Done Mark tightening operations as used in
calibration. Printout question is asked.
Cancel Close window.
Edit Change the calculated calibration torque.
