Calibration
126
11.3.4 Power Focus 2000 calibration
Use Focus 2000 / Power Focus 2000 calibration to calibrate a Focus 2000 / Power Focus
2000 controller. A new calibration torque value will be calculated. The new value can be

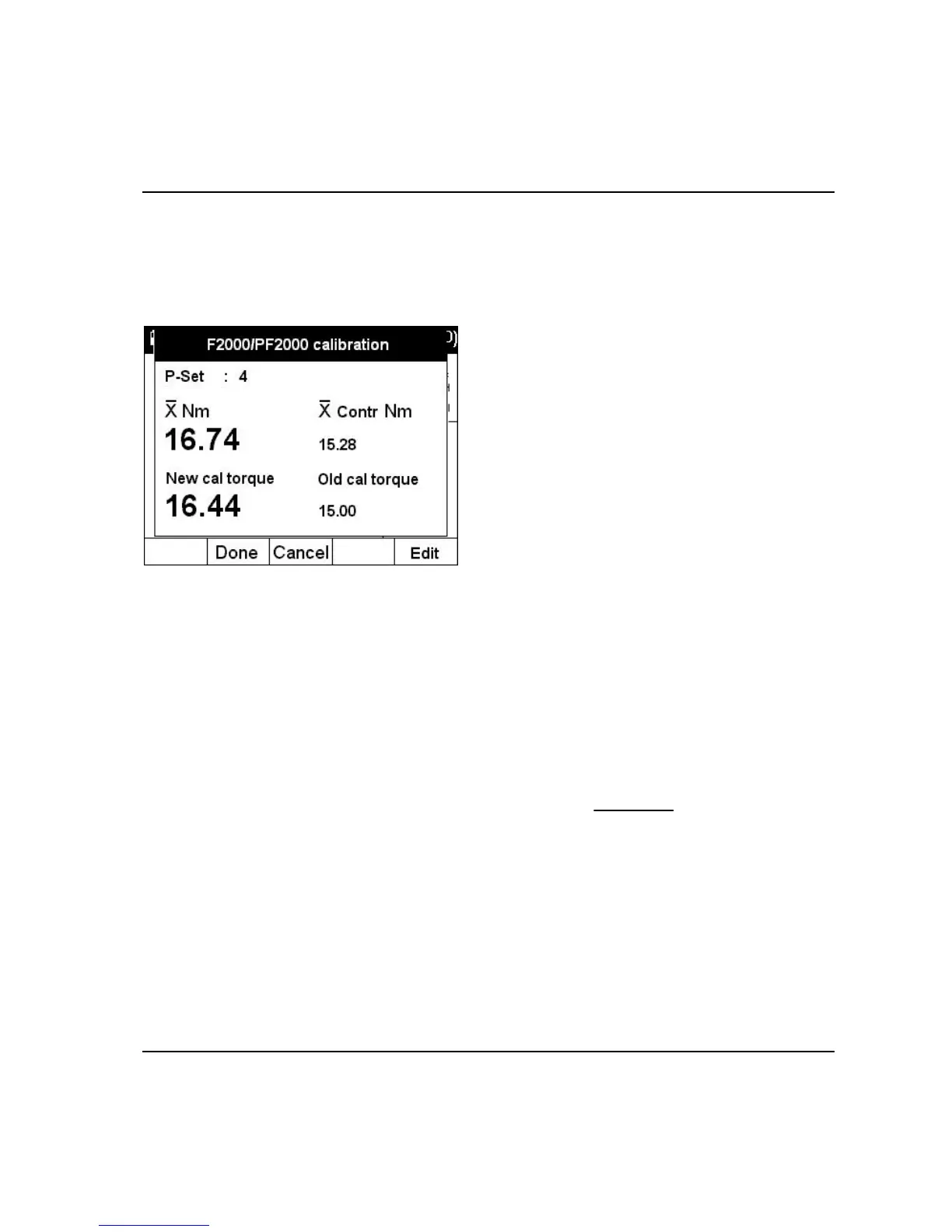

saved in the controller if communication is set up to the controller. See figure below.
Display text Comments
P-Set Parameter set used.
X-bar Mean torque value.
X-bar Contr. Mean controller torque. Values are manually entered or
read from controller. Manually entered if communication
not set up to controller.
New cal. torque New calculated calibration torque for controller.
Xbar
ueOldcaltorqueNewcaltorq ⋅=
Old cal. torque Old calibration torque in controller.
Softkey Comments
Done Mark tightening operations as used in calibration. Printout
question is asked.
Cancel Close window.
Edit Change the calibration torque.
