4. Steam flow with Deaerator
Can be used for systems with deaerators. The temperature of the make up water and the condensate
temperature is measured and used in the heat flow calculation.
Temperature sensors terminals configuration:
T1
Make Up Temperature
T2
Spare Input (Temperature Expansion Feature)
T3
Condensate Temperature
6. Steam flow with Deaerator and Feed Sensor
This function is used for systems with a dearator. The flowrate of the make-up water, feedwater and
condensate has to be measured using a flow meter.

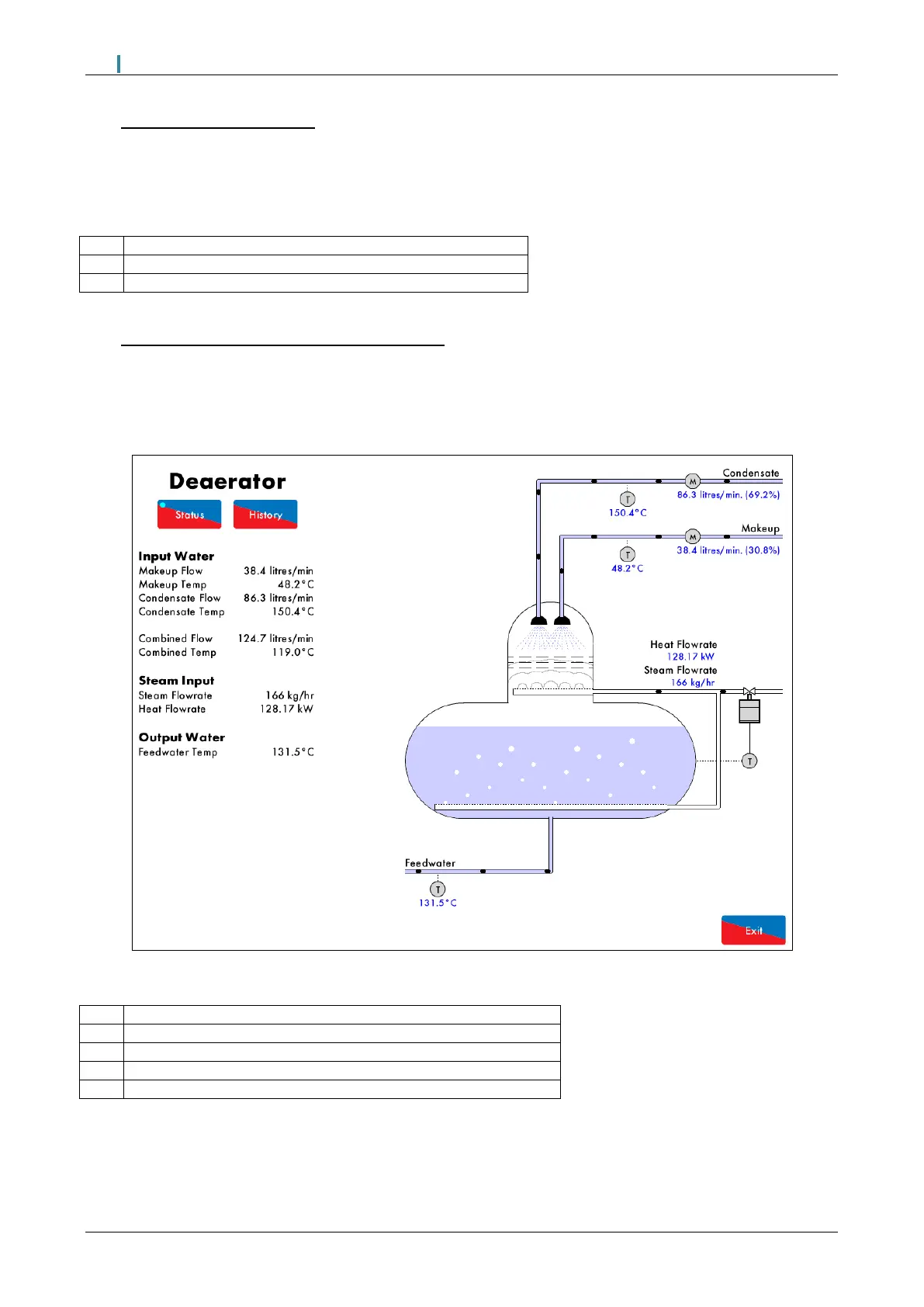

The MM Dearator screen displays the live values as well as a history graph for the dearator data.
Temperature sensors and flowmeters terminals configuration:
T1
Make Up Temperature
T2
Feed Water Temperature
T3
Condensate Temperature
MF
Current input, 4-20mA for cold water make up flow meter
CF
Current input, 4-20mA for condensate return flow meter
