AUTOFLAME Mk8 MM User Manual

16 Heat Flow
Mk8 MM Manual Page | 277
7. Hot Water Flow with Default Values
The hot water flow is a calculated value based on:
• The commissioned Fuel Flow Metering on the MM, enabled in option 57.
• The standing losses are set as a fixed percentage in Expansion Option 121
• The total blowdown losses are set as a fixed percentage in Expansion Option 122
• The stack losses are set as a default fixed percentage value in the MM. If an EGA is enabled then
the stack losses are taken from the EGA rather than using a default value for the calculation.
No additional temperature sensor required.
T1
Not Used
T2
Not Used
T3
Not Used
8. Hot Water Flow
A temperature sensor is used to measure the feed water temperature and the value is taken into the
calculation for greater accuracy.
Temperature sensors terminals configuration:
T1
Input Temperature (Feed Water)
T2
Not Used
T3
Not Used
9. Hot Water Flow with Economiser
Temperature sensors terminals configuration:
T1
Input Temperature (Economiser Output)
T2
Feed Water Temperature (Economiser Input)
T3
Not Used

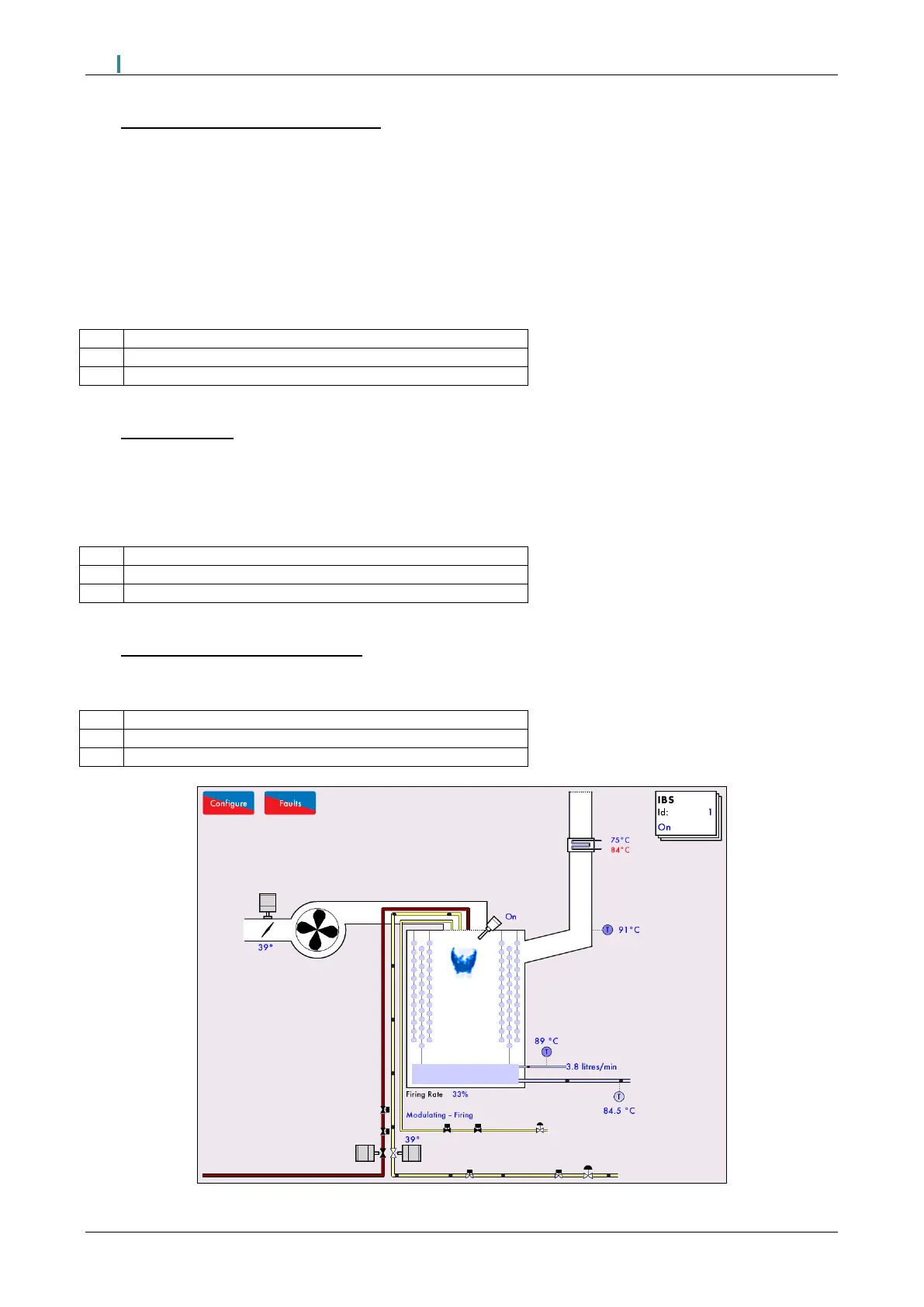

Hot Water Flow with Economiser on a vertical condenser hot water boiler
