3 Commissioning Procedure
Mk8 MM Manual Page | 98

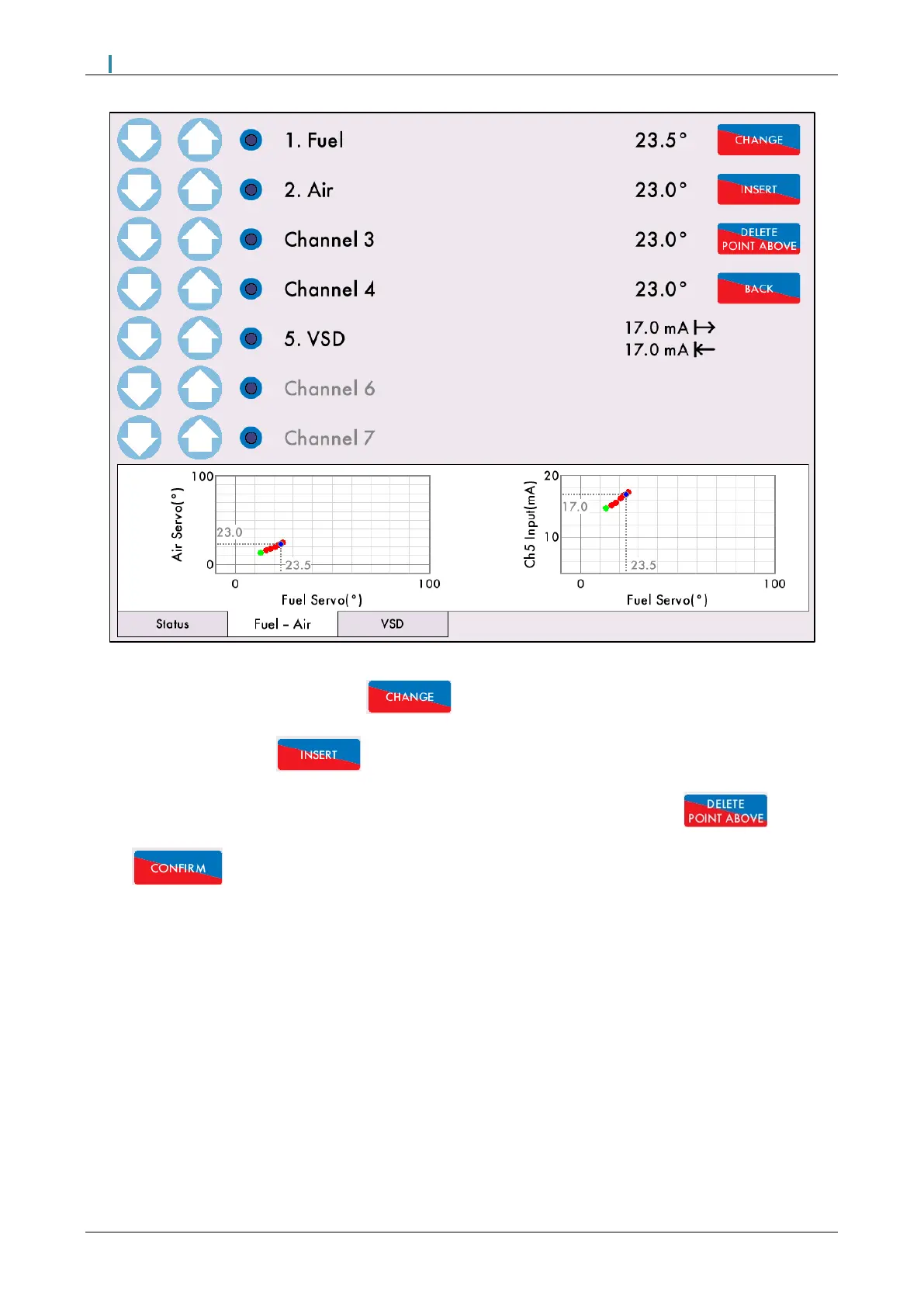

Figure 3.7.ii Changes
To edit a previously entered point press and make adjustments to the positions as needed (see
Figure 3.7.iiii).
To enter a new point press .
To delete a point on the curve, move to a point below that one to be deleted and press
Press to confirm the change.
Note: It is not possible to delete LOW or HIGH FIRE positions or have less than 3 INTER points.
