Installation 207

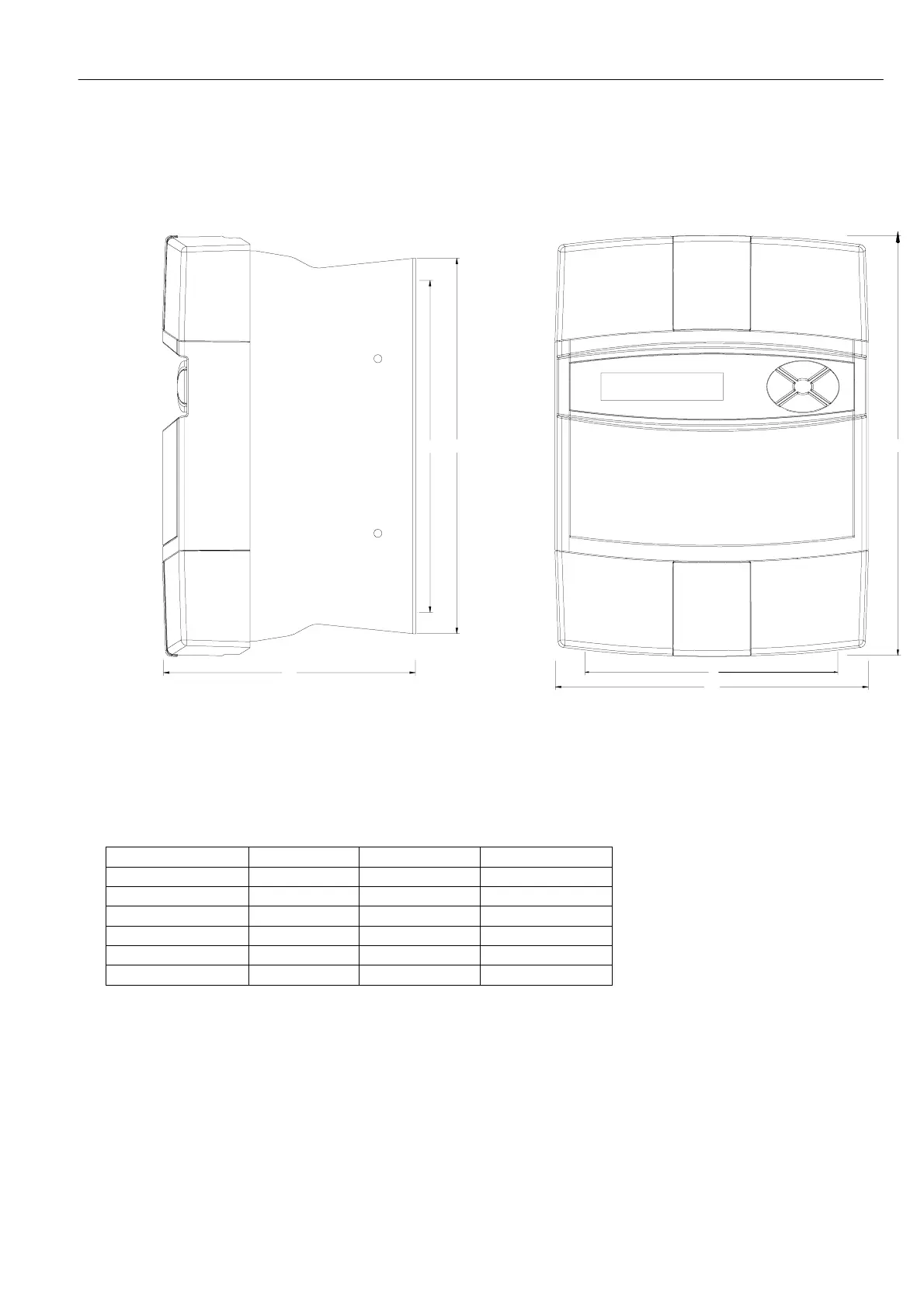

14.4 PL/X family c over dime nsions
Dimension in mm PL/X 5-50 PL/X 65-1 45 PL/X 185/265
W 216 216 216
H 289 378 378
D 174 218 314
A fixing centre 175 175 175
B fixing centre 228 390 390
C 258 410 410
See 14.5, 14.6 and 14.7 for unit footprint and busbar dimensions.
Plea se also refer to Part 3 PL/X 275-980 for extra details of frame 4 and 5 high power dri ves.
A
H
W
D
B
C
