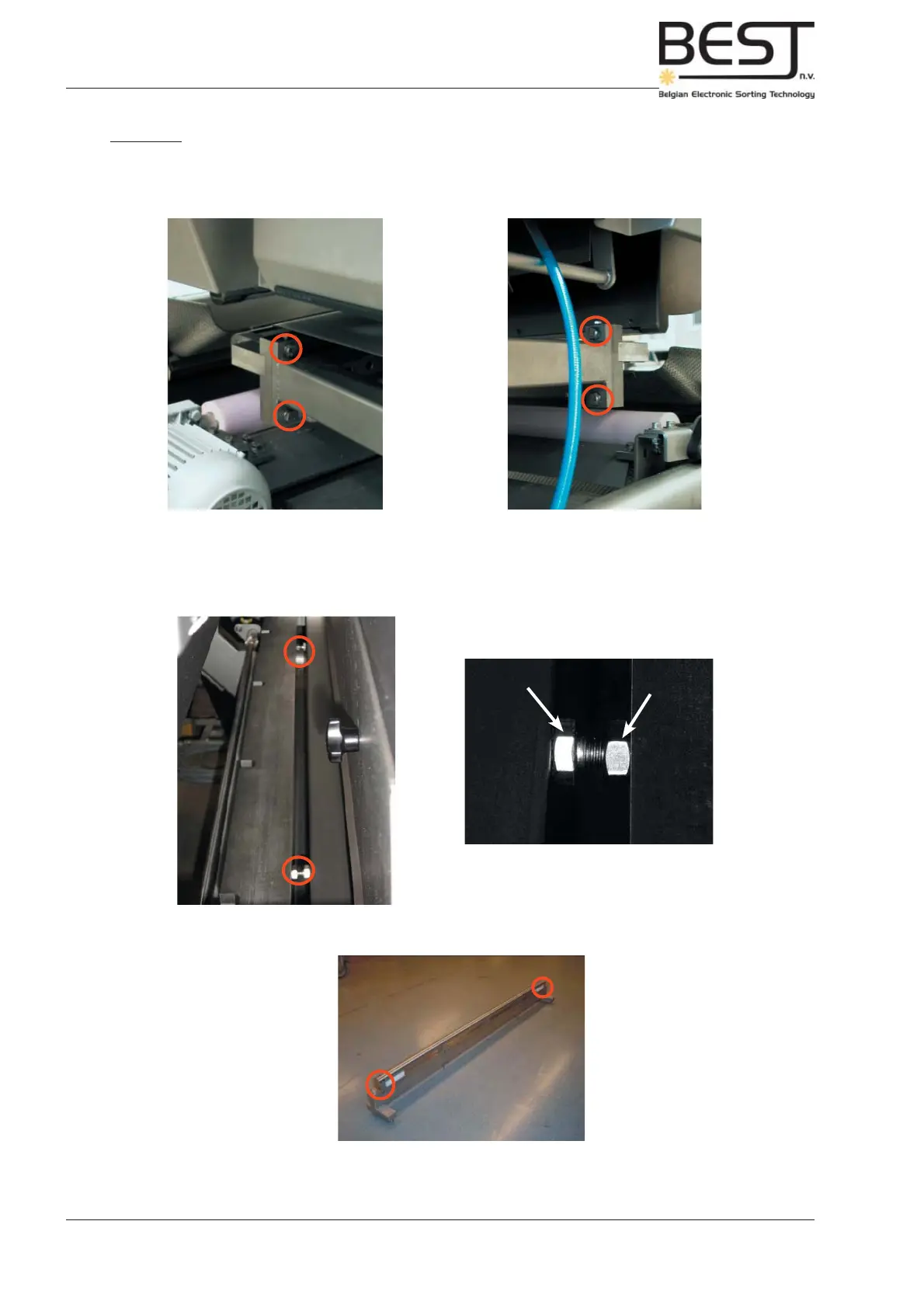

2. Screw in the supporting bolts (see pictures) between small return axle assembly and frame. These
bolts give extra support against the pressure of the belt on the return axle assembly.
- First loosen the hexagon nuts (a).
- Next screw in the supporting bolts (b) until they no longer touch the return axle assembly.
Procedure:
1. Unscrew 2 fi xing bolts of return axle assembly on both sides of the sorter unit (see pictures underneath)
and carefully remove the return axle assembly.
3. Remove a bearing block at one of the ends of the mounting block (see picture).
