Best GENIUS Compact - VII. Maintenance (continued); Roller and Bearing Block Removal

7/19
Chapter 7: Maintenance
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
BESTnv Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.BESTnv@bestnv.com

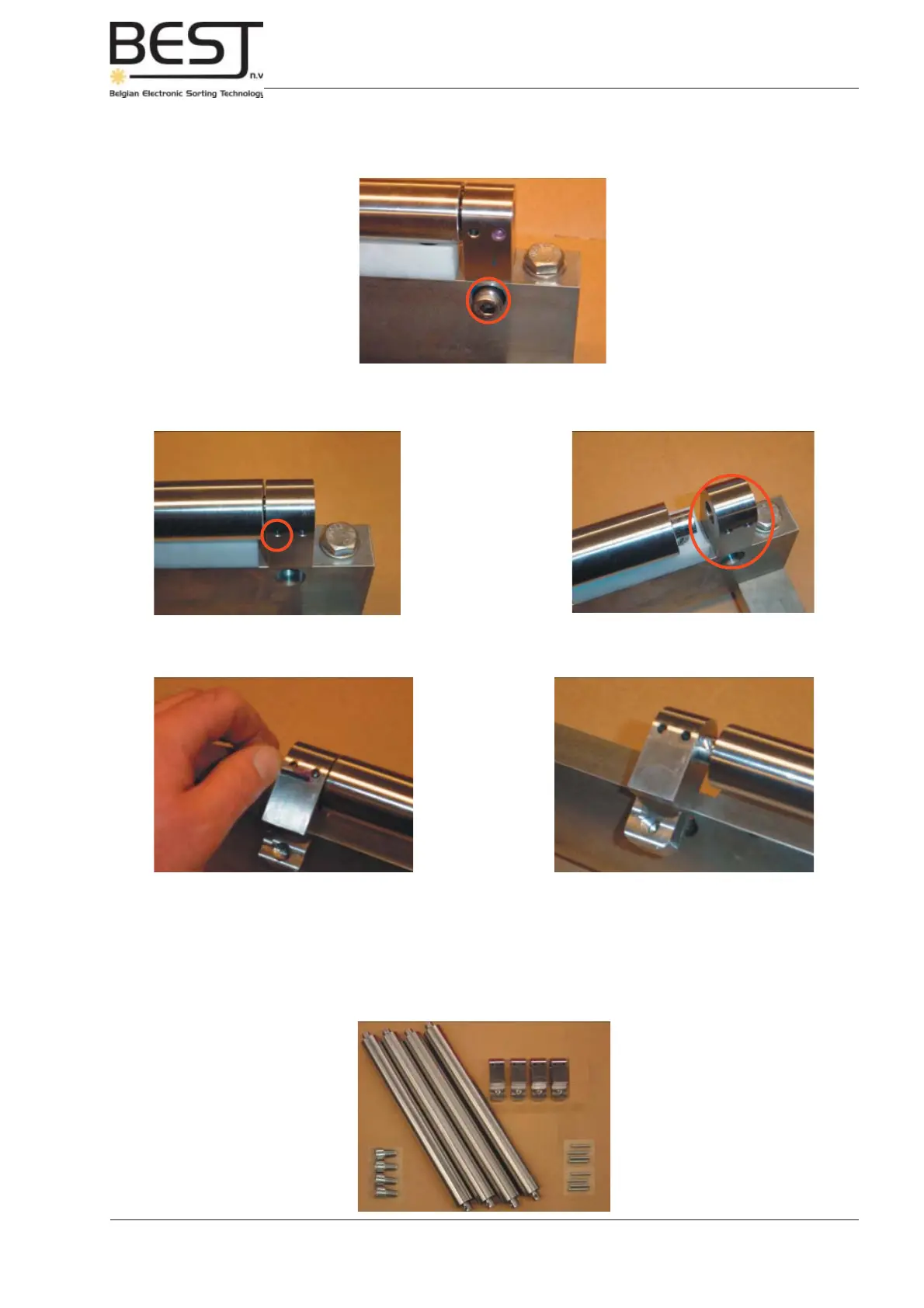

disassembled parts 1200mm version
- b) Unscrew the inner M5 setscrew (see picture) to remove the bearings block from the roller, the
outer setscrew should not be unscrewed.
4. Remove fi rst roller: Unscrew fi rst setscrew in next bearings block and slide out roller (see pictures).
5. Remove next bearings block: Use an Allen key to carefully remove the M10 screw that fi xes the bearing
block to the mounting block.
6. Repeat steps 4 and 5 until all rollers (4 for 1200 mm version) are removed and only the outer bearing
block is left.
- a) Use an Allen key to carefully remove the M10 screw that fi xes the bearing block to the mounting
block.
