Chapter 2: Pre-installation Guide:
Unpacking & placing of GENIUS Compact optical sorter
2/22
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
Pulsarr Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.pulsarr@bestnv.com
earthing
Electrical
Junction box
Water Chiller
earthing
1 x 230V, 12A,
2.5 mm
2
(14AWG)
Earthing
Electrical
junction box
Cooling unit
Earthing
3 x 400V, 7.9kW, 10A
2.5 mm
²
(14AWG)

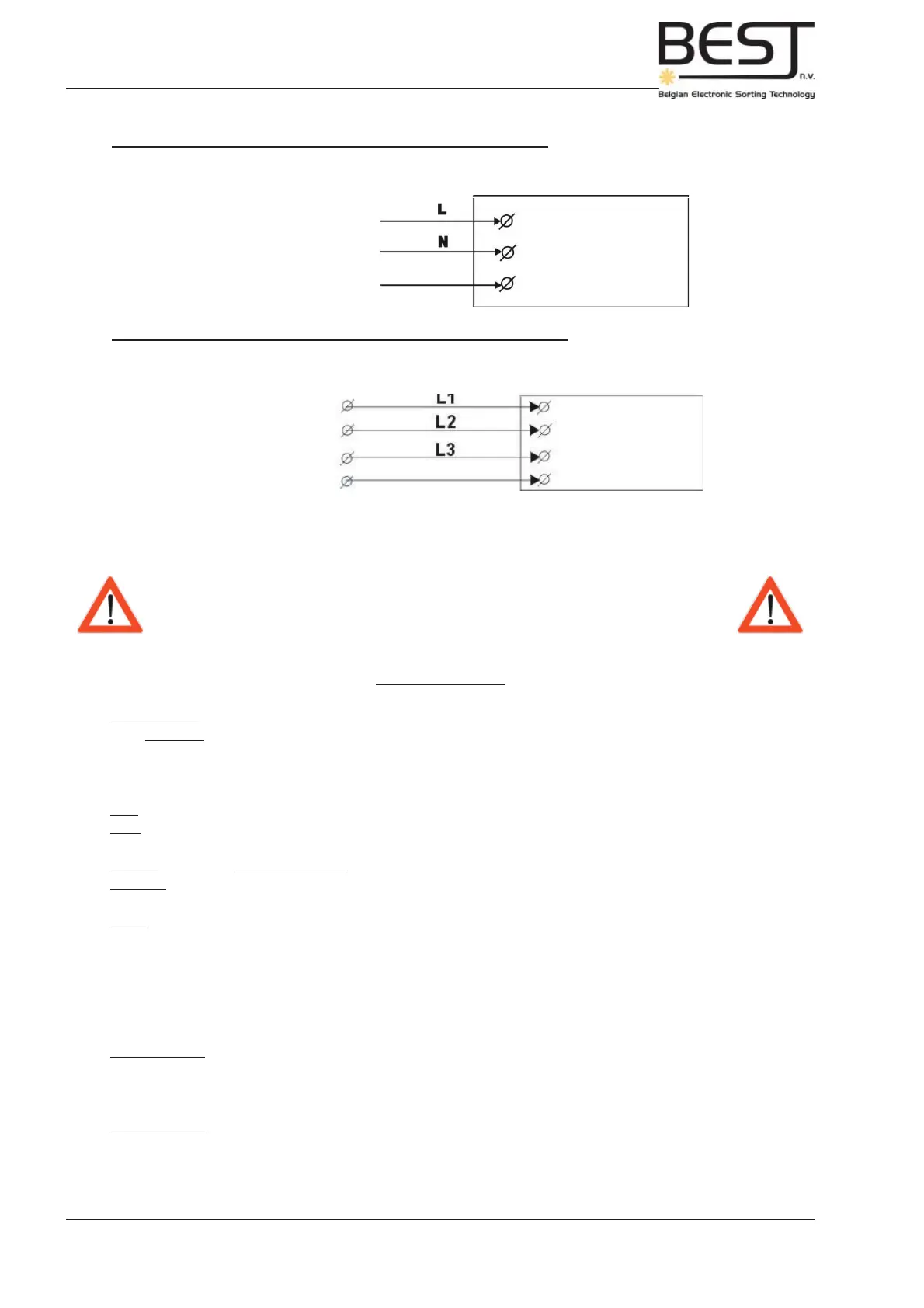

TAE M010 / PO (Cooling unit) Electrical Power Connections
Always separate power supply
TAE 020 EVO / P3 (Cooling unit) Electrical Power Connections
Always separate power supply
THE ELECTRICAL CIRCUITS SHOULD BE FUSED AND NO OTHER ELECTRICAL
APPLIANCE SHOULD BE CONNECTED TO THE CIRCUIT.
ALL ELECTRICAL WIRING MUST BE IN ACCORDANCE WITH
NATIONAL AND LOCAL ELECTRICAL CODES
non-US countries
Brand name: MTA s.r.l.
+ address: Via Dell’Artigianato, 2
35026 Conselve (PD)
Italy
Tel.: +39 (0)49 / 9597211
Fax: +39 (0)49 / 9500620
E-mail: info@mta-it.com
Website: http://www.mta-it.com
Type: - TAE M010 EVO / PO:
with built-in circulation pump and buffer tank (25 l);
standard cooling unit
- TAE 020 EVO / P3:
with built-in circulation pump and buffer tank;
in warmer environments, confi gurations with Argon lasers or to cool 2 machines
Cooling cap. : Water outlet temp. = 15°C; Water DELTA T = 5°C; ambient temp. = 25°C
- TAE M010 EVO: 4,4 kW
- TAE 020 EVO: 9.2 kW
Power supply: - TAE M010 EVO / P0; 1-phase, 11.6 A, 2.6kW, 230V, 50Hz,
usually electrically controlled by laser sorter.
- TAE 020 EVO / P3; 3-phase, 7A, 3.9kW, 400-460V, 50Hz
always separate power supply.
