Chery Automobile Co., Ltd.
46 - SEAT
46–17
46

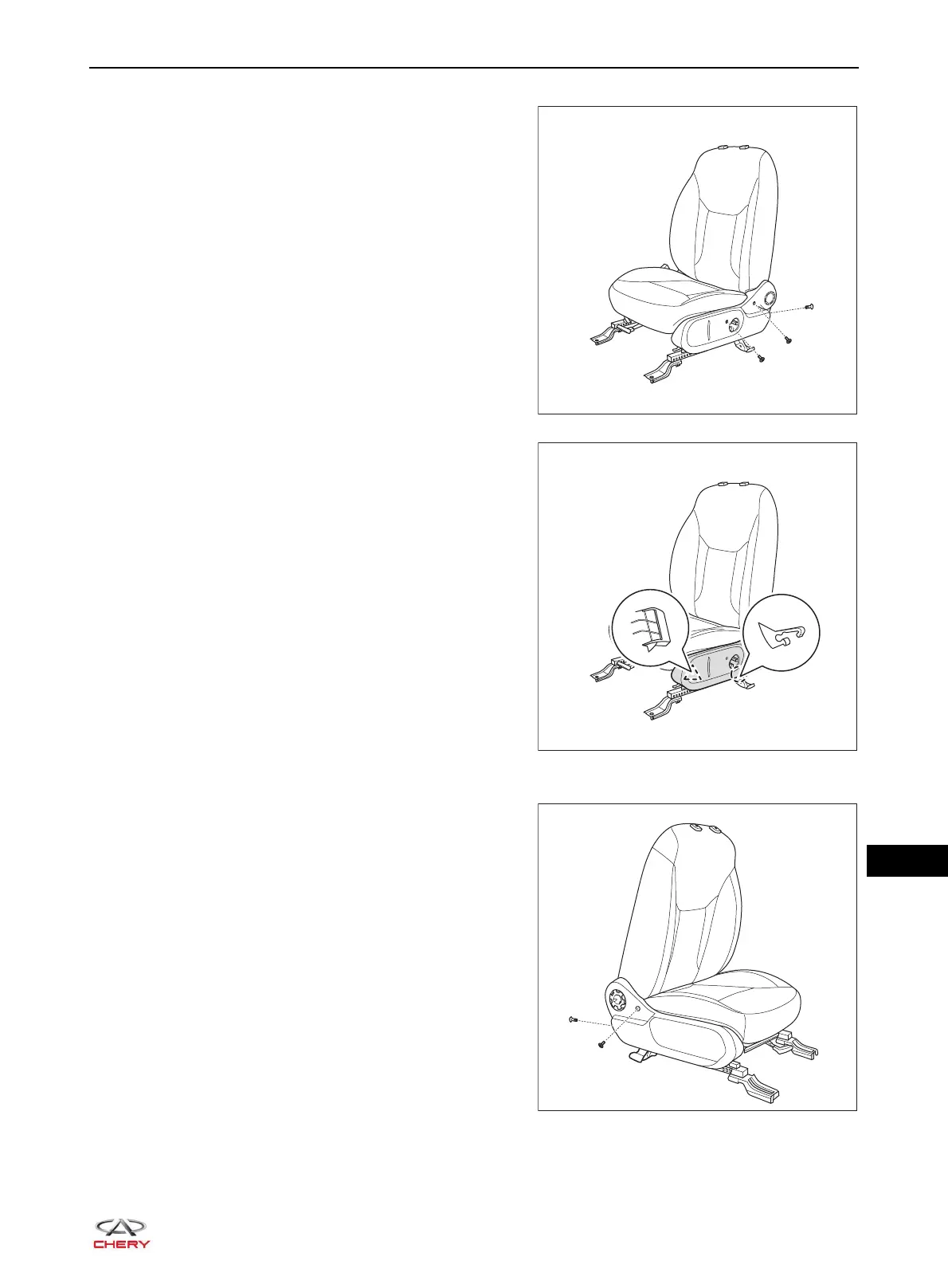

8. Remove the seat outer shield assembly (for driver side).
a. Remove 3 fixing screws from the seat outer shield
assembly.
(Tightening torque: 4.8 ± 0.5 N·m)
b. Using a screwdriver wrapped with protective tape, pry
up the claws on the seat outer shield assembly, and
remove the seat outer shield assembly.
9. Remove the seat outer shield assembly (for front passenger side).
a. Remove 2 fixing screws from the seat outer shield
assembly.
(Tightening torque: 4.8 ± 0.5 N·m)
To Next Page
