Chery Automobile Co., Ltd.
46 - SEAT
46–27
46

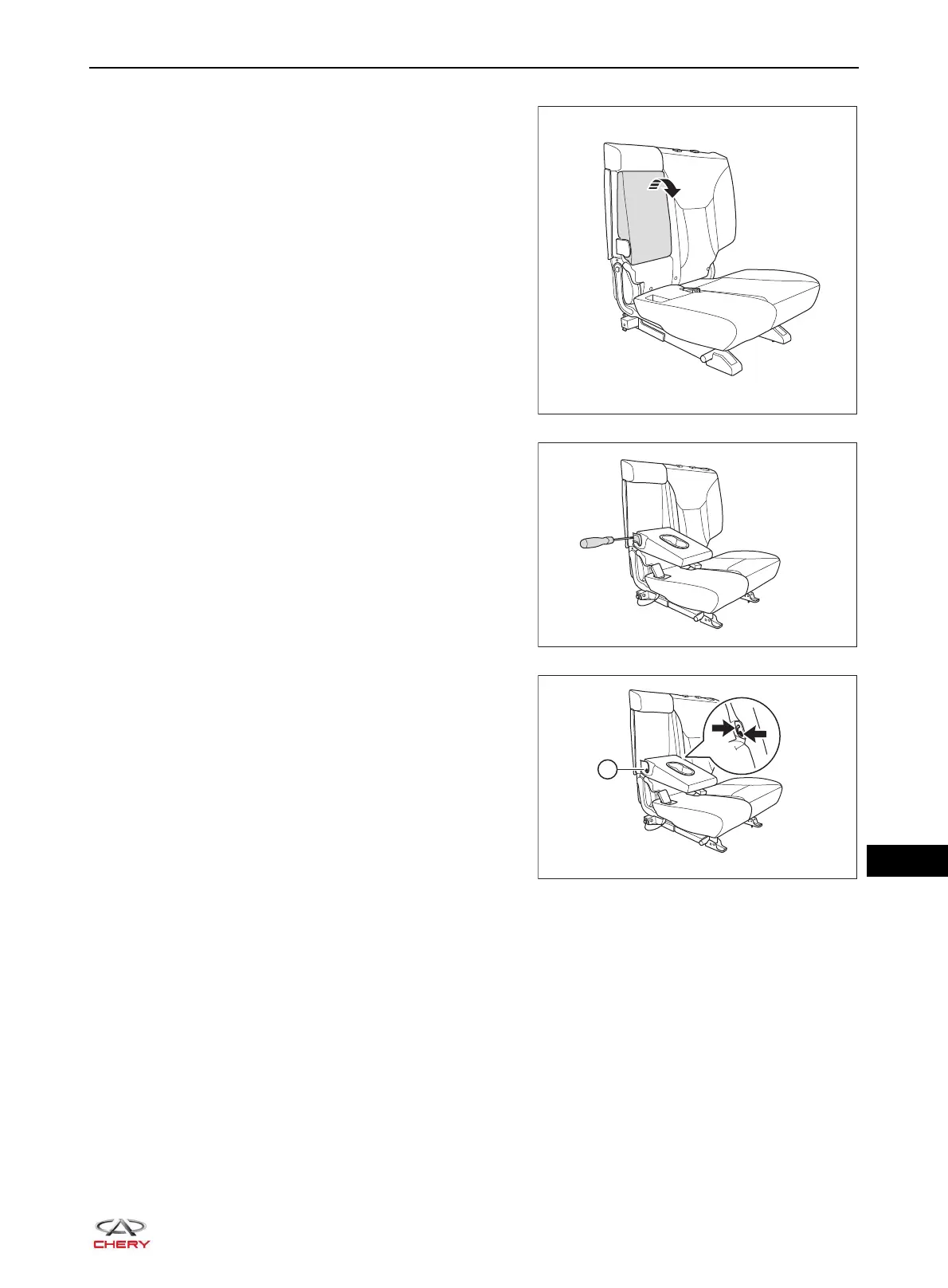

2. Remove the rear seat armrest assembly.
a. Open the rear seat armrest assembly in the direction
of arrow as shown in the illustration.
b. Using a screwdriver wrapped with protective tape, pry
up the claw on the rear seat armrest trim cover, and
remove the rear seat armrest trim cover.
c. Remove the fixing screw (1) from the rear seat
armrest assembly.
ï€
(Tightening torque: 4.8 ± 0.5 N·m)
d. Remove the rear seat armrest assembly from the
grooves (arrow).
To Next Page
