Chery Automobile Co., Ltd.
46 - SEAT
46–28
46

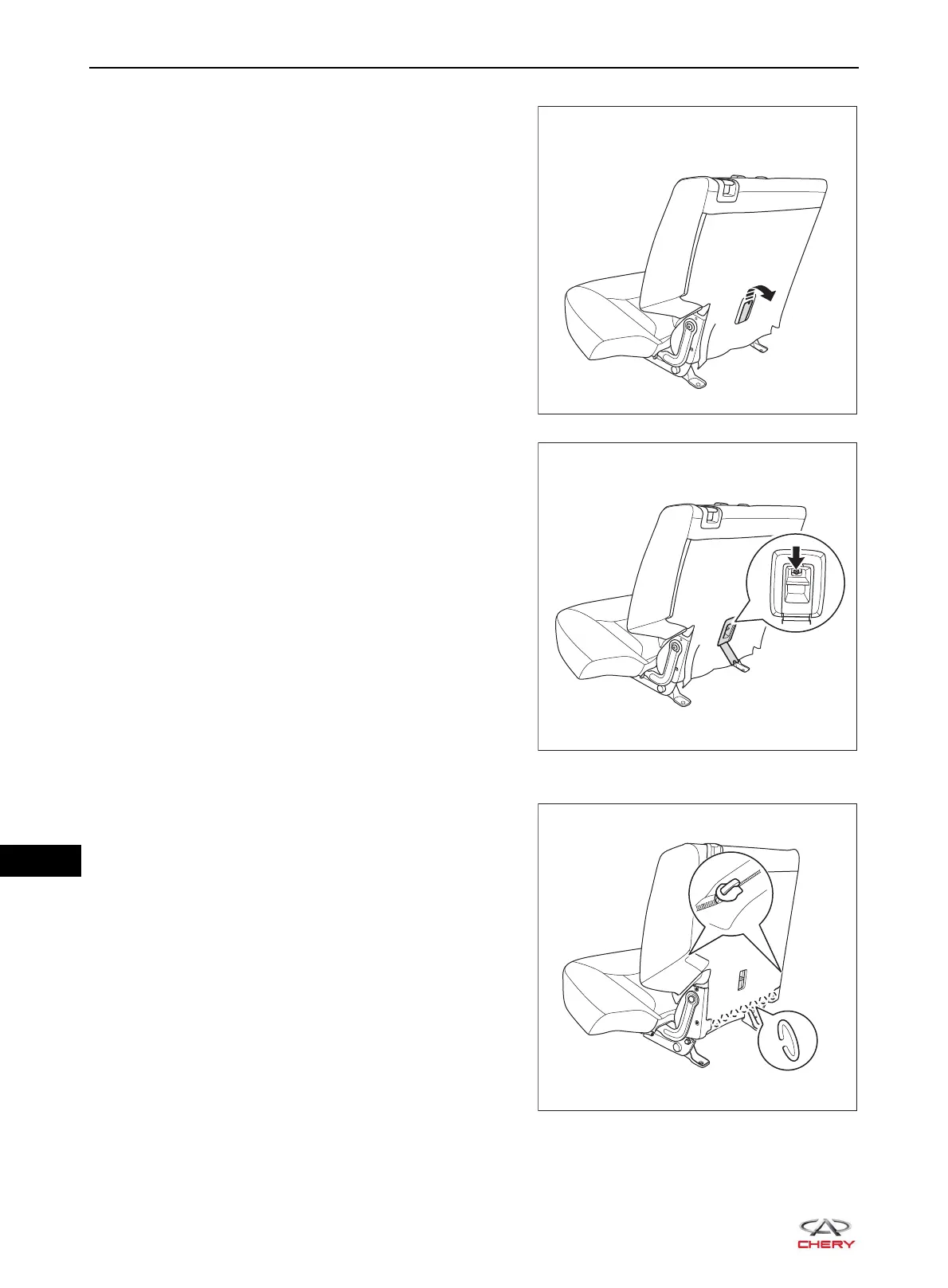

3. Remove the child seat upper fixing point trim cover.
a. Open the child seat upper fixing point trim cover in the
direction of arrow as shown in the illustration.
b. Remove the fixing screw (arrow) from the child seat
upper fixing point trim cover.
ï€
(Tightening torque: 4.8 ± 0.5 N·m)
c. Using a screwdriver wrapped with protective tape, pry
up the claw on the child seat upper fixing point trim
cover.
d. Remove the child seat upper fixing point trim cover.
4. Remove the rear left seat headrest guide.
a. Remove 7 hog rings under the seatback.
b. Unzip the rear seatback assembly.
To Next Page
