Chery Automobile Co., Ltd.
46 - SEAT
46–29
46

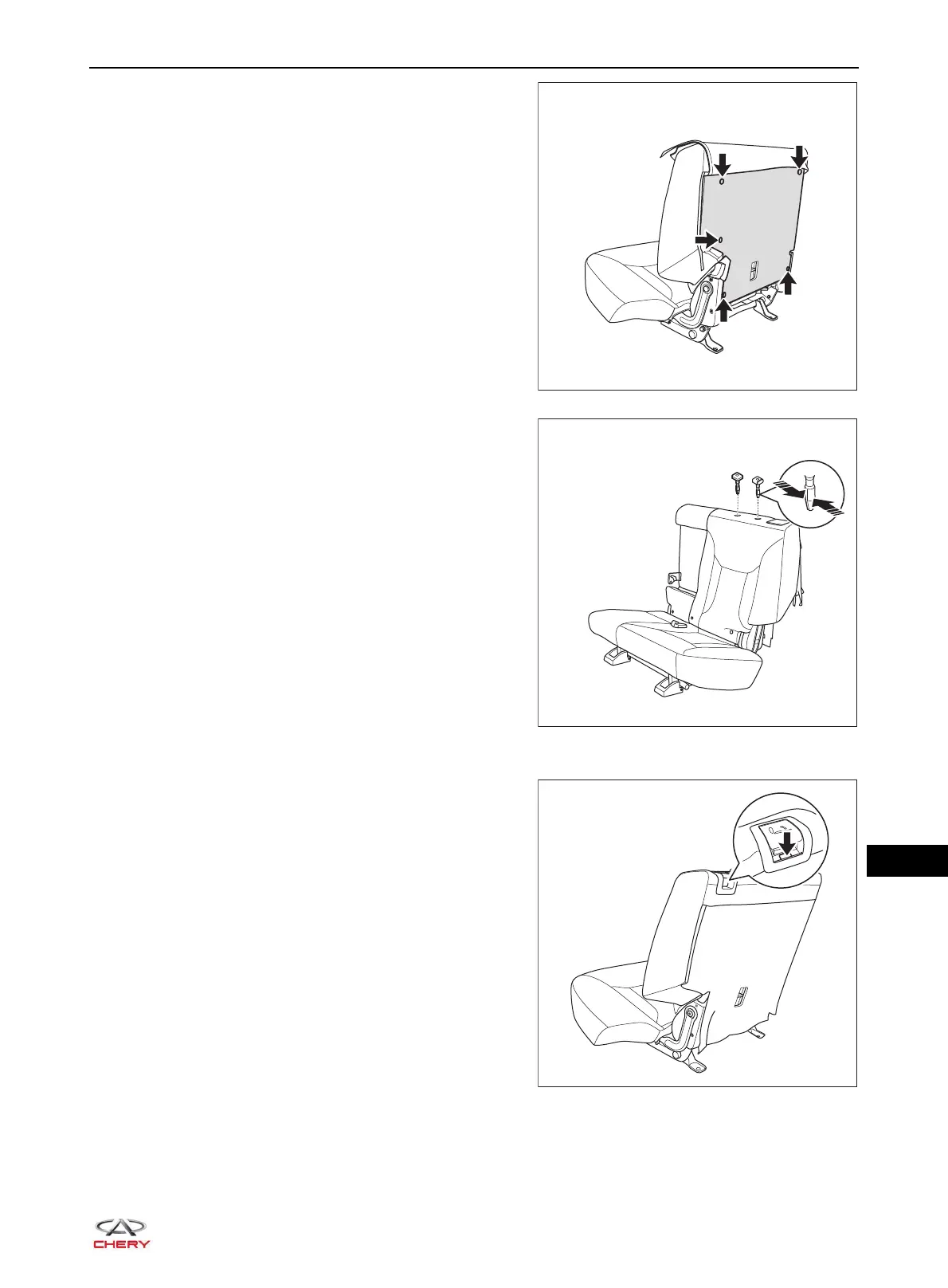

c. Remove 5 fixing clamps (arrow) from the rear
seatback board, and remove the rear seatback board.
d. Press the lower part of rear seat headrest guide in the
direction of arrow as shown in the illustration, and
remove the rear left seat headrest guide.
5. Remove the rear seatback unlock mechanism assembly.
a. Using a screwdriver wrapped with protective tape, pry
up the cover (arrow) of rear seatback unlock
mechanism assembly.
To Next Page
