46 - SEAT

46–30

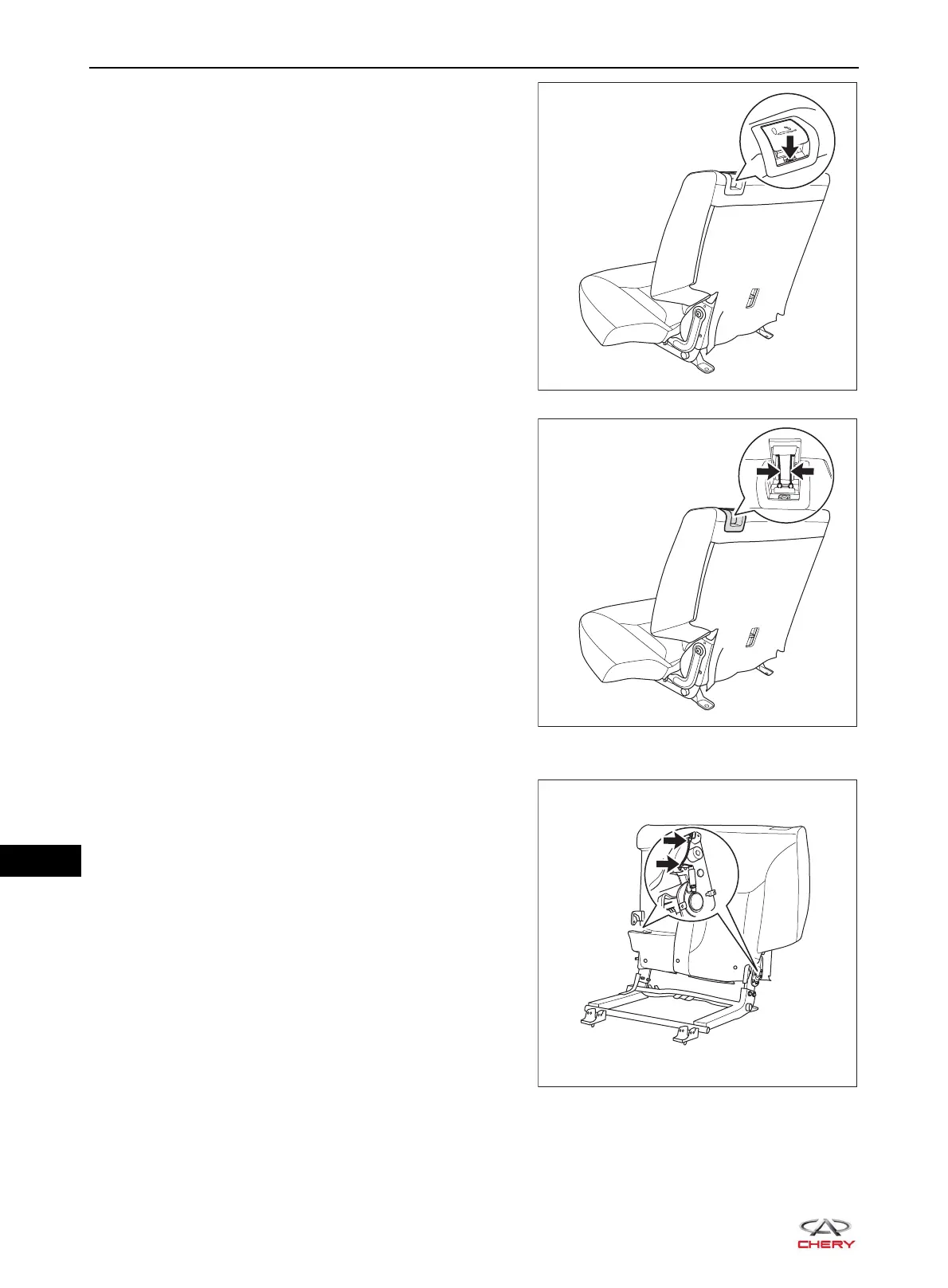

b. Remove the fixing screw (arrow) from the rear

seatback unlock mechanism assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

c. Disconnect the rear seatback unlock mechanism

cables (arrow), and remove the rear seatback unlock

mechanism assembly.

6. Remove the rear seatback unlock mechanism cable.

a. Remove the rear seatback unlock mechanism cables

(arrow) from the groove as shown in the illustration.

RT21460430

RT21460440

RT21460431
