2.2.3 Components on the back panel
Back panel of the air-cooled generator
1 2
3 4 5

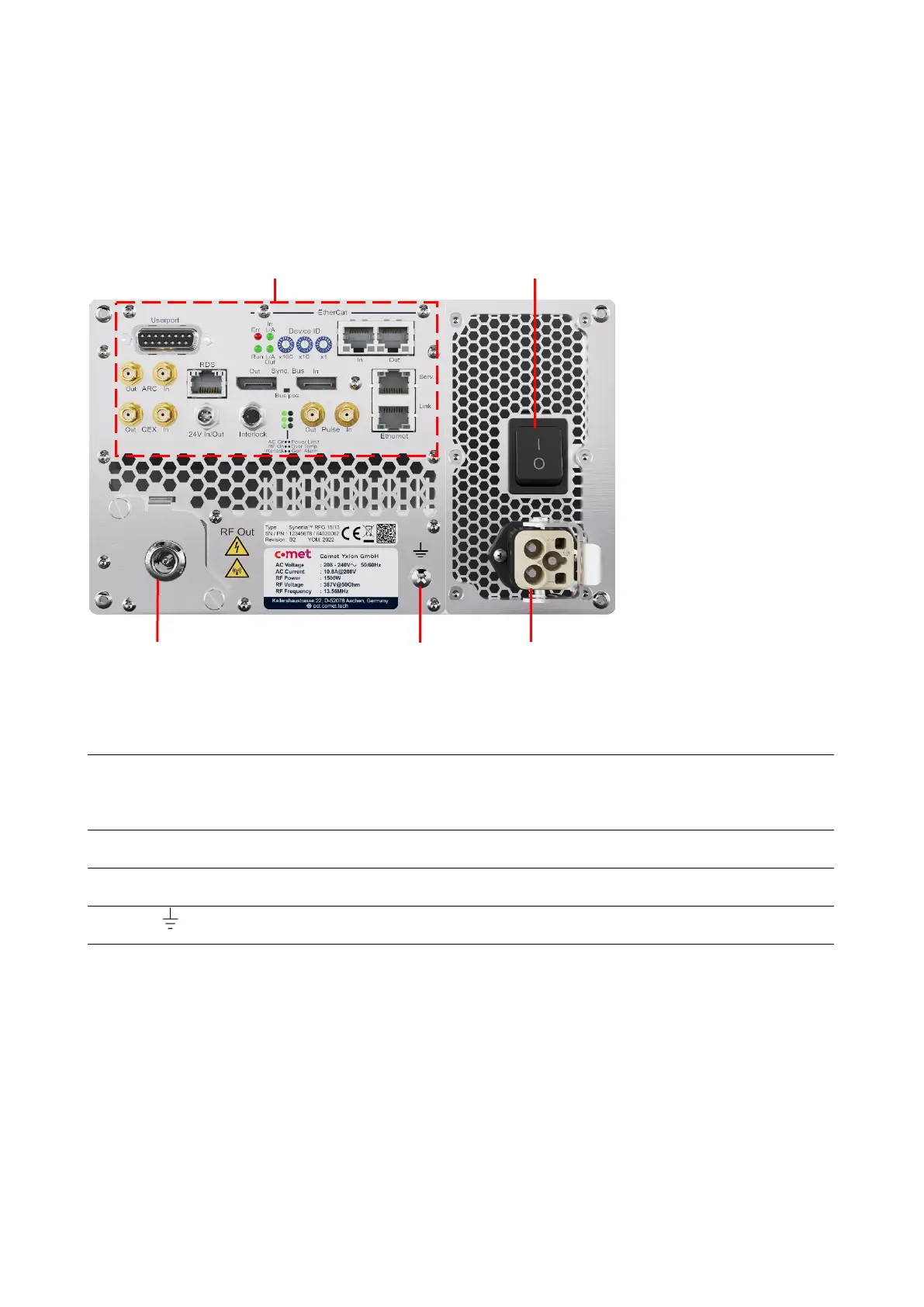

Figure 9: Back panel of air-cooled Synertia® RF generator
No. Label Description Connector type
1 - Interfaces: depending on device configuration. For details,
see Figure 11: Interfaces on the back of air- and water-
cooled Synertia® RF generators and
Table 13: Interfaces on
the backs of air- and water-cooled generators.
-
2 AC Mains
On/Off
Mains switch for switching the mains voltage on and off -
3 RF Out Output for connecting the RF output line
Note: May differ from image depending on configuration!
N-Type (female)
4 Ground connector for equipotential bonding with the
system ground in an on-site installation
-
5 AC Mains Mains connector for connecting the 1-phase mains voltage
cable
Harting™ Han
Modular
coupling
Table 9: Components on the back panel of the air-cooled generator
