4.7.2 Connector water-cooled generators:
• 1 pc. Han C axial module female 2,5-8 mm² / 14-9 AWG (P/N: 09 14 003 2701)
• 1 pc. Han-Modular Compact top entry M25 (P/N: 19 14 001 0401)
• 1 pc. Han-Modular Compact carrier hood (P/N: 09 14 001 0311)
• 1 pc. Han CGM-M M25x1,5 D.13-18 mm (P/N: 19 00 000 5092)
Pin Signal
1 Phase 1
2 Phase 2
3 Phase 3

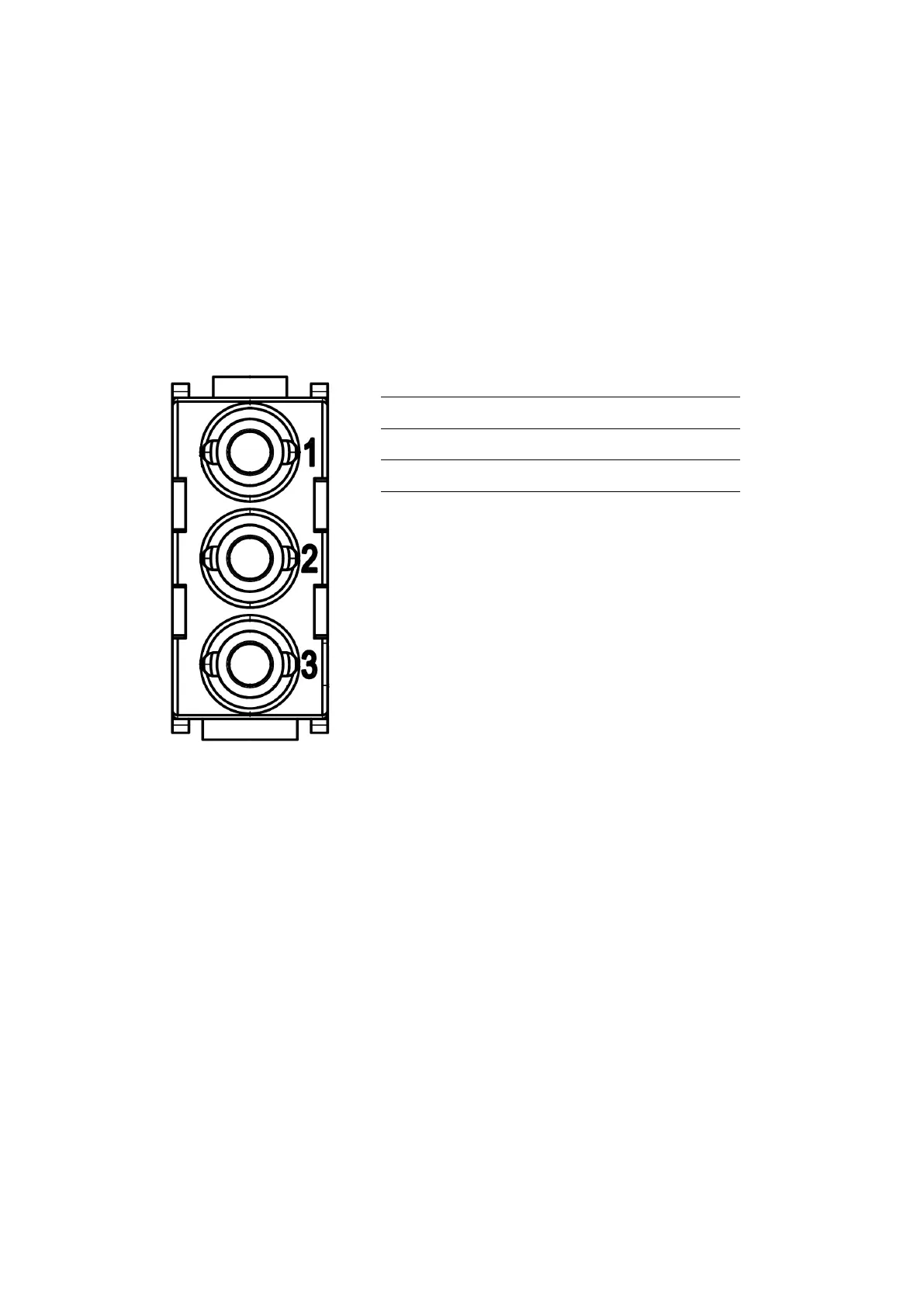

Table 18: Pin-out Han C connector
