Comet Synertia RF - Figure 19: Parts for the Ground Connection; Figure 20: Ground Connection Air-Cooled Unit; Figure 21: Ground Connection Water-Cooled Unit

User Manual Synertia® RF Generator 41
The information contained in this manual is subject to change by Comet Yxlon without prior notice.
Loosen the screw on the ground connector on the back of the generator housing.

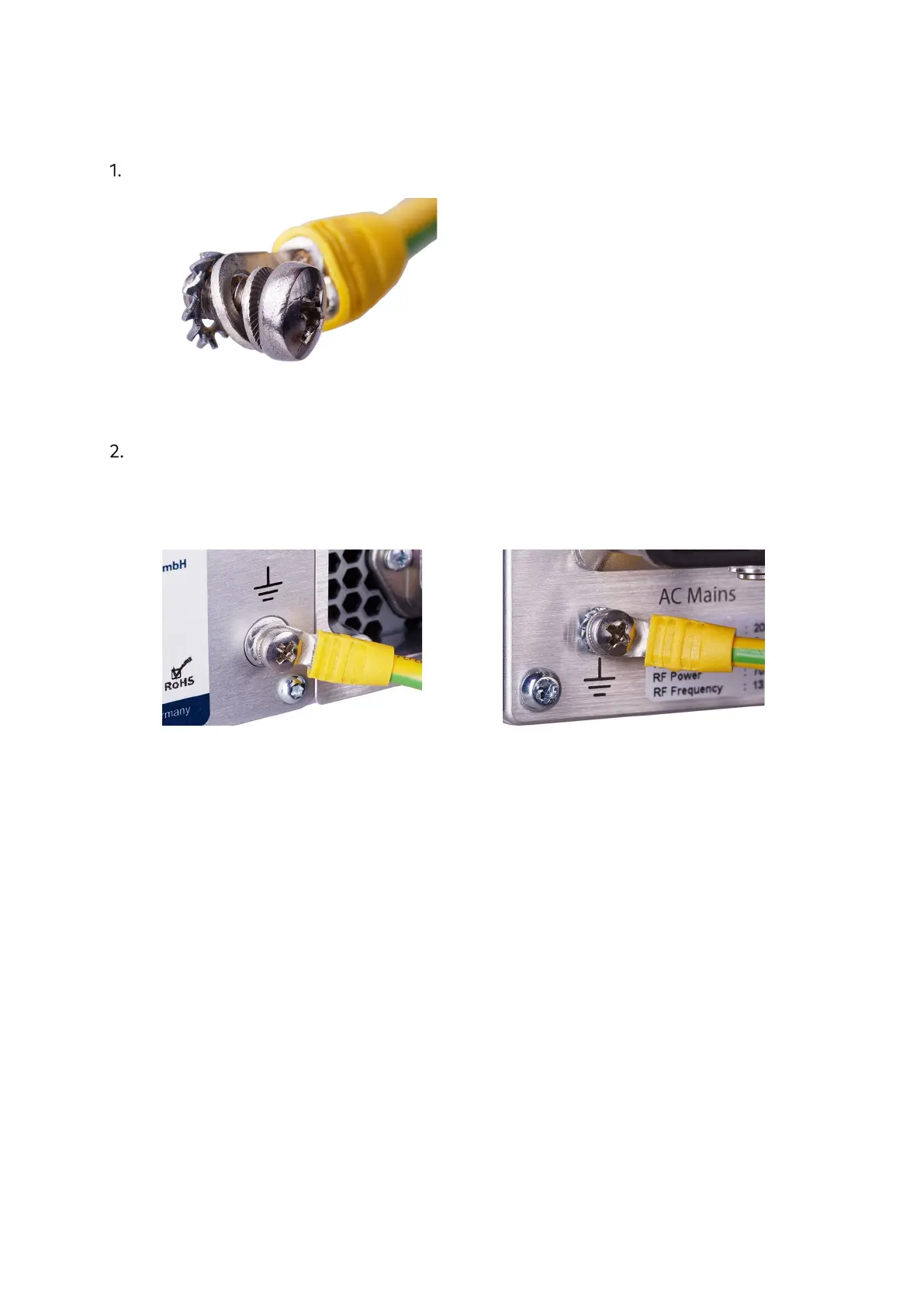

Figure 19: Parts for the ground connection
Make a ground connection to the ground of your system. To do this, use the parts
shown in
Figure 19.
Use a grounding cable with an adequate cross-section in accordance with local
rules and regulations.
Figure 20: Ground connection air-cooled unit Figure 21: Ground connection water-cooled unit
