38 User Manual Synertia® RF Generator
The information contained in this manual is subject to change by Comet Yxlon without prior notice.
3.6 Mounting
Prior to mounting the unit, please refer to section 3.2.1 at page 35 for information
concerning the center of mass.
Always use steel screws for mounting. There are four zones of anchorage points, one zone
near each corner of the unit. Distribute the screws and anchorage so that at least one
screw per zone is used. See Figure 15 and Figure 16 for detailed drawings of the seismic
anchorage points built into the unit.
For the 5 kW unit, three screw holes exist in each zone. It is left to the customer's
discretion which hole(s) to use in each group of three.
For the 5 kW, use screws 6x M5 – 8 deep at each side.
For the 1,5 kW, use screws 2x M5 – 5 deep at each side.

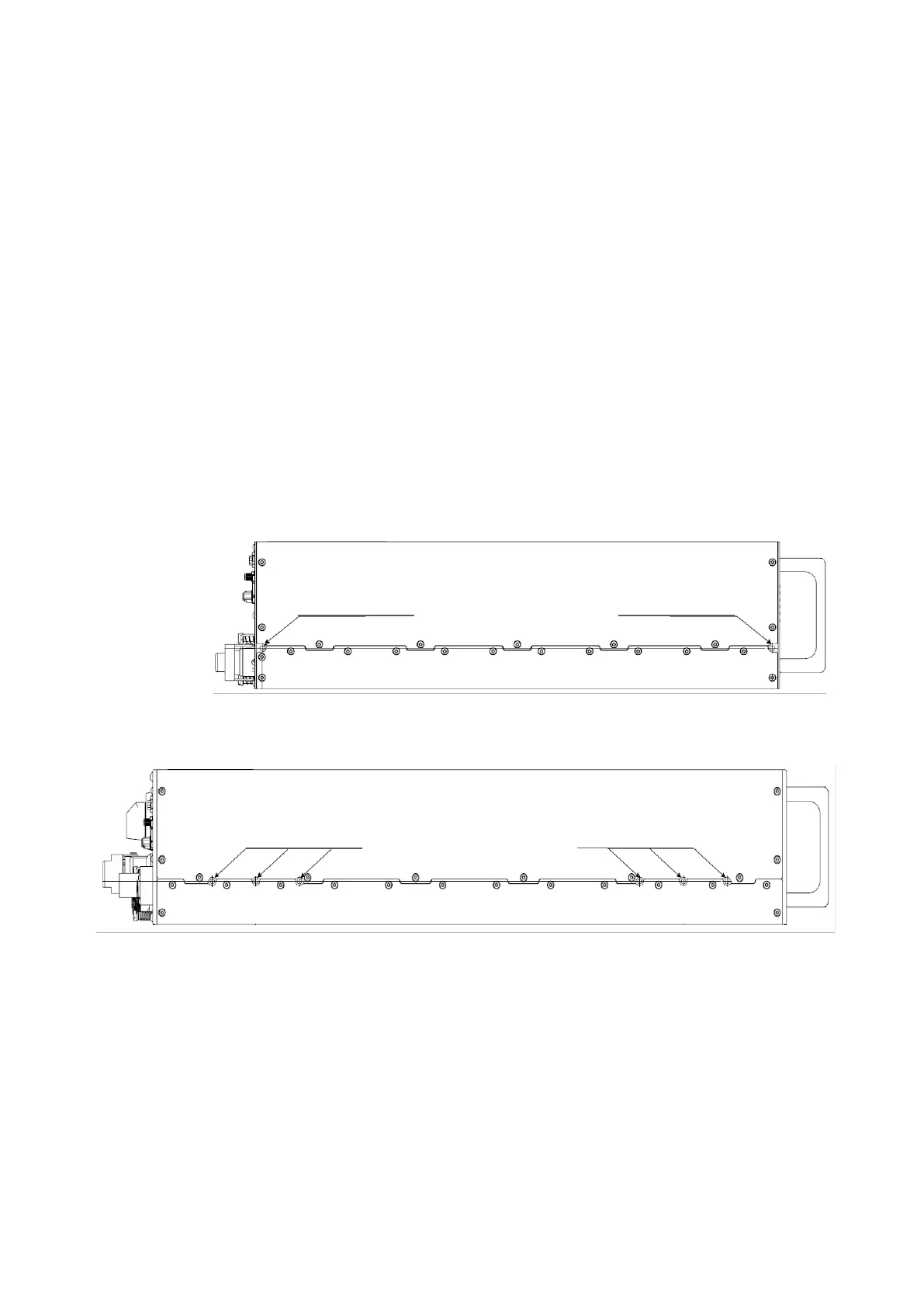

Figure 15: Seismic anchorage zones air-cooled model
Figure 16: Seismic anchorage zones water-cooled model
