Since source addresses of the packets are listed in MAC address table of specific VLAN (except
broadcast/multicast packets), in every VLAN the traffic between two ports will be two-way without
restrictions.

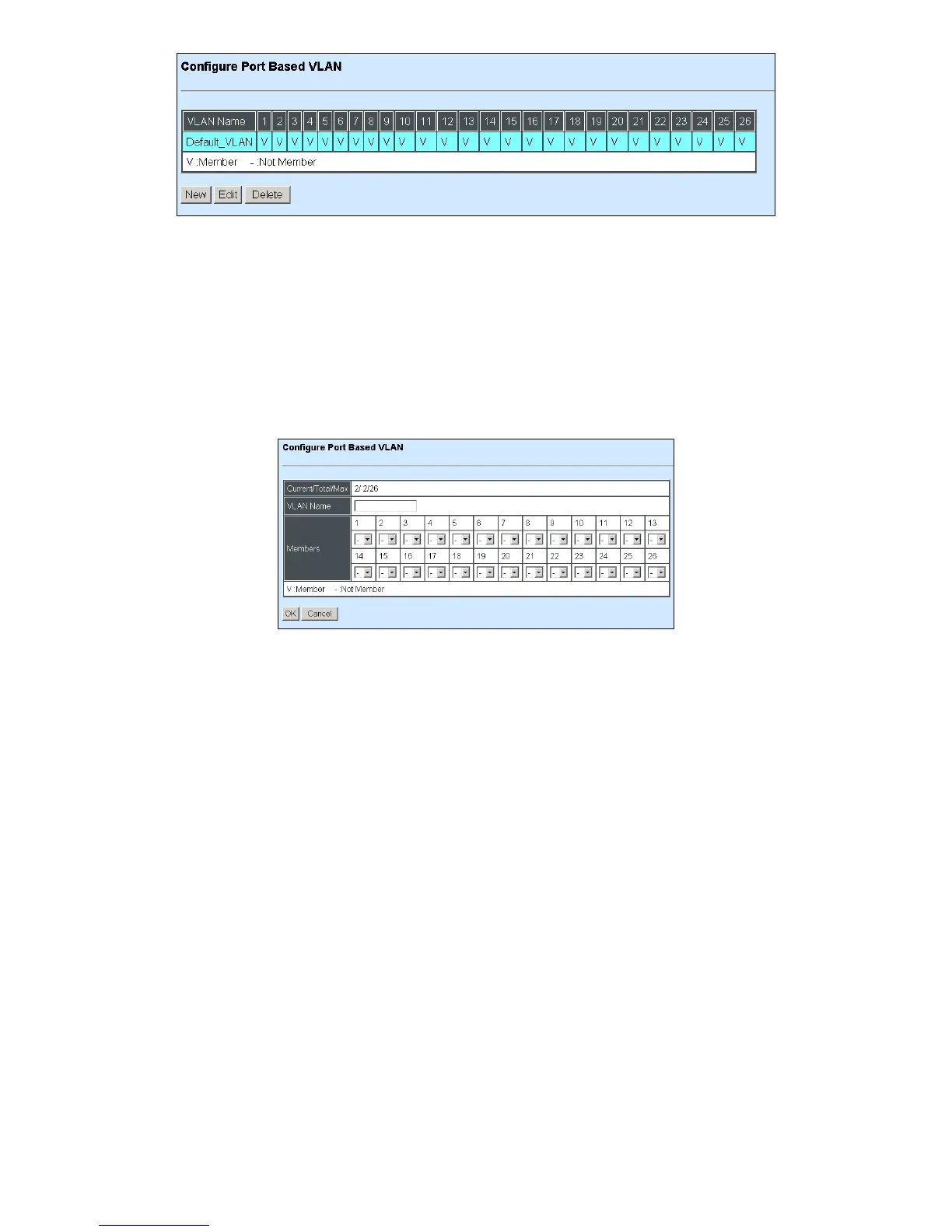

Click New to add a new VLAN entity and then the following screen page appears.
Use Edit to view and edit the current VLAN setting.
Click Delete to remove a VLAN entity.
VLAN Name: Use the default name or specify a VLAN name.
VLAN Members: If you select “V” from the pull-down menu, it denotes that the port selected
belongs to the specified VLAN.
4.4.7.2 802.1Q VLAN Concept
Port-Based VLAN is simple to implement and use, but it cannot be deployed cross switches VLAN.
The 802.1Q protocol was developed in order to provide the solution to this problem. By tagging
VLAN membership information to Ethernet frames, the IEEE 802.1Q can help network
administrators break large switched networks into smaller segments so that broadcast and
multicast traffic will not occupy too much available bandwidth as well as provide a higher level
security between segments of internal networks.
