4.5.10 SFP Information
Click the SFP Information folder and then the following screen page appears.

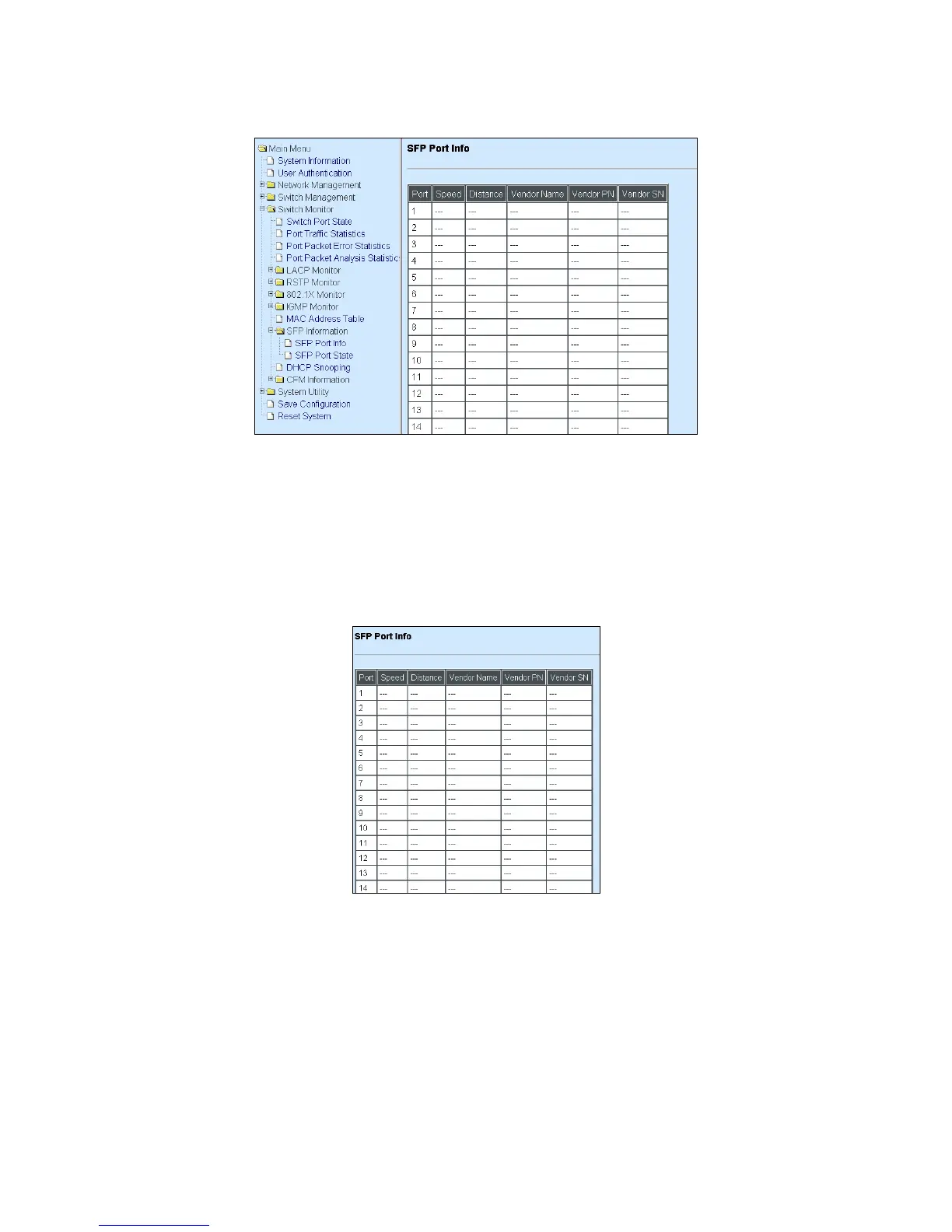

4.5.10.1 SFP Port Info
SFP Port Info displays each port‟s slide-in SFP Transceiver information e.g. Speed, Length,
Vendor Name, Vendor PN, Vendor SN, and detection Temperature, Voltage , TX Bias, etc..
Select SFP Port Info from the SFP Information menu and then the following screen page
appears.
Port: The number of the port.
Speed: Data rate of the slide-in SFP Transceiver.
Distance: Transmission distance of the slide-in SFP Transceiver.
Vendor Name: Vendor name of the slide-in SFP Transceiver.
Vendor PN: Vendor PN of the slide-in SFP Transceiver.
Vendor SN: Vendor SN of the slide-in SFP Transceiver.
