Channel Limit: Specify the maximum transport multicast stream.
Enable: To enable each port‟s IGMP filtering function. The default setting is “Off” which is disabled.
Port: View-only field that shows the port number that is currently configured.
IPMC Profile: In IGMP filtering, it only allows information specified in IPMC Profile fields to pass
through. (The field for IPMC Profile name is from the entry registered in IPMC Profile option.)

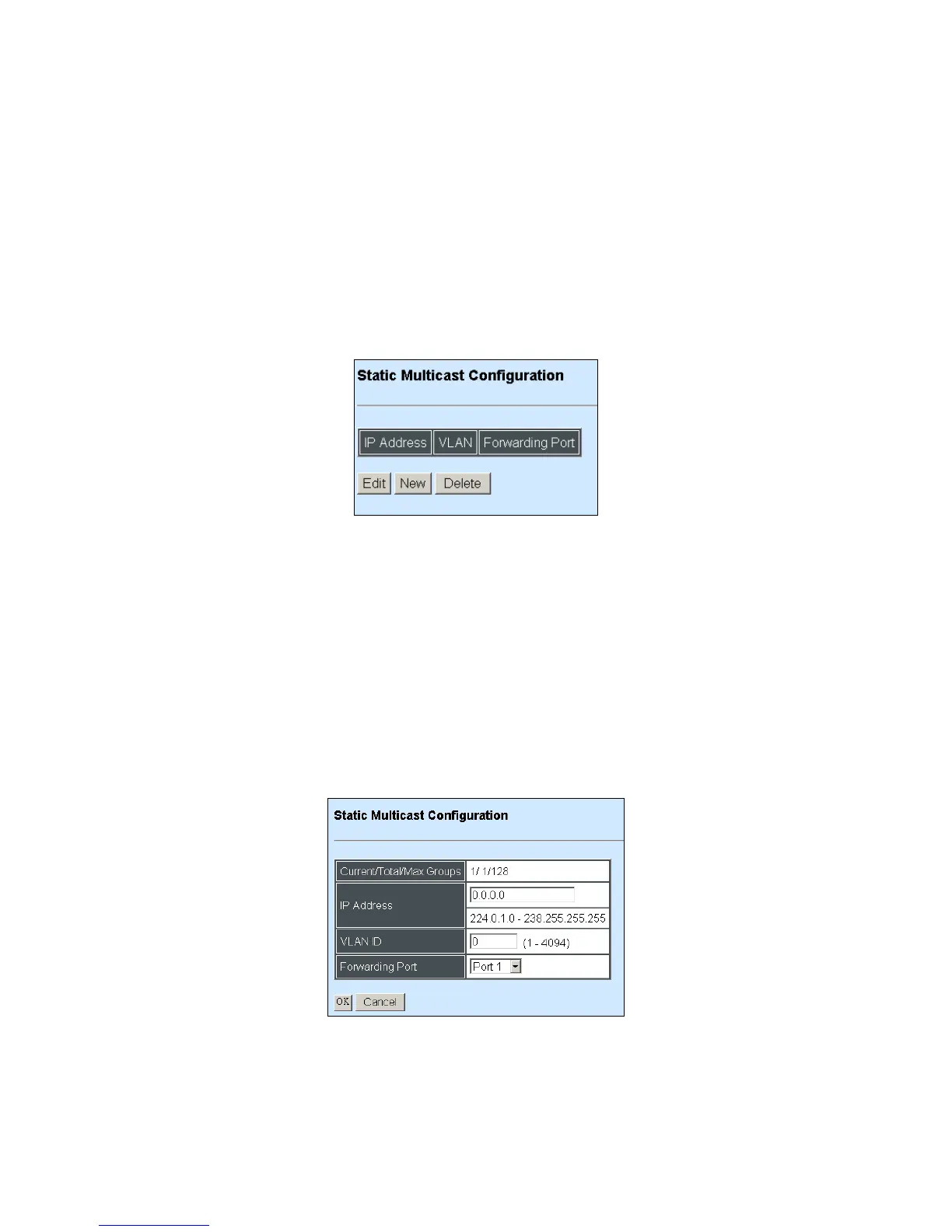

4.4.12 Static Multicast Configuration
Select the option Static Multicast Configuration from the Switch Management menu and then
the following screen page appears.
IP Address: View-only field that shows the current source IP address of multicast stream.
VLAN: View-only field that shows the specified VLAN ID for current multicast stream.
Forwarding port: View-only field that shows the forwarding port for current multicast stream.
Click New to register a new Static Multicast configuration and then the following screen page
appears.
Click Edit to edit and view static multicast configuration settings.
Use Delete to remove a current Static Multicast configuration.
Current/Total/Max Multicast Nums: View-only field.
Current: This shows the number of current registered static multicast configuration.
Total: This shows the total number of registered static multicast configuration.
Max: This shows the maximum number available for static multicast configuration. The
