CTS FOS-3126-PLUS SERIES User Manual

123

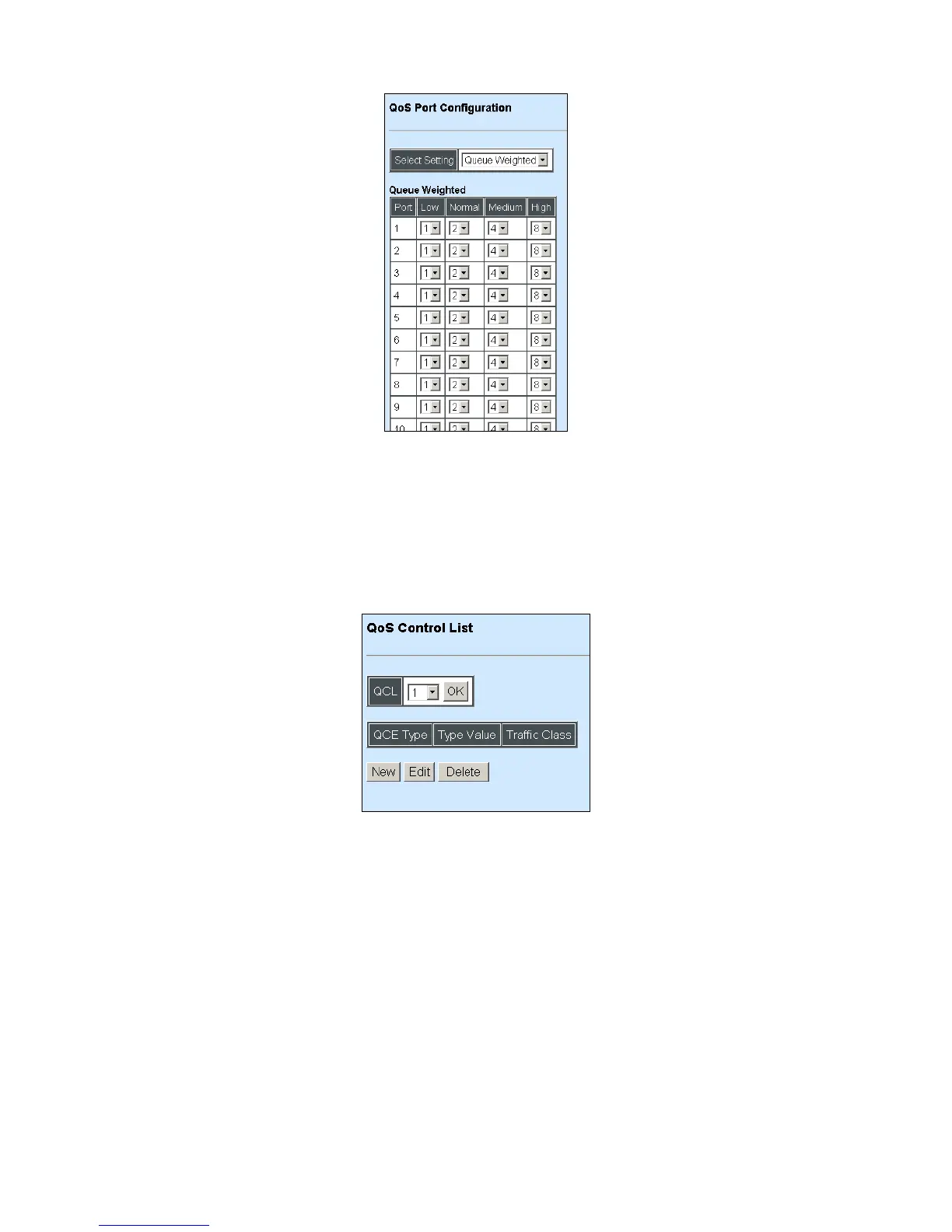

Configure Queuing Weighted:
Click the pull-down menu to select values of Queue weighted for each port.
4.4.8.2 QoS Control List
The following screen page appears if you choose QoS Priority Configuration and then select
QoS Control List.
QCL: Select a QCL number (1~26).
QCE Type: View-only filed that shows QCL‟s current QCE type.
Type Value: View-only field that shows QCL‟s current type value.
Traffic Class: View-only field that shows QCL‟s Traffic Class.
Click New to add a new QCL setting and then the following screen page appears.
Click Edit to view and edit registered QCL settings.
Click Delete to remove a current QCL setting.
