0180C2000002: 802.3 Clause 43 (Link Aggregation) and Clause 57 (OAM) use, aka
"Slow Protocols" Multicast address
0180C2000003: 802.1X Port Authenticator Entity (PAE) address.
0180C2000004-5: Reserved for future media access specific method standardization.
0180C2000006-7: Reserved for future standardization.
0180C2000008: All Provider Bridges.
0180C2000009-C: Reserved for future standardization.
0180C200000D: Provider Bridge GVRP Address.
0180C200000E: 802.1AB Link Layer Discovery Protocol address.
0180C200000F: Reserved for future standardization.
0180C200002X: Select either “Not Filter” or “Filter”. When “Filter” is selected, packets from the
address ranging from 0180C2000020 to 0180C200002F will be dropped. Multicast addresses from
0180C2000020 to 0180C2000022 are for GMRP, GVRP, and GARP respectively.
0180C2000010: Select either “Not Filter” or “Filter”. When “Filter” is selected, packets from the
address 0180C2000010 will be dropped.

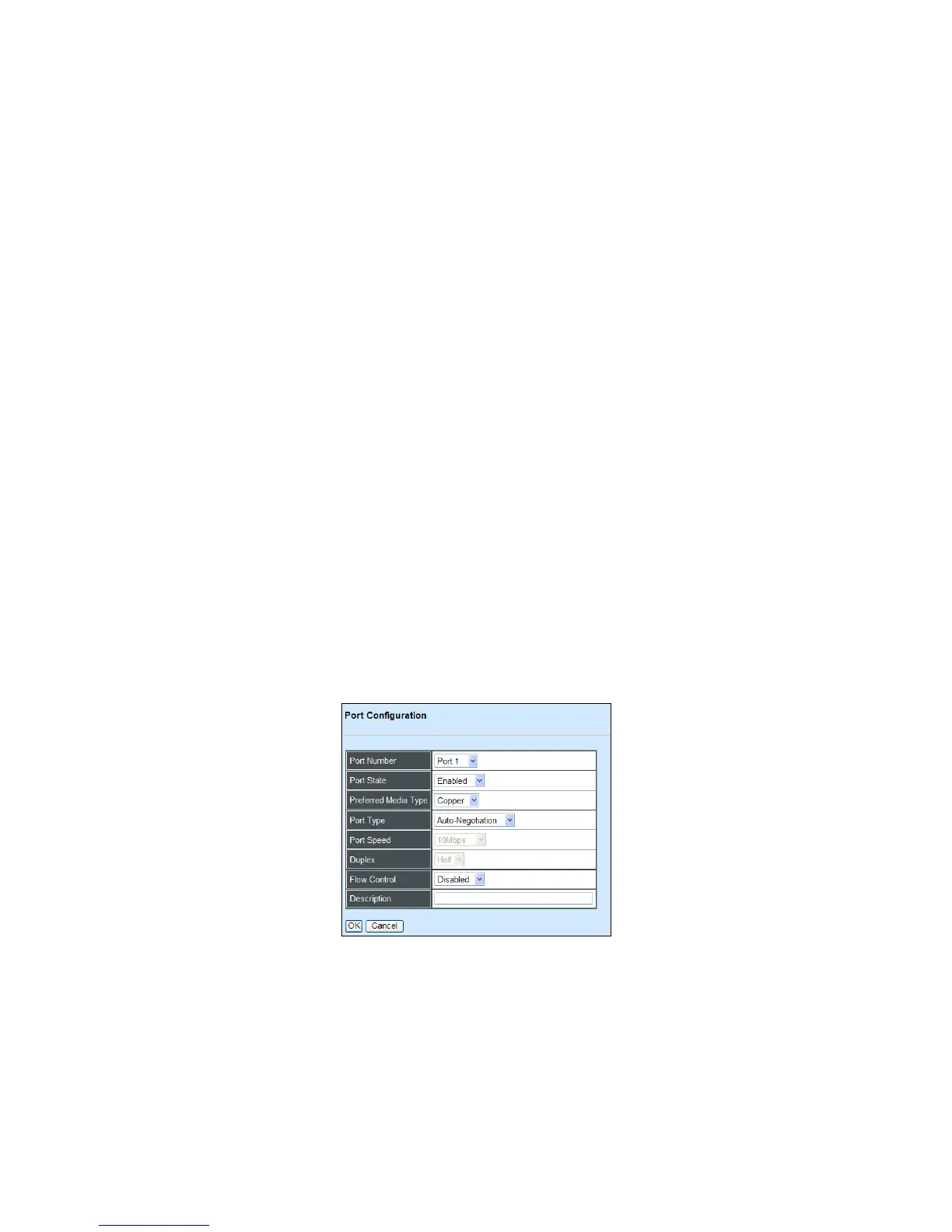

4.4.2 Port Configuration
Click the option Port Configuration from the Switch Management menu and then the following
screen page appears.
Port Number: Click the pull-down menu to select the port number for configuration.
Port State: Enable or disable the current port state.
Preferred Media Type: Select copper or fiber as the preferred media type.
Port Type: Select Auto-Negotiation or Manual mode as the port type.
Port Speed: When you select Manual port type, you can further specify the transmission speed
(10Mbps/100Mbps/1000Mbps) of the port(s).
