4.5.4 Port Packet Analysis Statistics

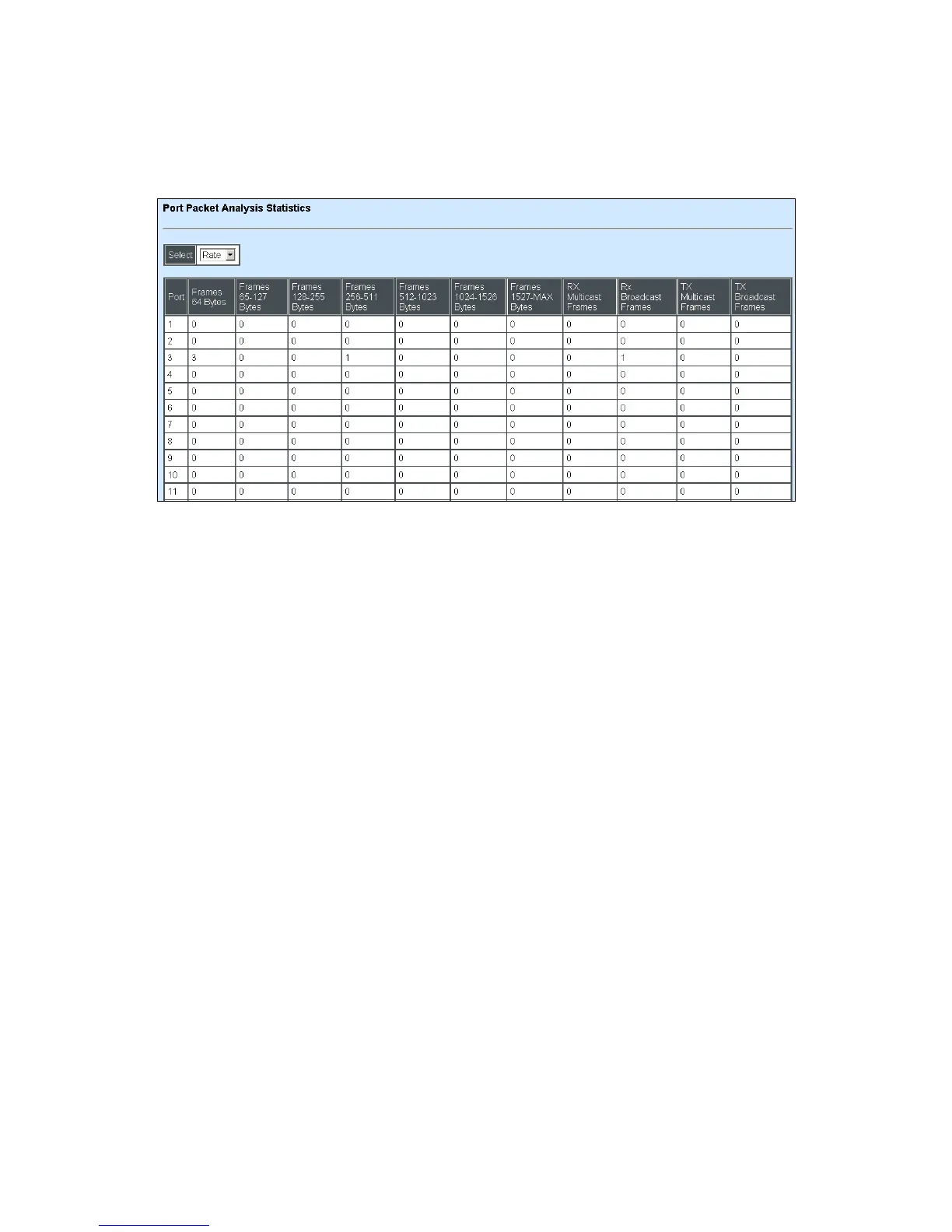

Port Packet Analysis Statistics Mode Counters allow users to view the port analysis history of
the Managed Switch. Event mode counters are calculated since the last time that counter was
reset or cleared. Select Port Packet Analysis Statistics from the Switch Monitor menu and then
the following screen page appears.
Select: Choose the Packet Error Statistics from the pull-down menu.
Frames 64 Bytes: 64 bytes frames received.
Frames 65-127 Bytes: 65-127 bytes frames received.
Frames 128-255 Bytes: 128-255 bytes frames received.
Frames 256-511 Bytes: 256-511 bytes frames received.
Frames 512-1023 Bytes: 512-1023 bytes frames received.
Frames 1024-1518 Bytes: 1024-1518 bytes frames received.
Frames 1519-MAX Bytes: Over 1519 bytes frames received.
Multicast Frames RX: Good multicast frames received.
Broadcast Frames RX: Good broadcast frames received.
Multicast frames TX: Good multicast packets sent.
Broadcast Frames TX: Good broadcast packets sent.
Clear all: This will clear all port‟s counter values and be set back to zero.
