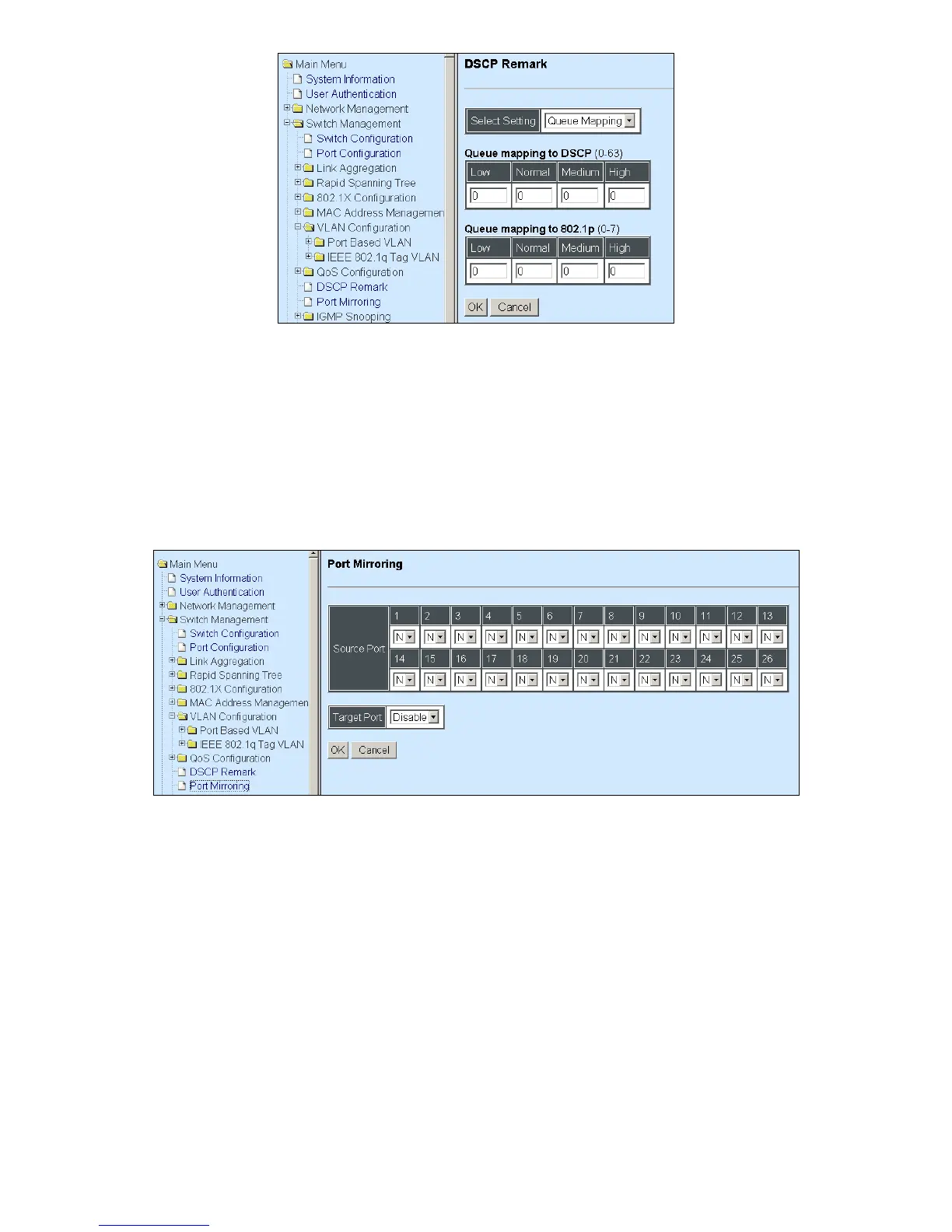

DSCP mapping to Queue: Assign a value (0~63) to four different levels.
802.1p mapping to Queue: Assign a value (0~7) to four different levels.
4.4.10 Port Mirroring
In order to allow Target Port to mirror Source Port and enable traffic monitoring, select the option
Port Mirroring from the Switch Management menu and then the following screen page appears.
Source Port: Choose “Y” (enable) or “N” (disable) from the pull-down menu to enable or disable
Target Port‟s mirroring on the TX and RX of Source port.
Target Port: Select the preferred target port for mirroring or select Disable to turn off port
mirroring function. When enabled, the traffic flowing from the selected source ports will be copied
to this target port for monitoring.
