4.5.6.1 RSTP VLAN Bridge Overview
RSTP VLAN Bridge Overview allows users to view a list of all RSTP VLANs‟ brief information,
such as VLAN ID, Bridge ID, topology status and Root ID and to obtain detailed VLAN information

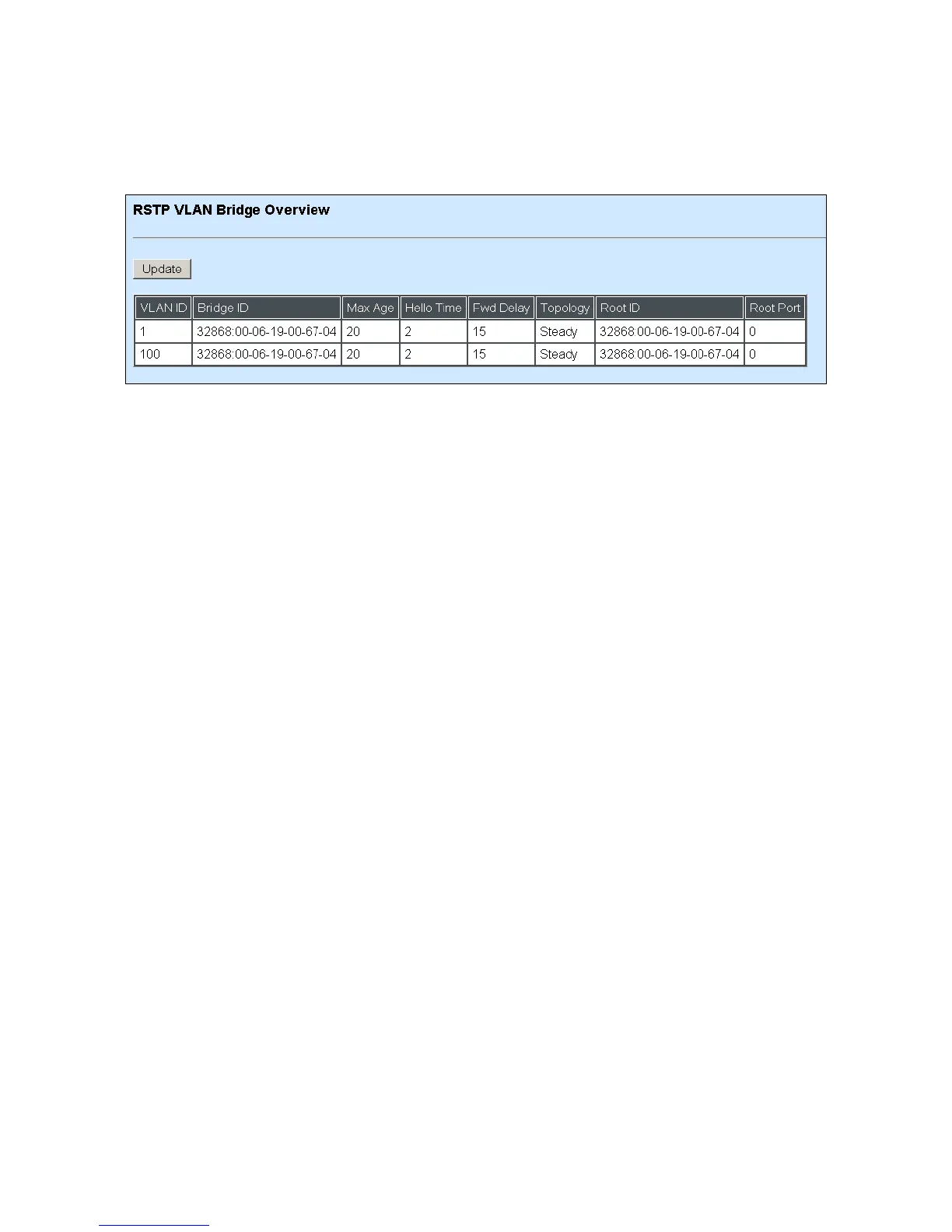

after selecting. Select RSTP VLAN Bridge Overview from the RSTP Monitor menu and then the
following screen page appears.
In this page, you can find the following information about RSTP VLAN bridge:
Update: Update the current status.
VLAN ID: VID of the specific VLAN
Bridge ID: RSTP Bridge ID of the Managed Switch in a specific VLAN.
Max Age: Max Age setting of the Managed Switch in a specific VLAN.
Hello Time: Hello Time setting of the Managed Switch in a specific VLAN.
Forward Delay: The Managed Switch‟s setting of Forward Delay Time in a specific VLAN.
Topology: The state of the topology.
Topology Count: The count of the topology changing.
Last topology: The state of last topology.
Root ID: Display this Managed Switch‟s Root ID.
Root port: Display this Managed Switch‟s Root Port Number.
