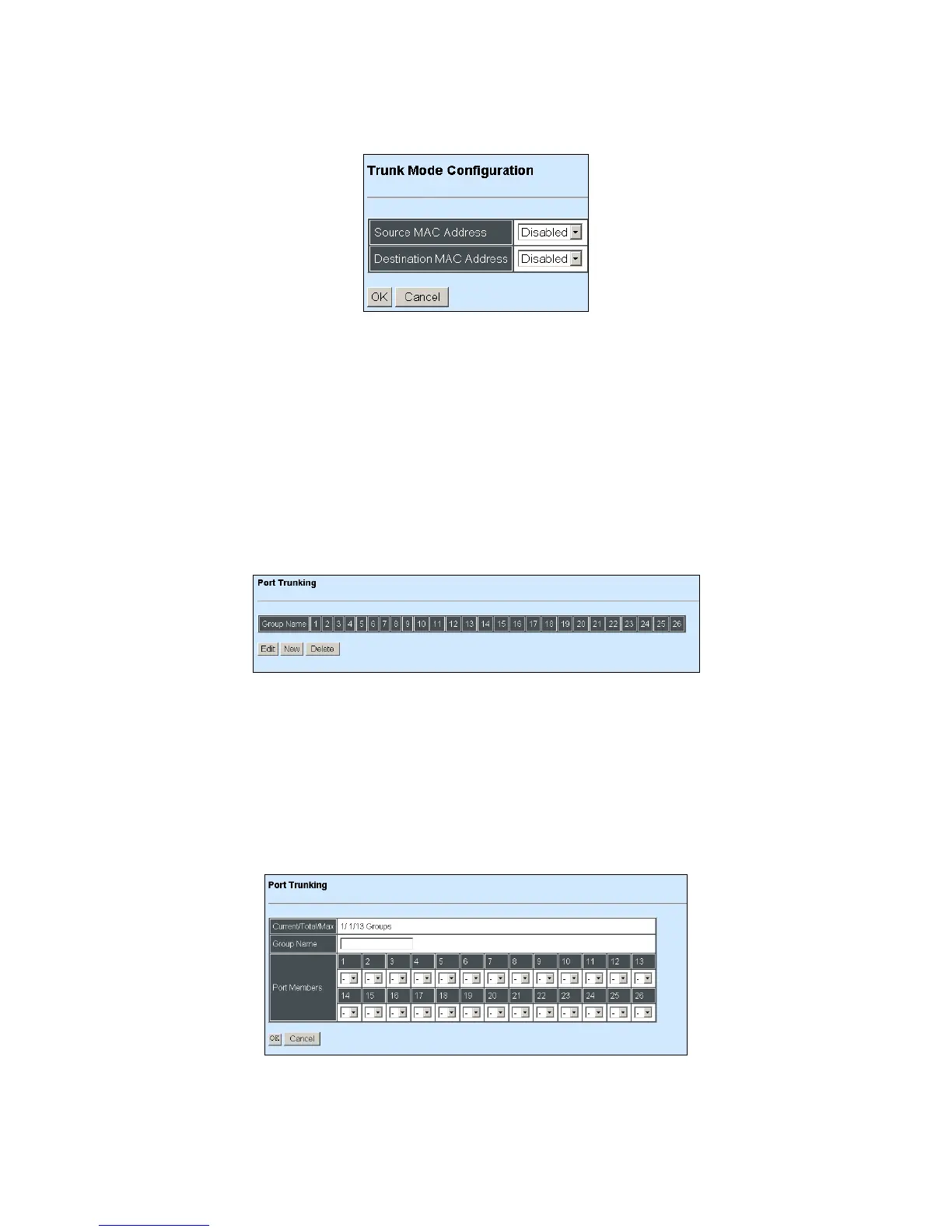

4.4.3.1 Trunk Mode Configuration
Click the option Trunk Mode Configuration from the Link Aggregation menu, the following
screen page appears.
There are two fields for you to set up packets according to operations.
Source MAC Address: Enable or disable packets according to source MAC address.
Destination MAC Address: Enable or disable packets according to Destination MAC address.
4.4.3.2 Port Trunk Configuration
Click the option Port Trunk Configuration from the Link Aggregation menu and then the
following screen page appears.
The Managed Switch allows users to create 13 trunking groups. Each group consists of 2 to 16
links (ports).
Click New to add a new trunk group and then the following screen page appears.
Click Delete to remove a current registered trunking group setting.
Click Edit to view and edit a registered trunking group‟s settings.
Group Name: Specify the trunking group name, up to 15 alphanumeric characters.
Port Members: Select ports that belong to the specified trunking group. Please keep the rules
below in mind when assign ports to a trunking group.
