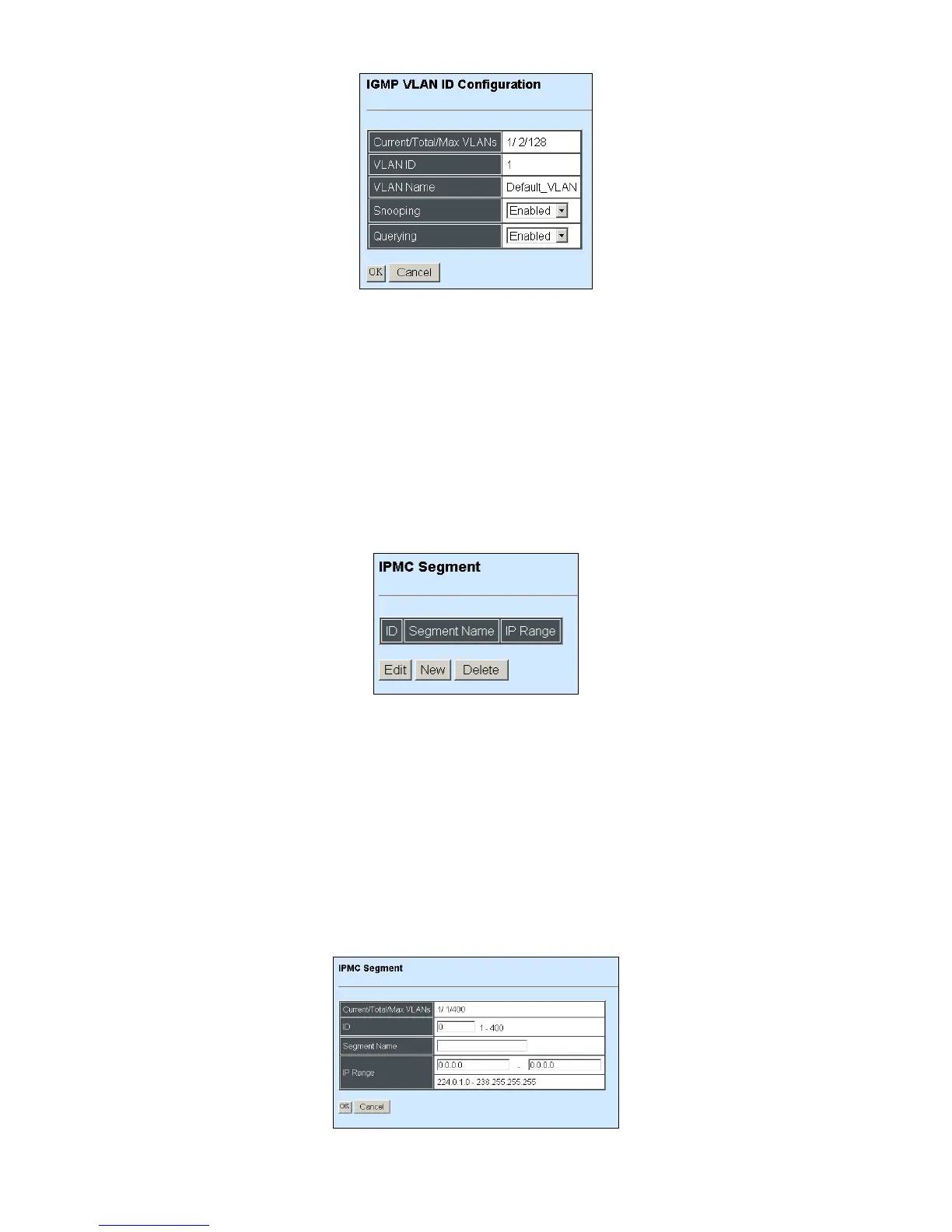

Snooping: When enabled, the port in VLAN will monitor network traffic and determine which hosts
to receive the multicast traffic.
Querying: When enabled, the port in VLAN can serve as the Querier which is responsible for
asking hosts whether they want to receive multicast traffic.
4.4.11.3 IPMC Segment
Select the option IPMC Segment from the IGMP Snooping menu and then the following screen
page with the ability information of IPMC Segment ID, Name and IP Range appears.
ID: View-only field that shows the current registered ID number.
Segment Name: View-only field that shows the current registered Name.
IP Range: View-only field that shows the current registered IP Range.
Click New to register a new IPMC Segment and then the following screen page appears.
Click Edit to edit and view the IPMC Segment settings.
Click Delete to remove a current IPMC Segment registration.
