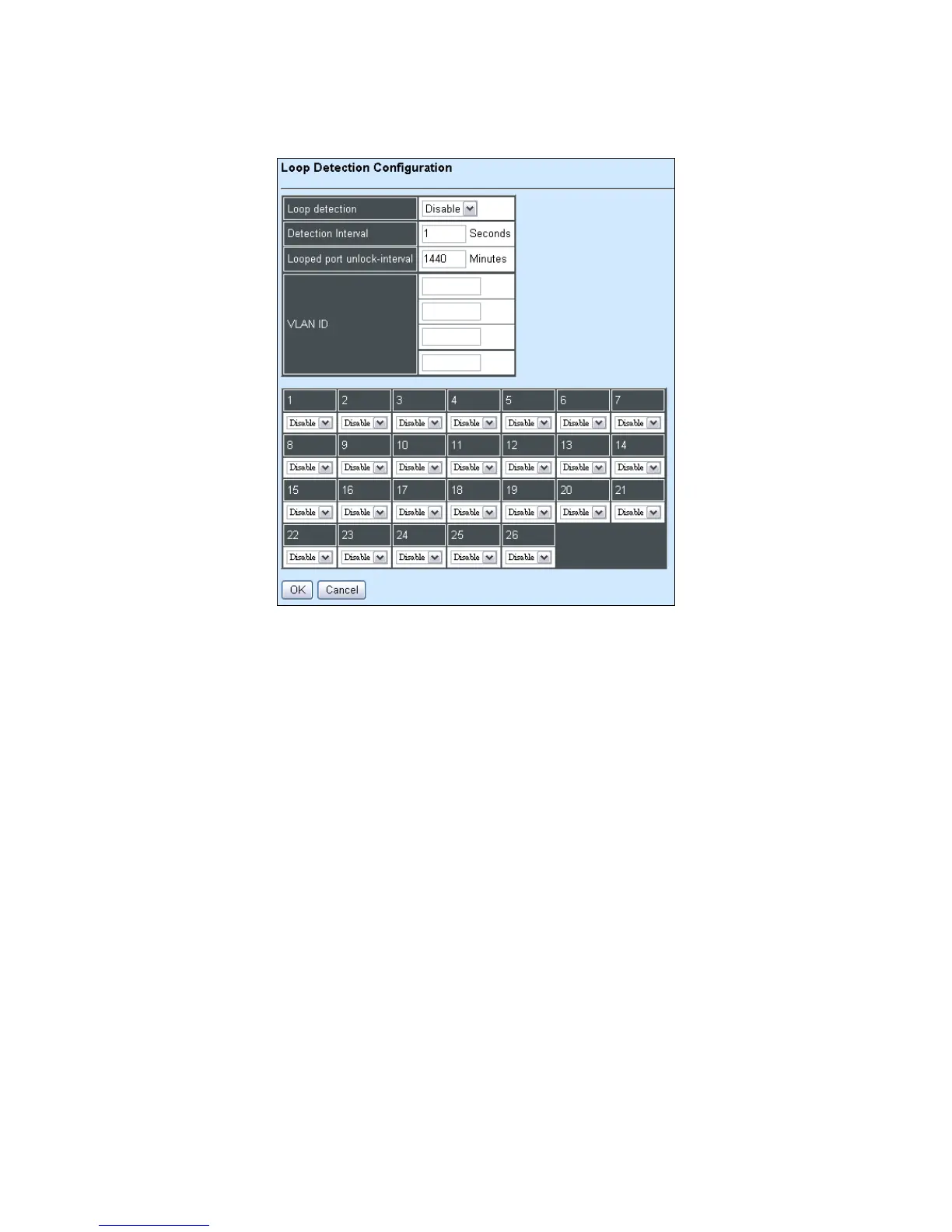

4.4.17 Loop Detection Configuration
To set up Loop Detection function, select the option Loop Detection Configuration from the
Switch Management menu and then the following screen page appears.
Loop Detection: Enable or disable Loop Detection function.
Detection Interval: Specify the time interval of performing Loop Detection. The maximum time
interval is 180 seconds.
Looped port unlock-interval: Specify the time interval of unlocking looped ports. The maximum
time interval is 1440 minutes.
VLAN ID: Specify the VLANs where Loop Detection will be performed.
Port 1~26: Enable or disabled Loop Detection function on the specific port(s).
