VLAN ID: Specify a VLAN ID between 1 and 4094.
VLAN Members: If you select “V” from the pull-down menu, it denotes that the ports selected
belong to the specified VLAN.

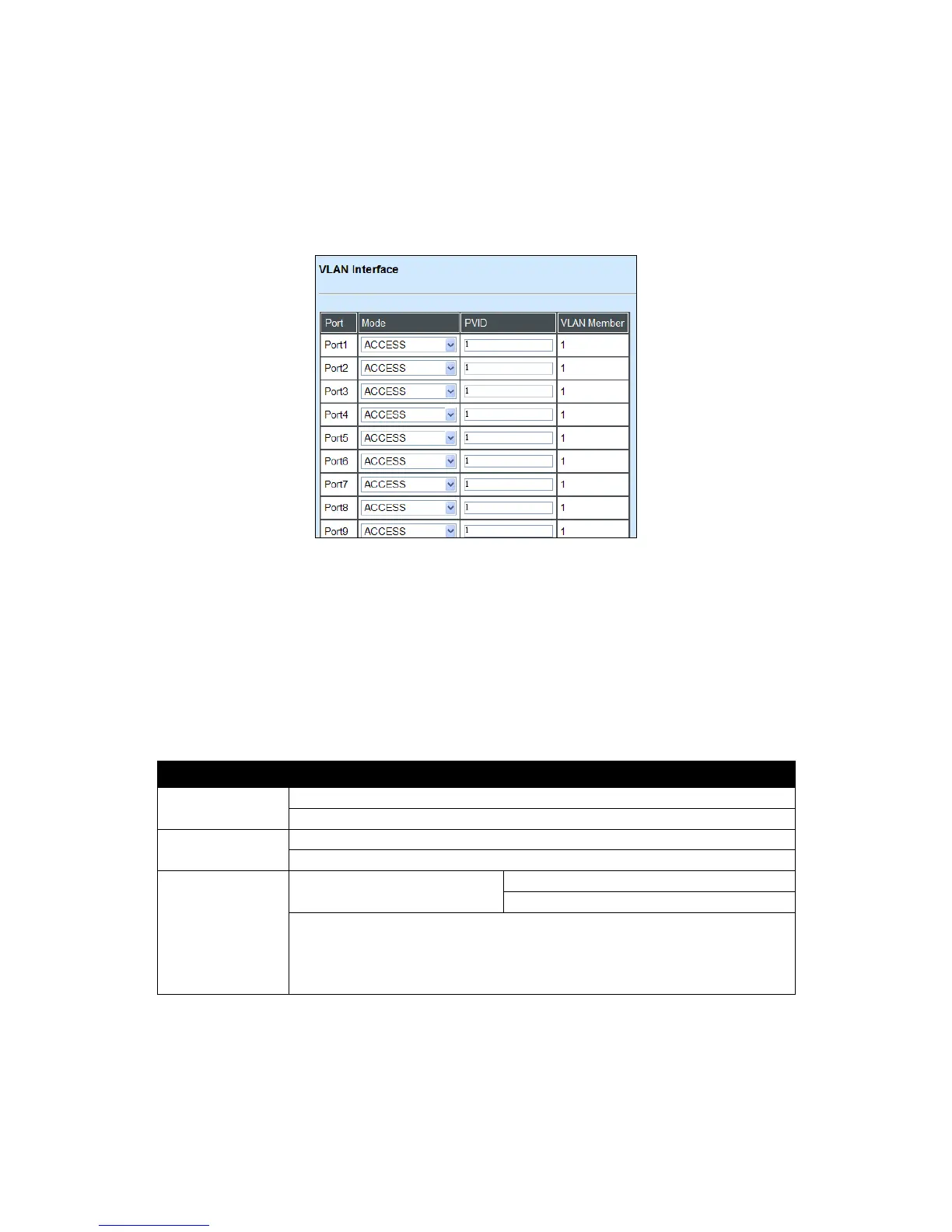

4.4.7.4.2 VLAN Interface
The following screen page appears if you choose VLAN Interface.
Mode: Select the appropriate mode for each port.
Access: Set the selected port to access mode (untagged).
Trunk: Set the selected port to trunk mode (tagged).
Trunk-Native: Enable native VLAN for untagged traffic on the selected port.
Dot1q-Tunnel: Enable Q-in-Q function on the selected port.
Receive untagged packets only. Drop tagged packets.
Send untagged packets only.
Receive tagged packets only. Drop untagged packets.
Send tagged packets only.
Receive both untagged
and tagged packets
Untagged packets: PVID is added
Tagged packets: Stay intact
When sending packets, PVID and VID will be compared.
If PVID and VID are the same, PVID will be removed.
If PVID and VID are different, the packets with the original tag
(VID) will be sent.
PVID: Specify the selected ports‟ VLAN ID (PVID).
VLAN Member: This shows the VLAN ID to which a port belongs.
