Current: This shows the number of current registered MVR VLAN configuration.
Total: This shows the total number of registered MVR VLAN configuration.
Max: This shows the maximum number available for MVR VLAN configuration.
VLAN: Specify a VLAN ID for multicast VLAN.
Receive port: Indicate the MVR receive port.
Source port: Indicate the MVR source port.
4.4.13.2 MVR Group

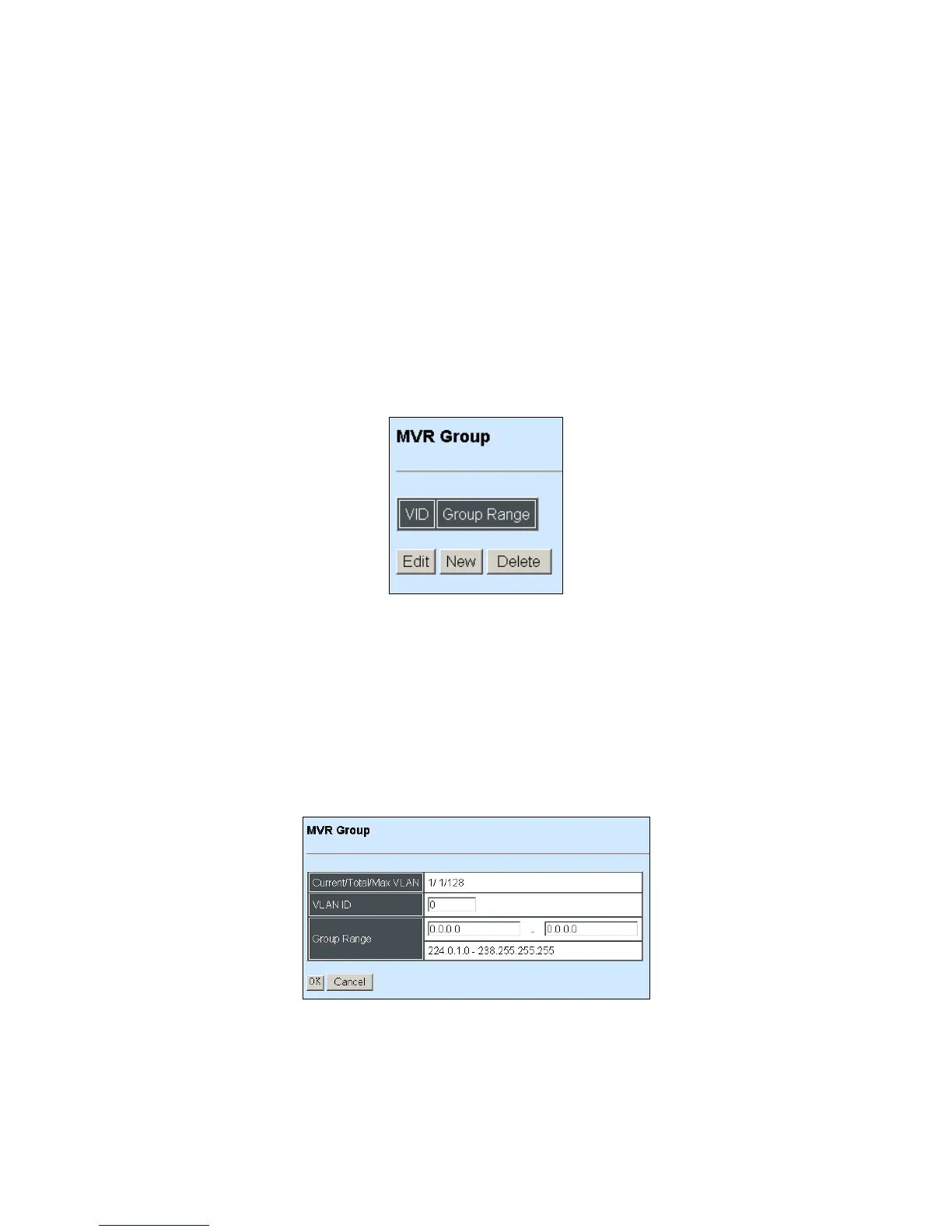

Select the option MVR Group from the MVR Configuration menu and then the following screen
page appears.
VLAN: View-only field that shows the current MVR VLAN ID.
Group Range: View-only field that shows the MVR Group Range.
Click New to register a new MVR Group and then the following screen page appears.
Click Edit to edit and view the MVR Group settings.
Click Delete to remove a current MVR Group.
Current/Total/Max Group Nums: View-only field.
Current: This shows the number of current registered MVR Group.
Total: This shows the total number of registered MVR Groups.
Max: This shows the maximum number available for registered MVR Group.
