4.5.3 Port Packet Error
Port Packet Error Statistics mode counters allow users to view the port error of the Managed
Switch. The event mode counter is calculated since the last time that counter was reset or cleared.

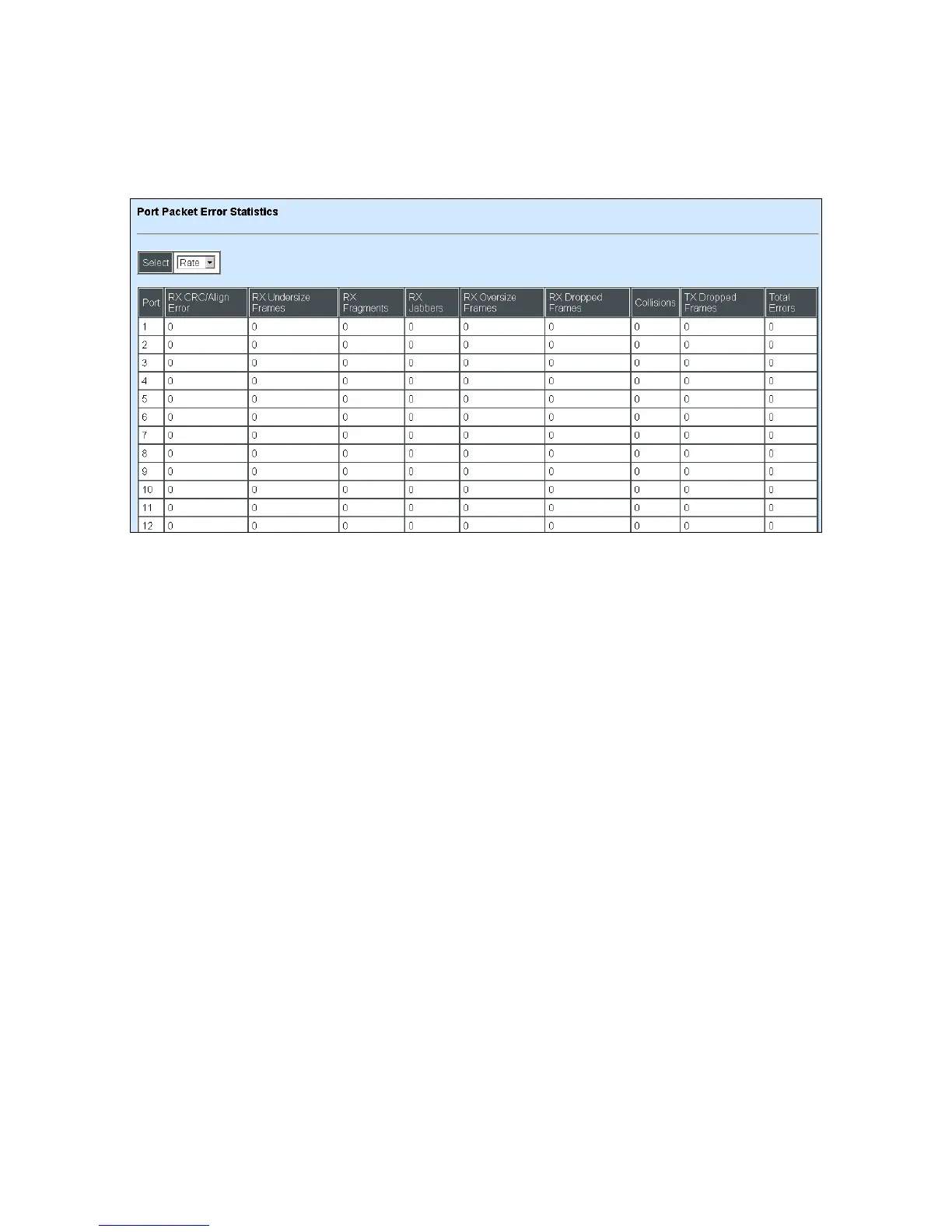

Select Port Packet Error Statistics from the Switch Monitor menu and then the following screen
page appears.
Select: Choose the Packet Error Statistics from the pull-down menu.
RX CRC/Align Error: CRC/Align Error frames received.
RX Undersize Frames: Undersize frames received.
RX Fragments Frames: Fragments frames received.
RX Jabber Frames: Jabber frames received.
RX Oversize Frames: Oversize frames received.
RX Dropped Frames: Drop frames received.
Collision: Each port‟s Collision frames.
TX Dropped Frames: Drop frames sent.
Clear All: This will clear all port's counter values and be set back to zero.
