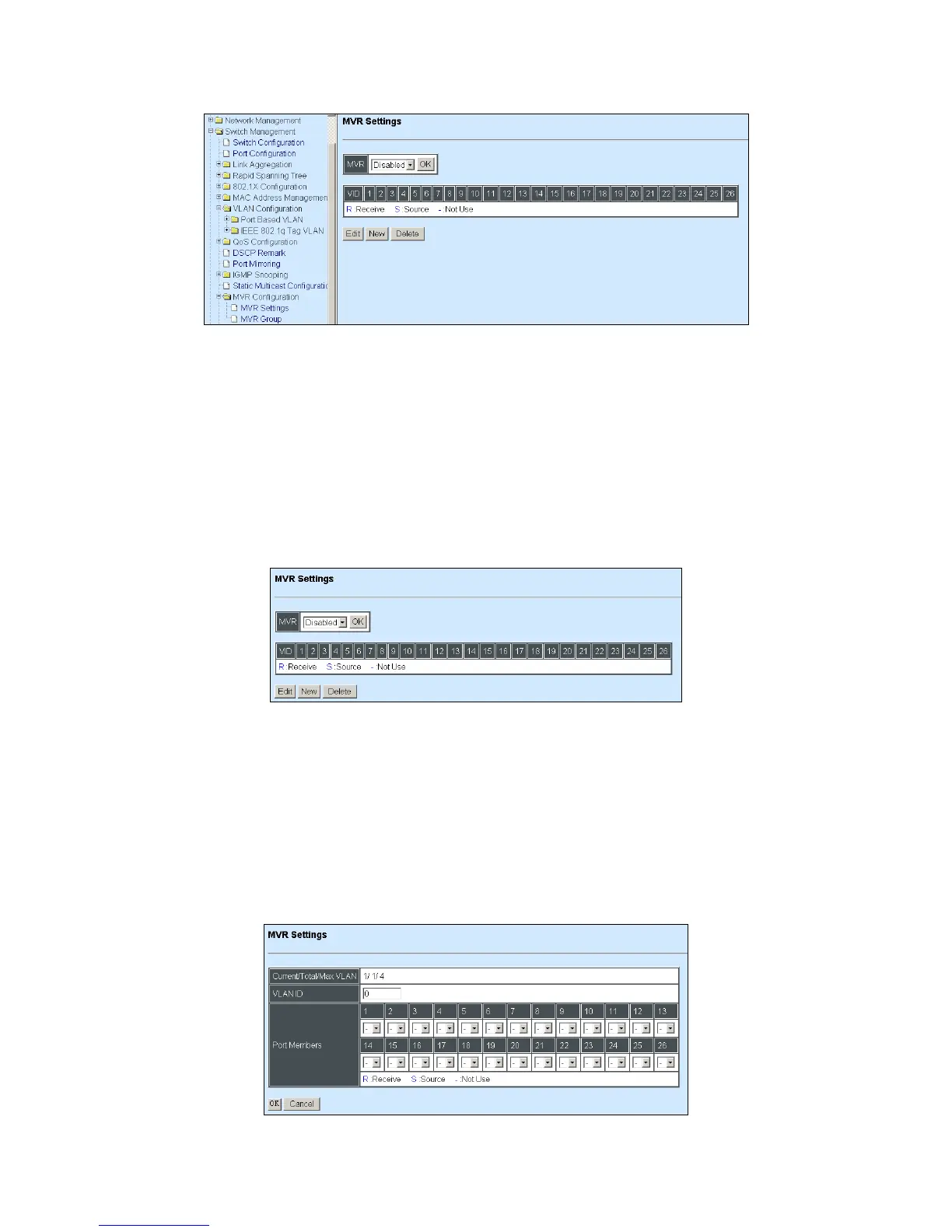

Click the folder MVR Configuration from the Switch Management menu and then the following
screen page appears.
1. MVR Port Settings: To enable or disable MRV global settings and create MVR VLAN to
indicate the Source and Receive port.
2. MVR Group: Create MVR Groups whose multicasting stream would belong to MVR VLAN.
4.4.13.1 MVR Settings
Select the option MVR Settings from the MVR Configuration menu and then the following screen
page appears.
MVR: To enable or disable MVR global settings.
VID: View-only field that shows the specified MVR VLAN ID for current configuration.
Click New to register a new MVR VLAN ID and then the following screen page appears.
Click Edit to edit MVR settings.
Use Delete to remove a current MVR VLAN ID.
Current/Total/Max Multicast Nums: View-only field.
