4.5.5.2 LACP Statistics

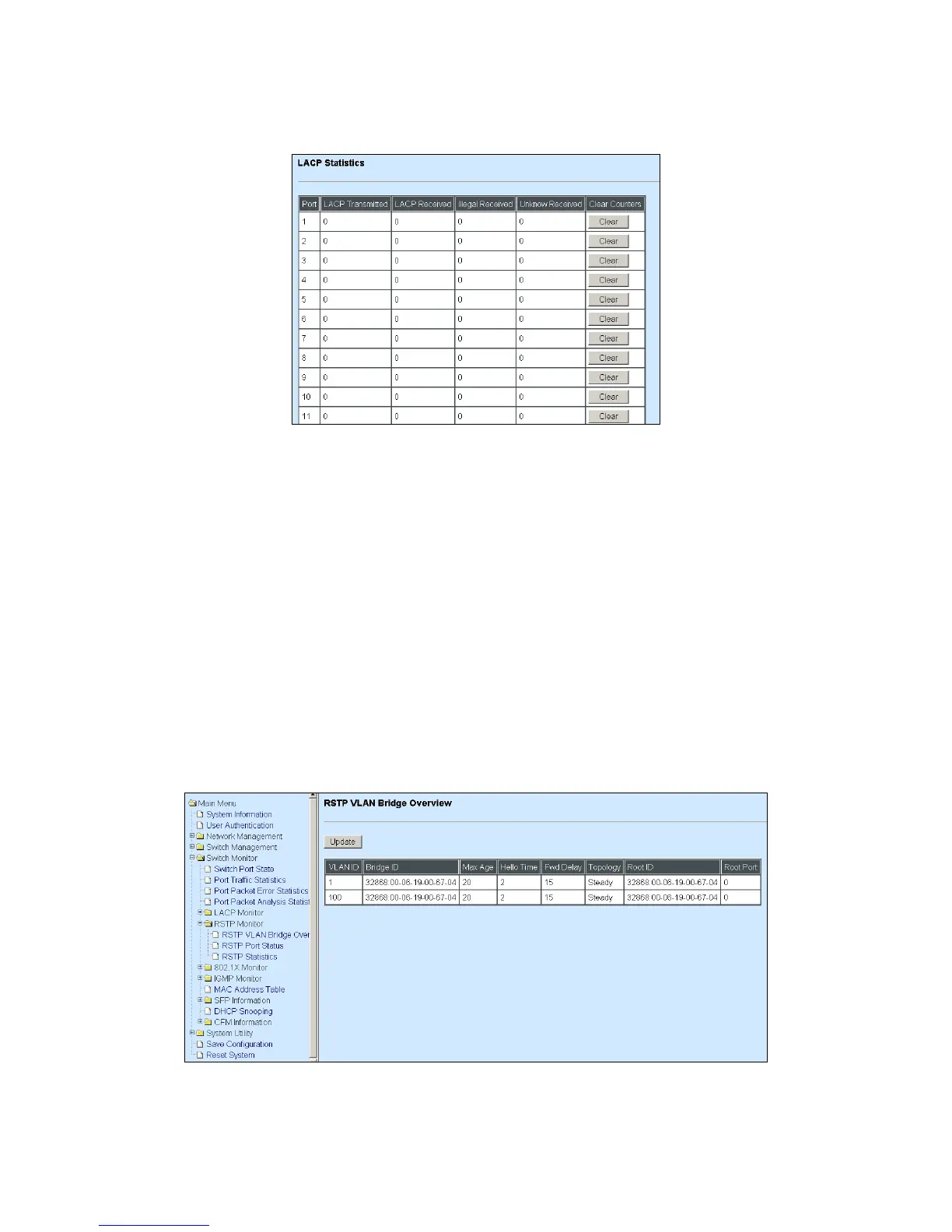

In order to view the real-time LACP statistics status of the Managed Switch, select LACP
Statistics from the LACP Monitor menu and then the following screen page appears.
Port: LACP packets (LACPDU) transmitted or received from current port.
LACP Transmitted: Packets transmitted from current port.
LACP Received: Packets received form current port.
Illegal Received: Illegal packets received from current port.
Unknown Received: Unknown packets received from current port.
Clear Counter: Clear the statistics of the current port.
4.5.6 RSTP Monitor
Click the RSTP Monitor folder and then three options appear.
