Chassis ID: View-only field that shows the MAC address of the LLDP frames received (the MAC
address of the neighboring device).
Remote Port: View-only field that shows the port number of the neighboring device.
System Name: View-only field that shows the system name advertised by the neighboring device.
Port Description: View-only field that shows the port description of the remote port.
System Capabilities: View-only field that shows the capability of the neighboring device.
Management Address: View-only field that shows the IP address of the neighboring device.
4.5.13 Loop Detection Status

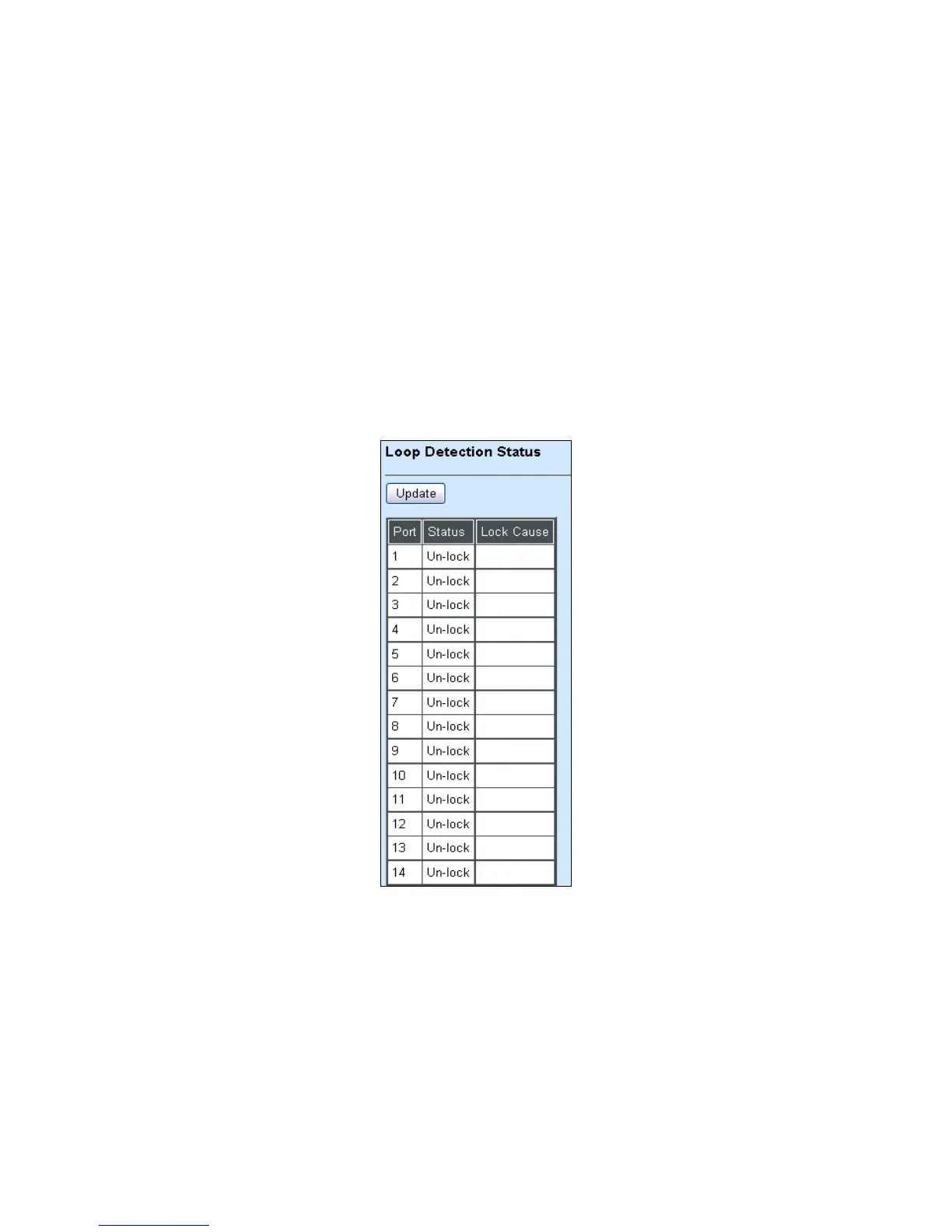

Select Loop Detection Status from the Switch Monitor menu and then the following screen page
appears.
1. Status: View-only filed that shows the loop status of each port.
2. Lock Cause: View-only filed that shows the cause why the port is locked.
Click Update to refresh the Loop Detection status of each port.
