Unauthorized: This forces the Managed Switch to deny access to all clients, either 802.1X-aware
or 802.1X-unaware.
Auto: This requires 802.1X-aware clients to be authorized by the authentication server. Accesses
from clients that are not dot1x‑ aware will be denied.

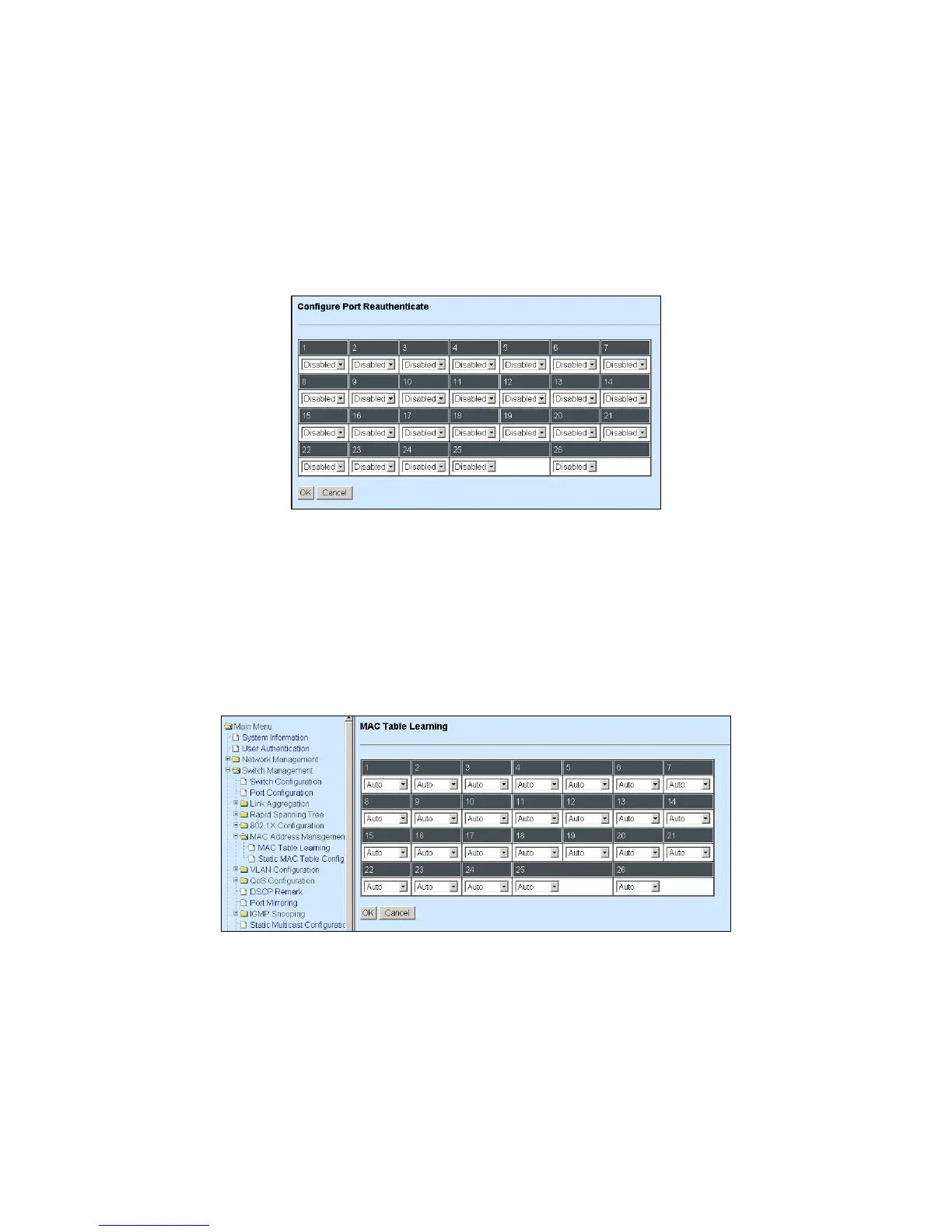

4.4.5.3 Configure Port Reauthenticate
Click the option Configure Port Reauthenticate from the 802.1X Configuration menu and then
the following screen page appears.
This allows users to enable or disable port Reauthenticate. When enabled, the authentication
message will be sent immediately after you click the “OK” button.
4.4.6 MAC Address Management
Click the folder MAC Address Management from the Switch Management menu and then the
following screen page appears.
1. MAC Table Learning: To enable or disable learning MAC address function.
2. Static MAC Table Configuration: To create, edit or delete Static MAC Table setting.
