4.6.1 Event Log

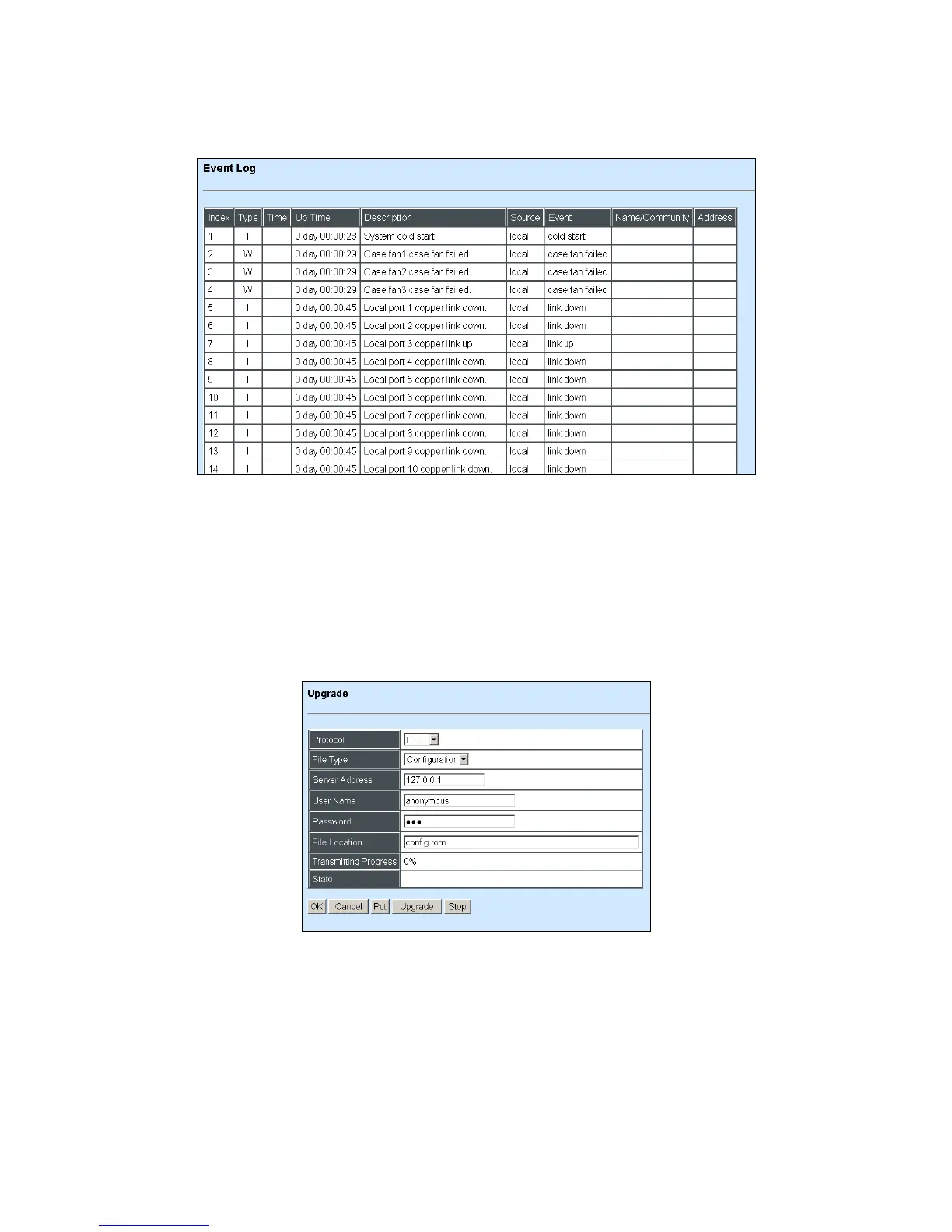

Event log keep a record of user login and logout timestamp information. Select Event Log from
the System Utility menu and then the following screen page appears.
Click Clear to clear all Event log records.
4.6.2 Update
The Managed Switch has both built-in TFTP and FTP clients. Users may save or restore their
configuration and update their Firmware on-line. Select Update from the System Utility menu and
then the following screen page appears.
Protocol: Select the preferred protocol, either FTP or TFTP.
File Type: Select the file to process, either Firmware or Configuration.
Server Address: Enter the specific IP address of the File Server.
User Name: Enter the specific username to access the File Server.
Password: Enter the specific password to access the File Server.
File Location: Enter the specific path and filename within the File Server.
