4.4 Switch Management
In order to manage the Managed switch and set up required switching functions, click the folder
Switch Management from the Main Menu and then several options and folders will be displayed
for your selection.

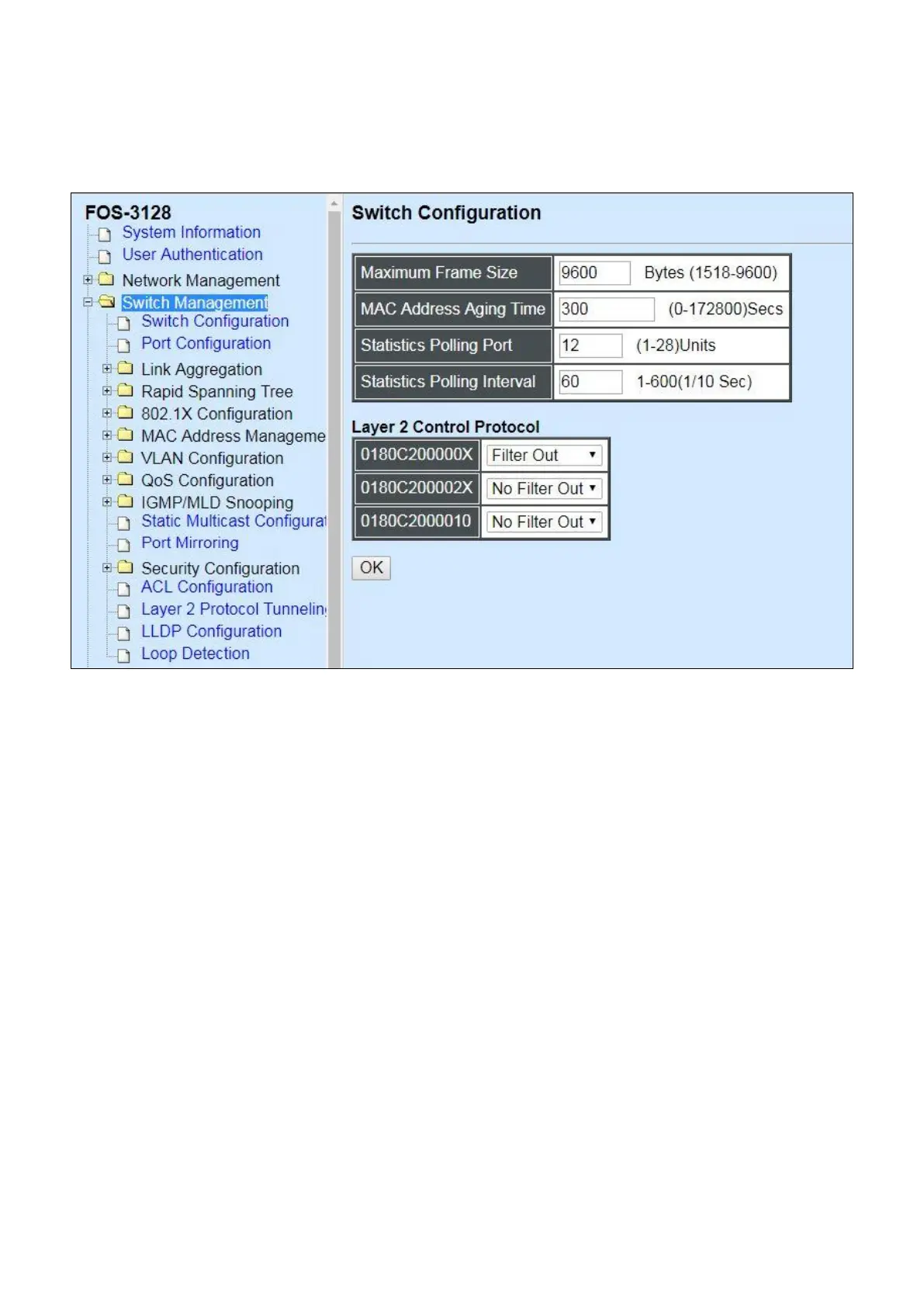

1. Switch Configuration: Set up frame size, address learning, etc.
2. Port Configuration: Enable or disable port speed, flow control, etc.
3. Link Aggregation: Set up port trunk and LACP port configuration.
4. Rapid Spanning Tree: Set up RSTP switch settings, aggregated port settings, physical port
settings, etc.
5. 802.1X Configuration: Set up the 802.1X system, port Admin state, port reauthenticate.
6. MAC Address Management: Set up MAC address, enable or disable MAC security, etc.
7. VLAN Configuration: Set up VLAN mode and VLAN configuration.
8. QoS Configuration: Set up the priority queuing, rate limit and storm control.
9. IGMP/MLD Snooping: Configure IGMP/MLD Snooping parameters.
10. Static Multicast Configuration: To create, edit or delete Static Multicast table.
11. Port Mirroring: Set up target port mirrors source port to enable traffic monitoring.
12. Security Configuration: Set up DHCP Snooping, DHCP Option 82 / DHCPv6 Option 37 relay
agent, port isolation, storm control, MAC limiter, static IP/IPv6 table configuration, and so on.
