253

4.5.17 Layer 2 Protocol Tunneling Status

Layer 2 Protocol Tunneling Status displays the state of each Layer 2 protocol data units (PDUs),

and each PDU’s encapsulation as well as decapsulation statistics. Select Layer 2 Protocol

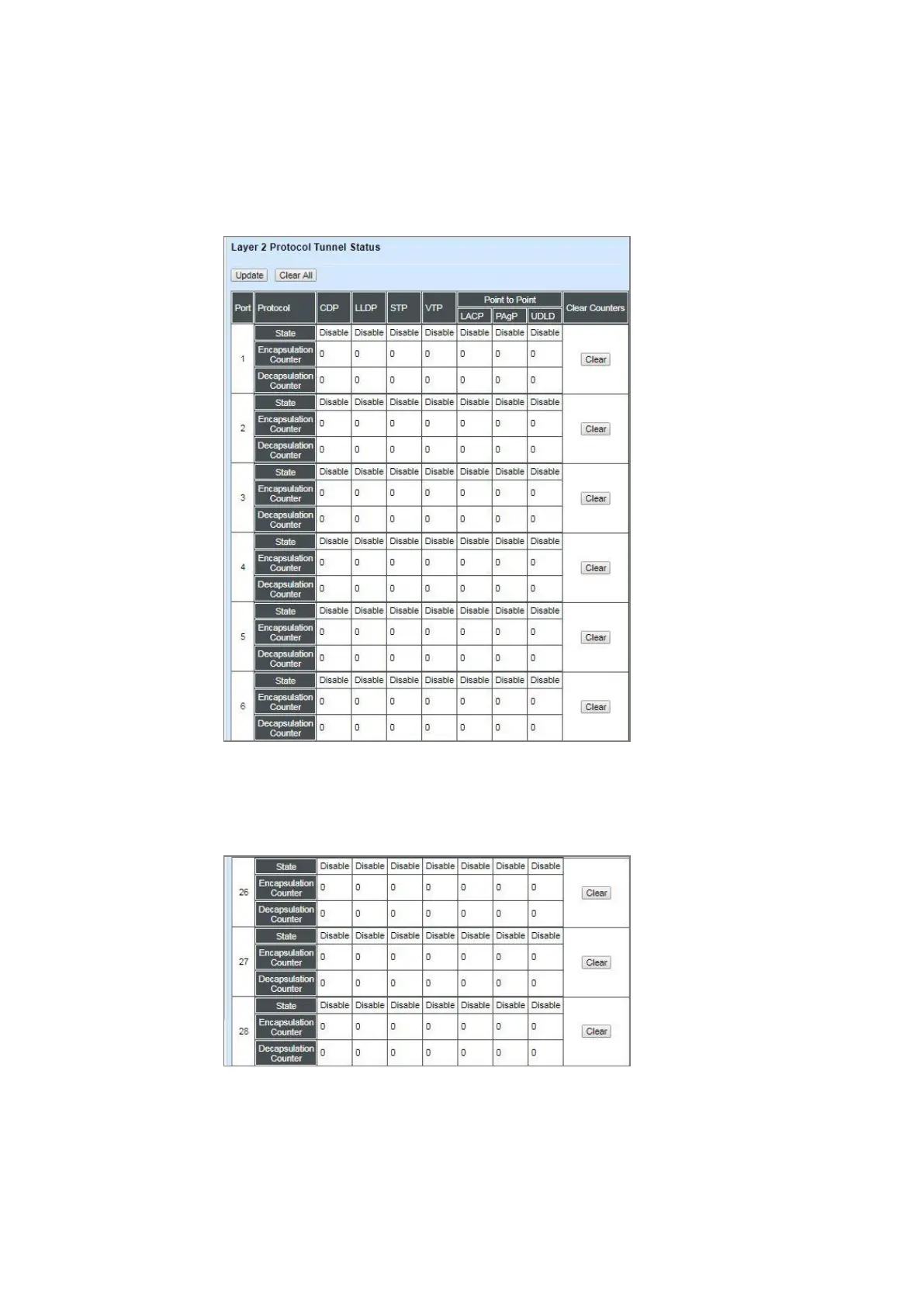

Tunneling Status option from the Switch Monitor menu and then the following screen page

appears.

Click Update to update the Layer 2 Protocol Tunneling Status table.

Clear button in Clear Counters field: Clear the encapsulation and decapsulation statistics of each

PDU for the corresponding port.

Clear All: Clear all ports’ encapsulation and decapsulation statistics of each PDU.
