241

4.5.11 802.1X Monitor

Click the 802.1X Monitor folder and then two options within this folder will be displayed.

4.5.11.1 802.1X Port Status

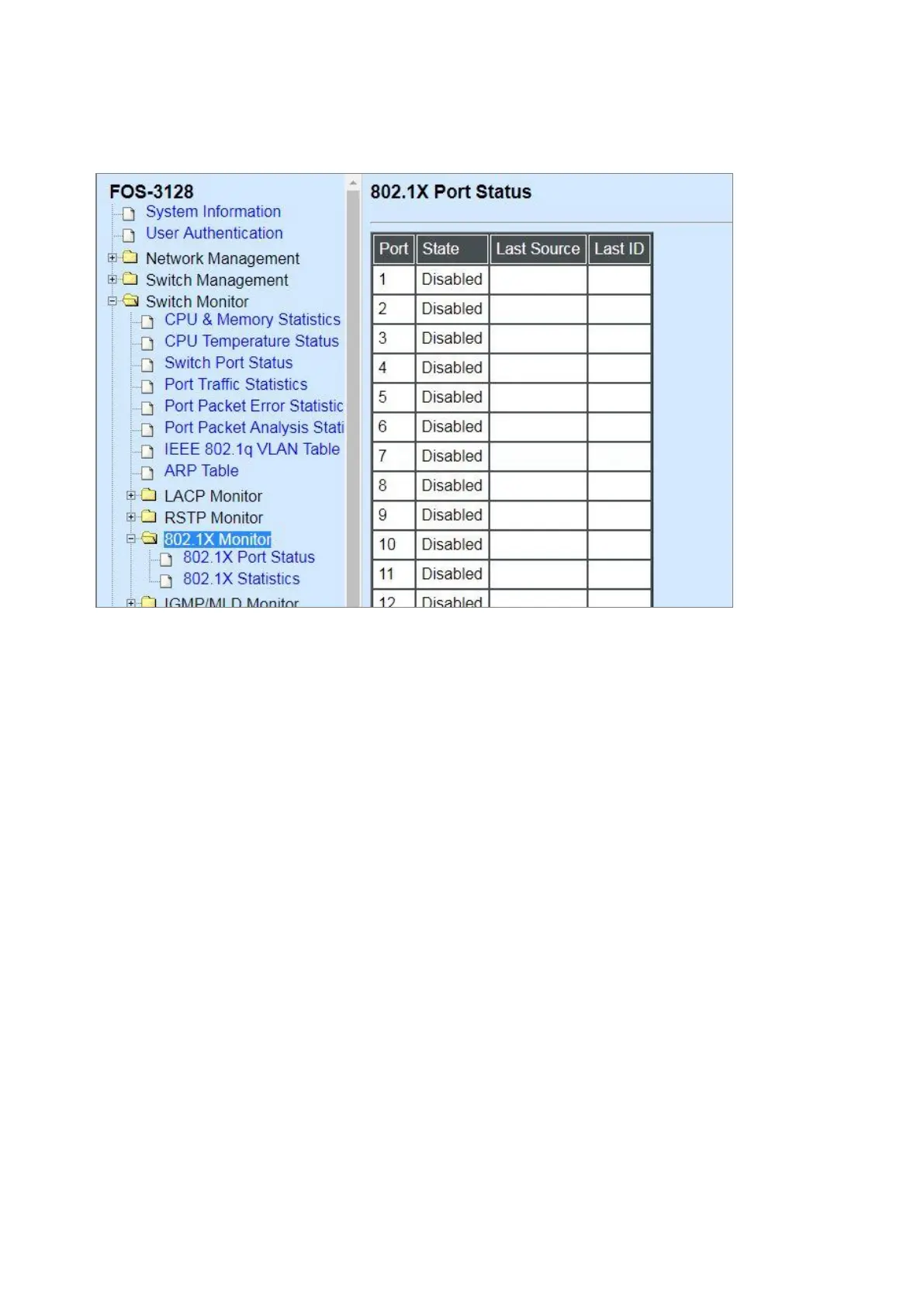

802.1X Port Status allows users to view a list of all 802.1x ports’ information. Select 802.1X Port

Status from the 802.1x Monitor menu and then the following screen page appears. In this

webpage, you can find the following information about 802.1X ports:

Port: The number of the port.

Port State: Display the number of the port 802.1x link state LinkDown or LinkUp.

Last Source: Display the MAC address of the port’s last Source.

Last ID: Display the username of the port’s last login.
