4.5 Switch Monitor
Switch Monitor allows users to monitor the real-time operation status of the Managed Switch.
Users may monitor the port link-up status or traffic counters for maintenance or diagnostic
purposes. Select the folder Switch Monitor from the Main Menu and then several options and
folders will be displayed for your selection

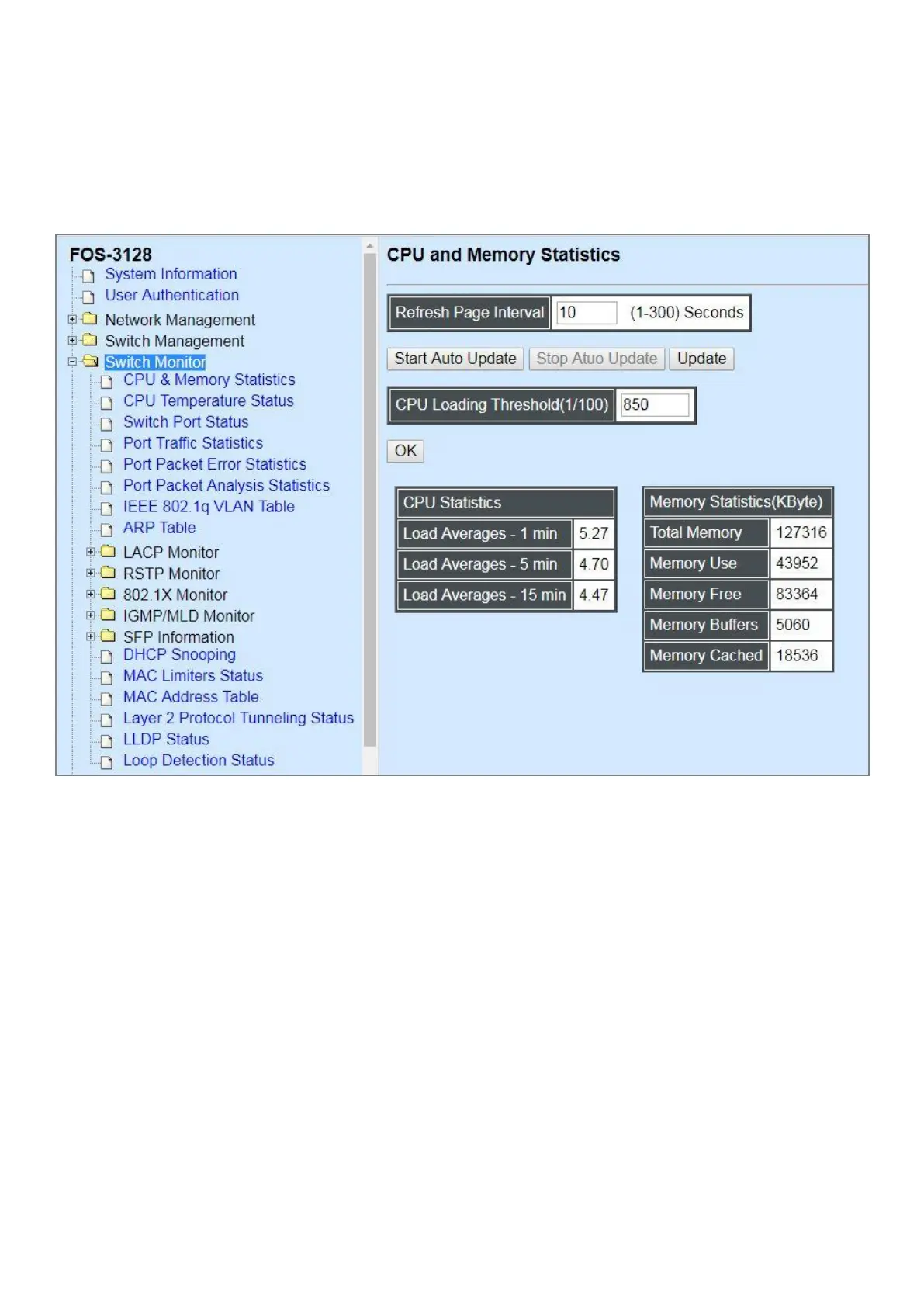

1. CPU & Memory Statistics: Manually or automatically update statistics of CPU & Memory and
view them.
2. CPU Temperature Status: Manually or automatically update the current CPU temperature as
well as the CPU temperature record, and configure the cpu-temperature alarm notification.
3. Switch Port Staus: View current port media type, port state, etc.
4. Port Traffic Statistics: View each port’s frames and bytes received or sent, utilization, etc..
5. Port Packet Error Statistics: View each port’s traffic condition of error packets, e.g. CRC,
fragment, Jabber, etc.
6. Port Packet Analysis Statistics: View each port’s traffic condition of error packets, e.g.
RX/TX frames of Multicast and Broadcast, etc.
