4.5.5 Port Packet Error Statistics

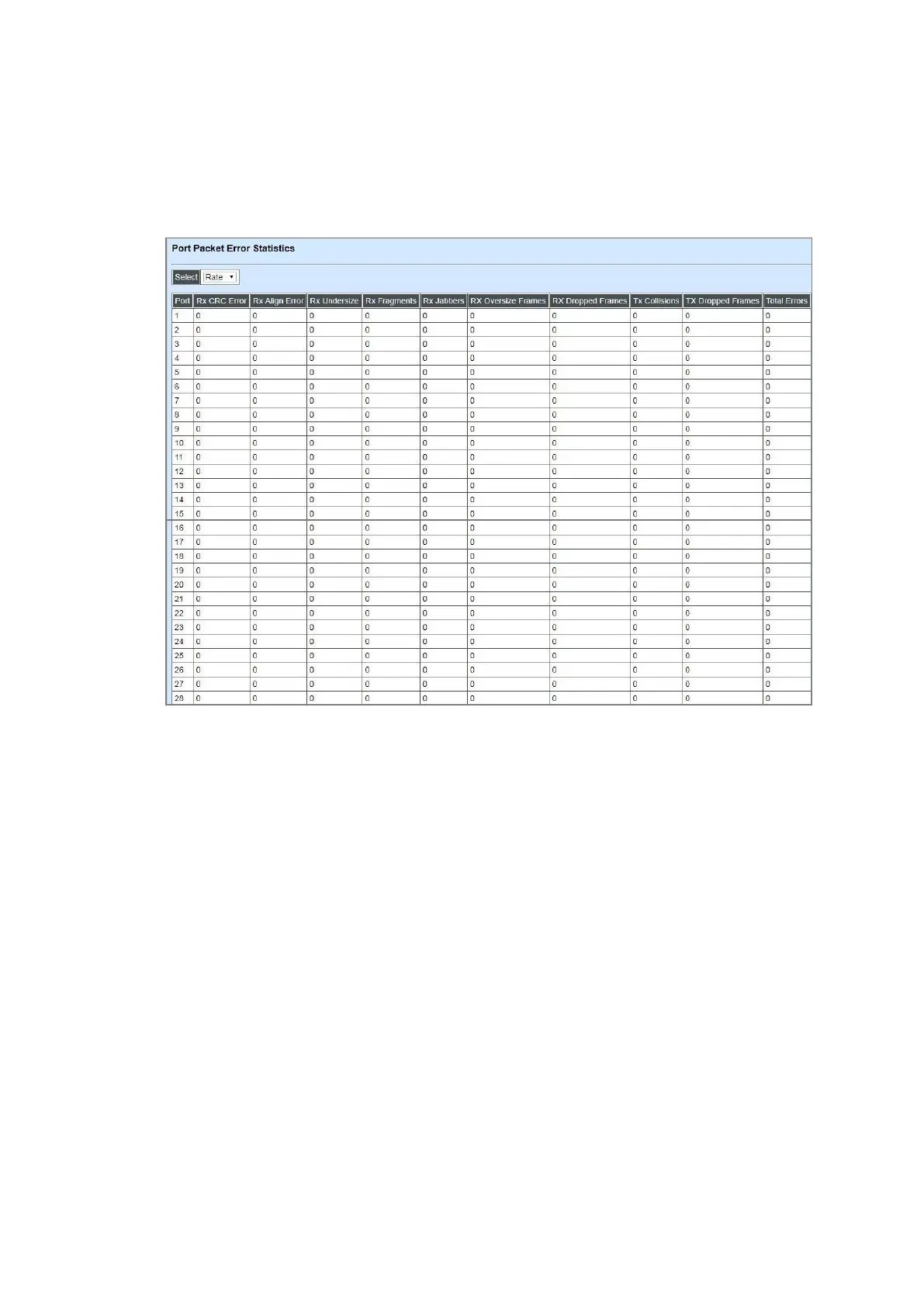

Port Packet Error Statistics mode counters allow users to view the port error of the Managed
Switch. The event mode counters are calculated since the last time that counter was reset or
cleared. Select Port Packet Error Statistics from the Switch Monitor menu and then the
following screen page appears.
Select: Choose the way of representing the Port Packet Error Statistics from the pull-down menu.
Either “Rate” or “Event” option can be chosen.
RX CRC/Align Error: CRC/Align Error frames received.
RX Undersize Frames: Undersize frames received.
RX Fragments Frames: Fragments frames received.
RX Jabber Frames: Jabber frames received.
RX Oversize Frames: Oversize frames received.
RX Dropped Frames: Drop frames received.
TX Collision: Each port’s Collision frames.
TX Dropped Frames: Drop frames sent.
Total Errors: Total error frames received.
Clear All: This will clear all port's counter values and be set back to zero if “Event” option is
chosen from Select pull-down menu.
