104 DSM0400 Fixed Mount Area Imager Bar Code Reader

Code 128 Set Length 1

Specifies one of the barcode lengths for Code 128. Length 1 is the minimum

label length if in

Variable Length on page 93

Mode, or the first fixed length if in

Fixed Length on page 93

Mode. Length includes the barcode’s data characters

only. The length can be set from 1 to 80 characters. For more detailed pro-

gramming instructions, see "Set Length" on

Chapter 4, References

Table 3

provides some examples for setting Length 1.

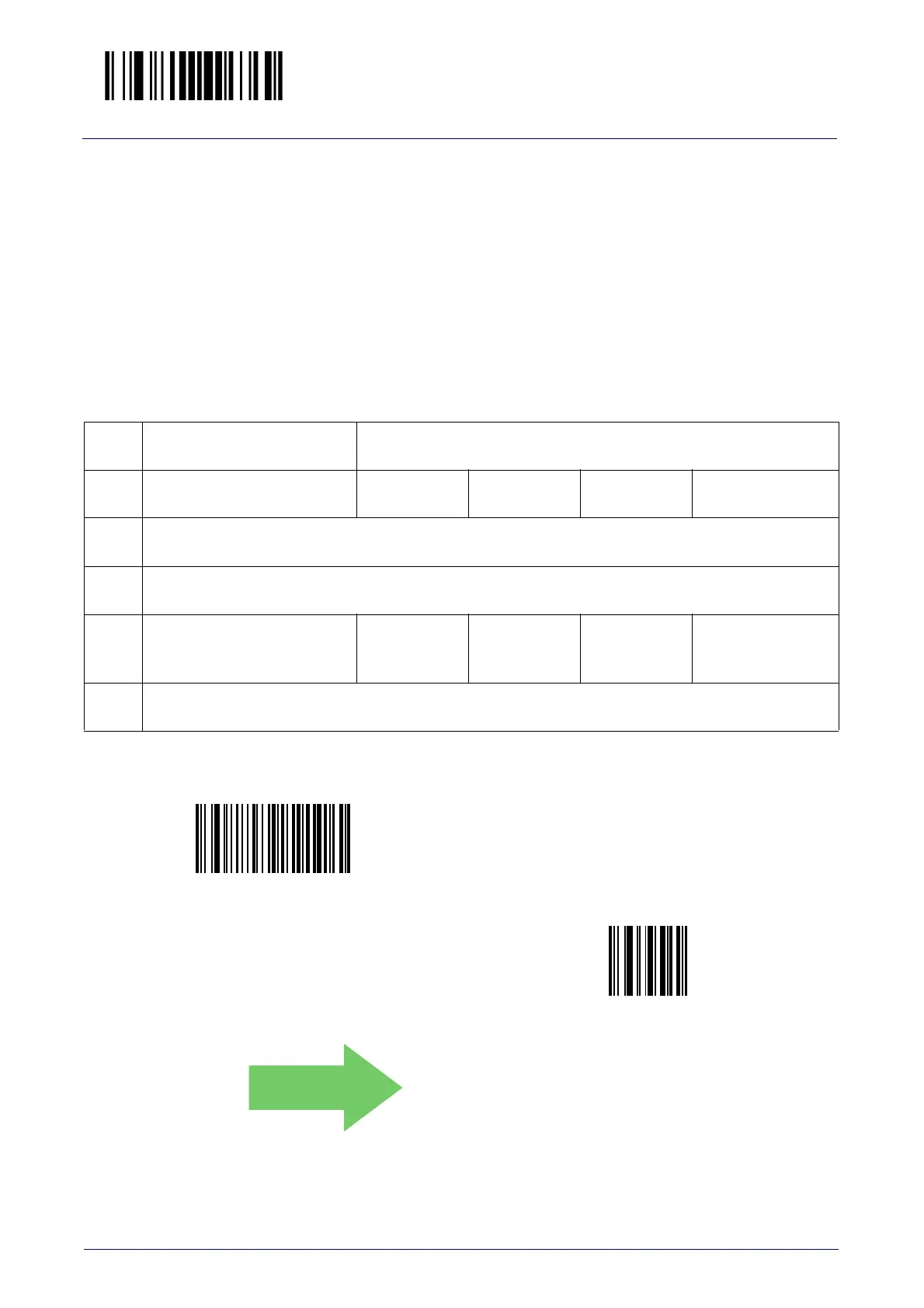

Table 3. Code 128 Length 1 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

01 Character 07 Characters 15 Characters 80 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT CODE 128 LENGTH 1 SETTING

Scan Two Characters From

Appendix C

‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘8’ and ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Code 128 Set Length 1 Setting

Make a mistake? Scan the CANCEL barcode to abort and

not save the entry string. You can then start again at the

beginning.

CANCEL

DEFAULT

01 = Length 1 is 1 Character
