Codabar Set Length 1

This feature specifies one of the barcode lengths for Codabar. Length 1 is the

minimum label length if in

Variable Length on page 93

Mode, or the first fixed

length if in

Fixed Length on page 93

Mode. Length includes the barcode’s start,

stop, check and data characters. The len

gth must include at least one data

character. The length can be set from 3 to 50 characters. For more detailed

programming instructions see, "Set Length" on

Chapter 4, References

Table 13

provides some examples for setting Length 1.

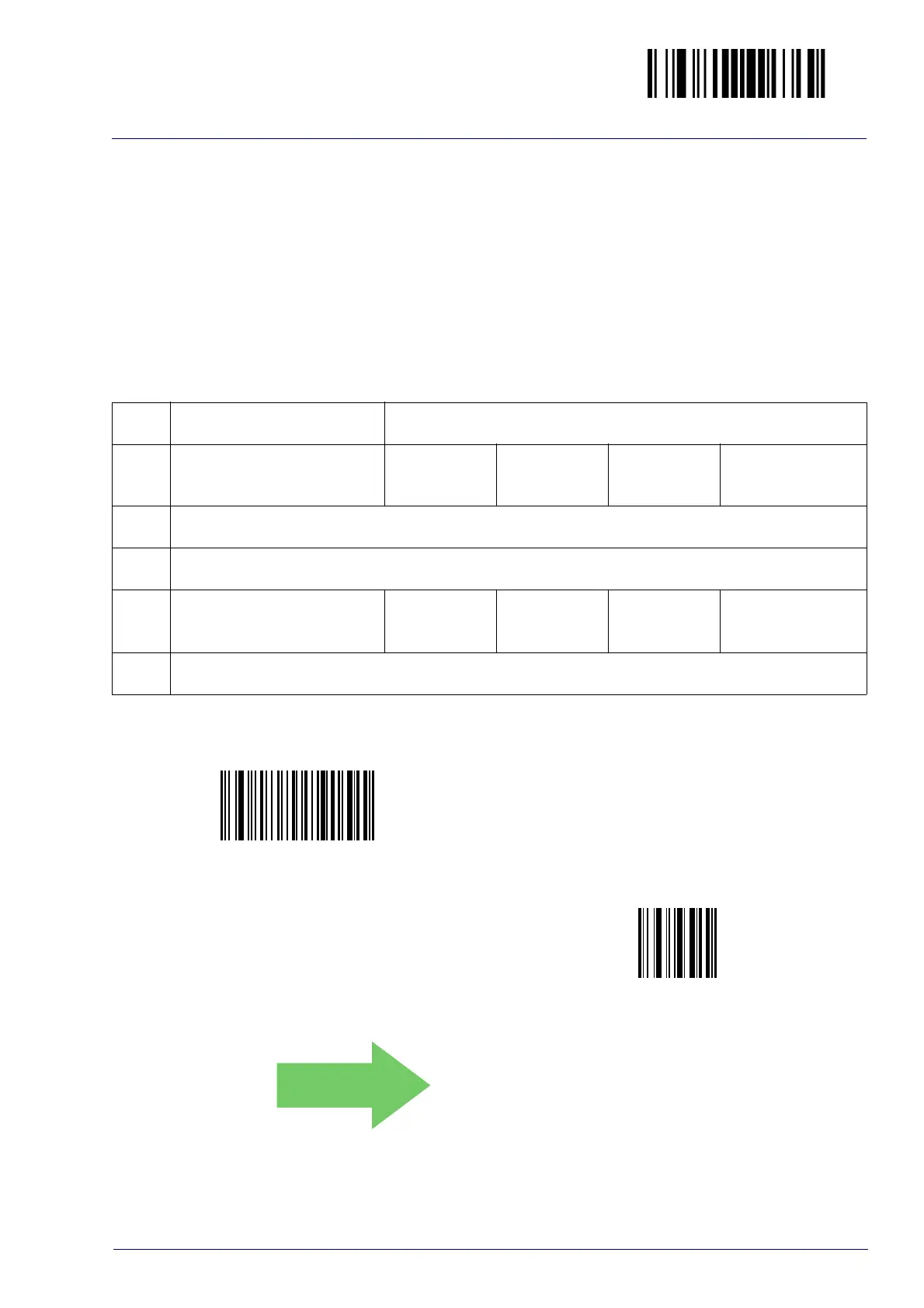

Table 13. Codabar Length 1 Setting Examples

STEP ACTION EXAMPLES

Desired Setting (and pad

with leading zeroes)

03 Characters 09 Characters 15 Characters 50 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT CODABAR LENGTH 1 SETTING

Scan Two Characters From

Appendix C

‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Codabar Length 1 Setting

Make a mistake? Scan the CANCEL barcode to abort and

not save the entry string. You can then start again at the

beginning.

CANCEL

DEFAULT

01 = Length 1 is 1 Character
